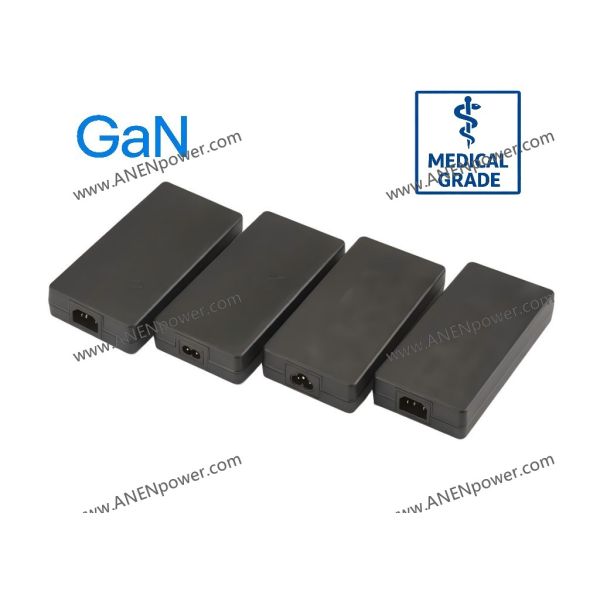

230W GaN Medical Desktop AC/DC Adapter: 24V 9.6A Ultra-High Power Solution

Product Overview

The 230W GaN Medical Desktop AC/DC Adapter is a flagship, clinical-grade power solution engineered for the most demanding medical electronics. By integrating advanced Gallium Nitride (GaN) semiconductors, this adapter delivers a massive 24V 9.6A output with unprecedented efficiency and thermal stability. It is the premier choice for Medical Imaging Systems (Ultrasound, X-ray), High-End Patient Monitors, and Surgical Robots.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN architecture enables a significant reduction in size compared to traditional silicon adapters, while maintaining an ultra-low leakage current design. This ensures absolute safety for patients and practitioners, providing a reliable, interference-free power link for life-critical diagnostic imaging and therapeutic hardware.

Key Specifications

Our 230W GaN medical series maximizes power density while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 230W Continuous Maximum.

• Standard Output: 24V 9.6A (Optimized for imaging processors and motorized surgical actuators).

• Other Available Outputs:

  • 12V 16A

  • 15V 13.3A

  • 19V 12.1A

  • 28V 8.2A

  • 36V 6.4A

  • 48V 4.8A

  • 54V 4.25A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 94%+ Efficiency and superior thermal management.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

• AC Inlet: IEC320-C14 or C6 (Desktop type with grounded or isolated options).

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 230W medical-grade output is optimized for high-power diagnostic and surgical electronics:

• Imaging Systems: Portable ultrasound machines, digital X-ray processing units, and high-resolution medical displays.

• Surgical Equipment: Motorized surgical tables, robotic surgery controllers, and high-power electrosurgical units.

• Therapy Equipment: Professional-grade high-power Therapy Units and clinical Therapy Units.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy stations.

• Diagnostic Workstations: Medical-grade PCs and high-performance bedside computing hubs.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Imaging-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, preventing electrical artifacts from distorting sensitive diagnostic images (Ultrasound/ECG).

• Advanced Thermal Management: GaN technology reduces energy loss as heat, allowing for a fanless, silent design that is ideal for sterile operating theaters and quiet patient wards.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
