Specifications
Brand Name :
JEWELLED
Model Number :
JLD-A10
Place of Origin :
China
MOQ :
1 piece sample is supported.
Price :
$50-$90
Payment Terms :
T/T
Supply Ability :
100K/month
Delivery Time :
3-5 working days for sample
Packaging Details :
1pc/bubble bag, proper qty in a carton
Product name :
Embedded Main Board JLD-A10
OS :
ANDROID 11/Linux Ubuntu
Application :
Commercial display
OEM :
Welcome
eMMC :
16G-128G
Display :
Support LVDS（dual 8，1920*1080），EDP，MIPI，HDMI
Ethernet :
10/100/1000M
Wi-Fi :
2.4G/5G WiFi BT
Description

Embedded Main Board 2.4G/5G WiFi BT Rockchip RK3566 Android Motherboard 10/ 100/ 1000M Ethernet



Description of Android Motherboard JLD-A10


The motherboard JLD-A10 supports 10/100/1000M Ethernet, enabling high-speed and stable wired network connection, ensuring real-time synchronization of terminal and cloud data, meeting the remote management and data upload needs of self-service devices, and ensuring efficient transmission of transaction records, device status, and other information. The JLD-A10 interface configuration of the motherboard is rich and practical. In terms of audio, it is equipped with a 3.5mm headphone jack, 4P1.25 headphone jack, 2P2.0 microphone jack, and 4P2.0 speaker jack, which can flexibly connect to various audio devices and support functions such as voice broadcasting and voice interaction, enhancing the human-computer interaction experience of the terminal. The diversified interface design enables it to adapt to different peripherals, such as scanners, printers, touch screens, etc., meeting the multifunctional expansion needs of self-service terminals.



Specification of Android Motherboard JLD-A10


CPU

RK3566 highest frequency up to 1.8GHZ

 GPU

ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1

OS

ANDROID 11/Linux Ubuntu

Memory card type

TF - CARD

serial port

4 in total, types option,TTL(1-4),RS232(0-3),RS485(0-2)

PCB size

140mm*91mm*1.6mm

Audio output

Stereo, support Dolby sound effect

Ethernet

10/100/1000M

TP

I2C and USB interface touch screen

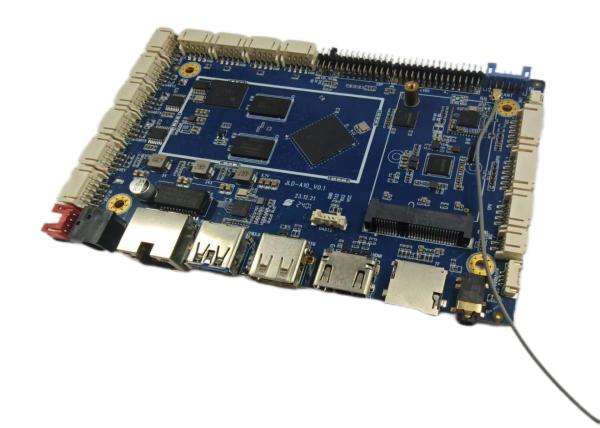

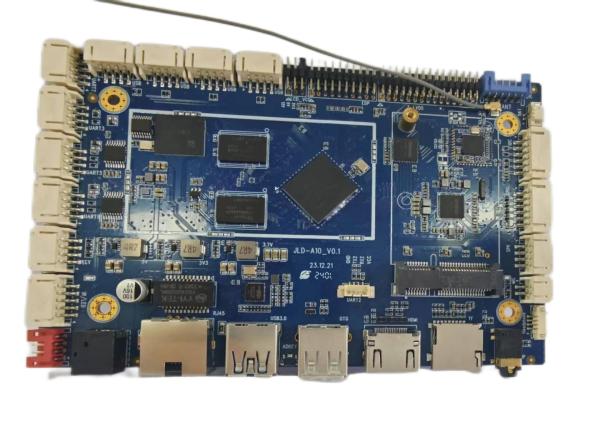

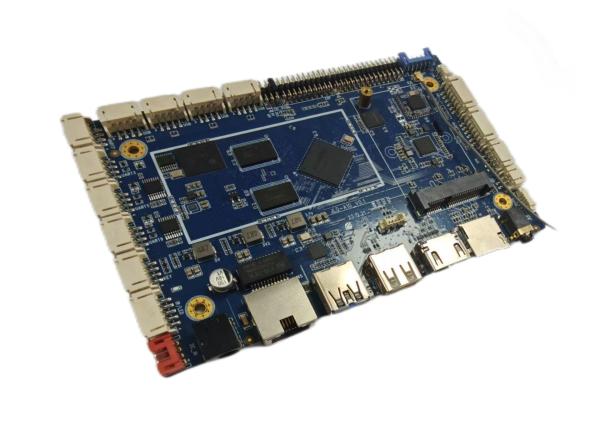

Product photos

Embedded Main Board 2.4G/5G WiFi BT Rockchip RK3566 Android Motherboard 10/ 100/ 1000M Ethernet

Embedded Main Board 2.4G/5G WiFi BT Rockchip RK3566 Android Motherboard 10/ 100/ 1000M Ethernet

Application of Android Motherboard JLD-A10

  • Advertising machine
  • All-in-one machine
  • Self service terminal
  • Queuing machine
  • Human-computer interaction machine

Embedded Main Board 2.4G/5G WiFi BT Rockchip RK3566 Android Motherboard 10/ 100/ 1000M Ethernet

Embedded Main Board 2.4G/5G WiFi BT Rockchip RK3566 Android Motherboard 10/ 100/ 1000M Ethernet


Certificate

Embedded Main Board 2.4G/5G WiFi BT Rockchip RK3566 Android Motherboard 10/ 100/ 1000M Ethernet

Customer Review

Embedded Main Board 2.4G/5G WiFi BT Rockchip RK3566 Android Motherboard 10/ 100/ 1000M Ethernet


Packing

1. At Buyer's Request
2. Inner, vacuum package
3.Outer, standard export carton;



FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
