JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board

Description of Advertising Display Board

The JLD-A10 motherboard is equipped with the RK3566 processor, which can reach a maximum frequency of 1.8GHz and has efficient computing performance with a quad core Cortex-A55 architecture. Whether it's high-definition video loop playback, dynamic advertising material loading, or multi area content synchronization display, it can easily handle it, ensuring smooth and seamless switching of advertising images, avoiding playback delays caused by insufficient processor performance, and ensuring efficient transmission of advertising information. The motherboard JLD-A10 supports dual system solutions for Android 11 and Linux Ubuntu. The Android system is compatible with various mainstream advertising applications, making it easy to quickly deploy multimedia playback software, remote control tools, and meet basic needs such as advertising content updates and device status monitoring; The Linux Ubuntu system provides a flexible environment for customized development, suitable for industry customized advertising scenarios that require secondary development, such as intelligent shopping guide advertising machines combined with facial recognition. The dual system selection greatly enhances the motherboard's scene adaptation capability. The JLD-A10 motherboard provides precise and reliable touch interaction experience, supporting touch screen connection through I2C and USB dual interfaces, and is compatible with different types of touch modules. Whether it is the touch query function of shopping mall advertising machines or the gesture operation requirements of exhibition hall interactive advertising screens, precise touch response can be achieved, ensuring real-time feedback of user clicks, swipes, and other operations, enhancing the interaction stickiness between advertising machines and audiences, and improving the effectiveness of advertising dissemination.

Specification of Advertising Display Board

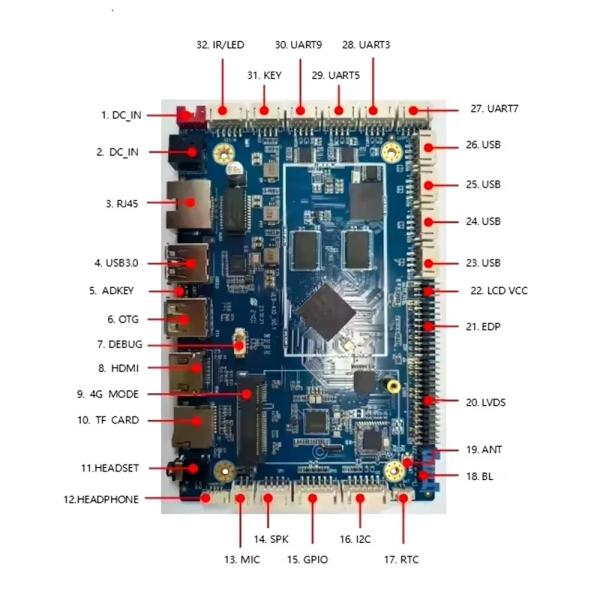

Product photos

Application of Advertising Display Board

In the field of advertising machines, the RK3566 processor (up to 1.8GHz) equipped on the motherboard can smoothly drive 4K high-definition advertising content playback, and the ARM G52 2EE graphics card ensures dynamic special effects and synchronized rendering of multi area images. The dual system support enables the mall's digital signage to quickly deploy playback software through Android, while also relying on Linux Ubuntu to achieve customized functions such as facial recognition. The I2C/USB touch interface empowers precise operation response of interactive advertising screens. ​
In all-in-one machine, the compact design of the motherboard (140mm91mm1.6mm) saves internal space and is suitable for all-in-one forms such as teaching and conferences. The combination of high-definition display performance and touch interaction capability can support multi-user simultaneous annotation operations, meeting the efficient collaboration needs of classroom interaction, remote meetings, and other scenarios. ​
In the self-service terminal scenario, the industrial grade stability of the motherboard ensures uninterrupted operation throughout the year, and the RTC clock module supports timed power on/off and power-off memory, reducing operation and maintenance costs. In self-service vending machines and government terminals, their efficient computing capabilities can quickly process payment information and user operation instructions, ensuring a smooth transaction process. ​
In the field of queuing machines, the motherboard supports real-time updates of call information through stable system operation. Its multi interface design can connect to external devices such as printers and displays, achieving queue data synchronization and ticket printing functions, and improving the efficiency of order management in service venues. ​
In terms of human-computer interaction machines, the AI computing power and touch response advantages of the motherboard are highlighted. In exhibition guides and intelligent shopping devices, it can quickly recognize user operation intentions, provide immersive interaction experience through high-definition images and voice feedback, and become the core link connecting people and devices.

Certificate

Customer Review

1. At Buyer's Request
2. Inner, vacuum package
3.Outer, standard export carton;

FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
