16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed
Specifications
Brand Name :
AMG
Model Number :
Standard/Customized
Certification :
ISO9001
Place of Origin :
China
MOQ :
3
Delivery Time :
3-7 days for standard products/7-10 days for non-standard products
Price :
Request Quote
Name :
16mm 4 Flutes Solid Carbide End Mill for Aluminium Anti Vibration High Speed CNC
Diameter :
16mm
Flute length :
110mm
Overall length :
175mm
Suitable For :
Aluminium
Type :
Customized
Description

16mm 4 Flutes Solid Carbide End Mill for Aluminium Anti Vibration

This carbide milling cutter, with a diameter of 16mm and a four-edge design, cutting edge length of 110mm and total length of 175mm. It is specifically designed for high-speed machining of aluminum and other non-ferrous metals. Use the AMG's advanced precision grinding technology, the tool has excellent balance, with minimal vibration during machining. This little of vibration effectively prevents chatter marks, ensuring a smoother machined surface and more precise dimensions.


Main application scope


High-speed CNC machining of aluminum parts

Milling of aerospace and automotive aluminum alloy parts

Machining of deep cavities and pocket structures

Manufacturing of precision aluminum molds and stamping molds

Cutting of non-ferrous metals with high requirements for surface quality


Specification Table:

Parameter Specification
Material Ultra-fine grain carbide rod
Coating DLC / TiSiN / Customized
Flute Number 4 flutes
Diameter 16mm
Flute Length 110mm
Overall Length 175mm
Helix Angle 45°
End Type Square End

Working principle


This milling cutter has 45°high helix angle design, which efficiently discharges chips, reduces cutting resistance, and minimizes heat generation during machining, making it highly suitable for high-speed aluminum processing. With 110mm long cutting edge, it can easily handle deep cavity and side milling while ensuring machining stability.


Product advantages


✅ AMG precision grinding ensures precise dimensions and stable quality

✅ Excellent dynamic balance to prevent machining vibration and chatter marks

✅ Long blade and long design, suitable for deep cavity and long-distance aluminum processing

✅ High helix angle ensures high-speed cutting and smooth chip evacuation

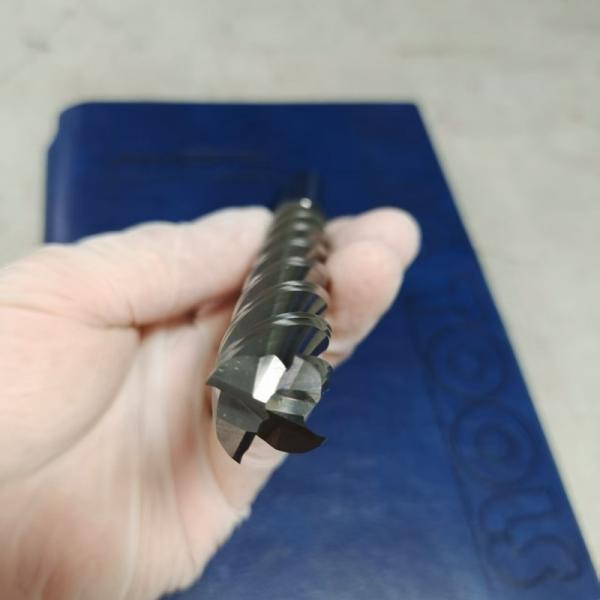

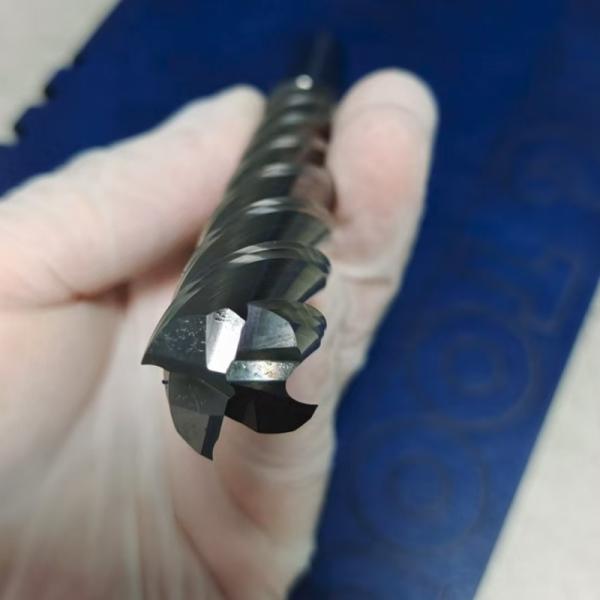

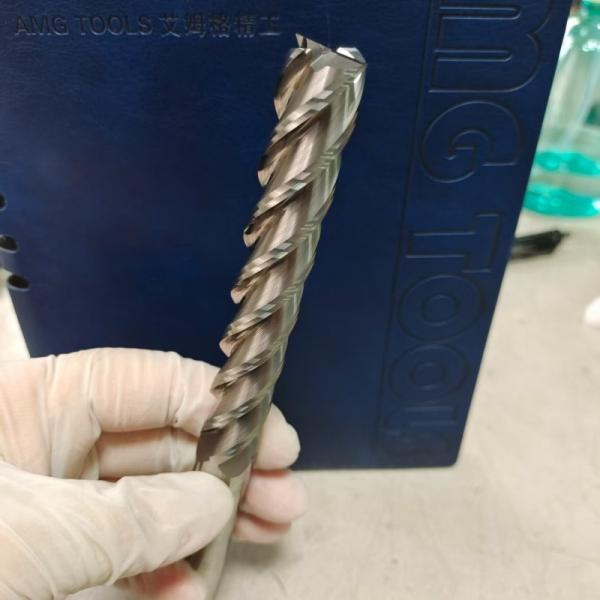

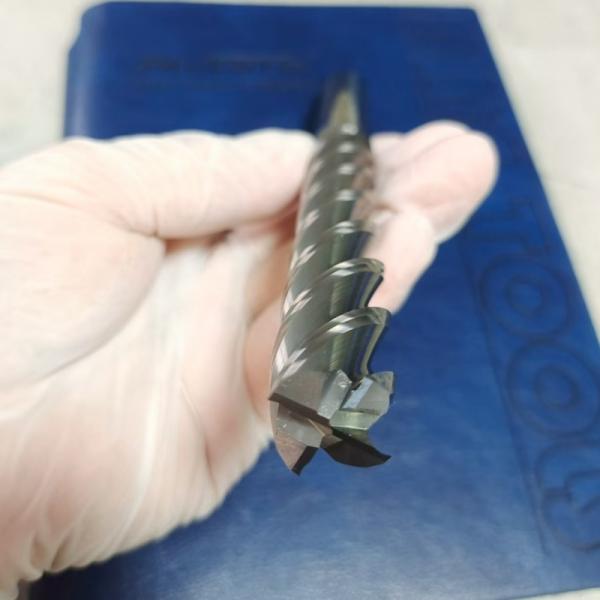

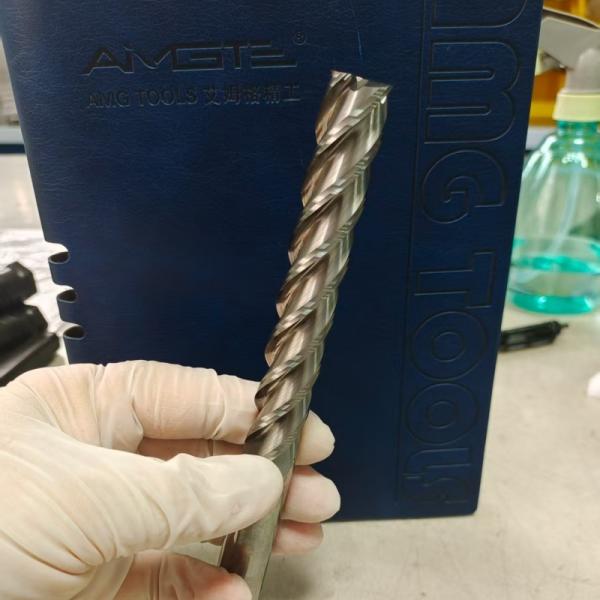

Detailed pictures:

16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed

16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed

16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed



Our workshop:

16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed

16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed

16mm 4 Flutes Solid Carbide End Mill Anti Vibration For CNC Aluminium High Speed


FAQ
Q1: Can this tool continuously perform high-speed aluminum processing?
A: Sure. The AMG 16mm four-edge carbide milling cutter is specifically designed for high-speed, continuous aluminum processing, ensuring both tool life and processing stability.
Q2: Can this tool effectively prevent machining vibration marks?
A: Yes, excellent dynamic balance and reasonable geometric design effectively avoid vibration and chatter marks, ensuring smooth machined surface.
