High-Precision Single Flute Cutter for Acrylic and Plastic Machining

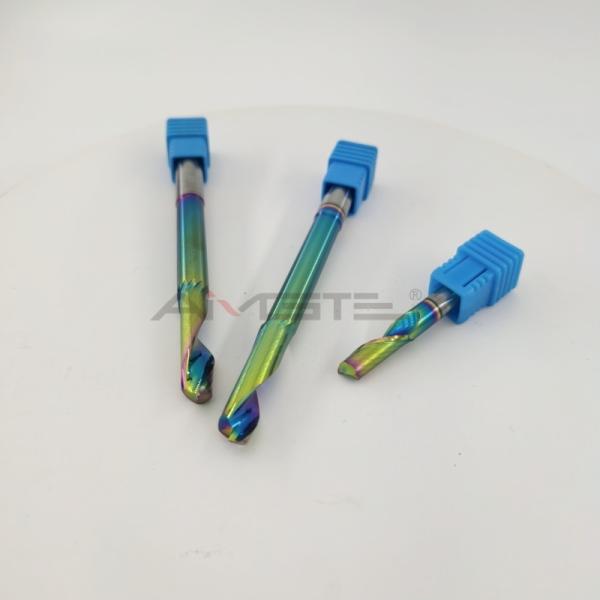

AMG single flute cutter is a high-performance tool engineered for efficient cutting and precision machining. It is widely used in fine processing applications involving plastics, non-ferrous metals, acrylic sheets, and composite materials. With a simple structure and sharp cutting edge, it offers excellent chip evacuation and superior surface finish, making it ideal for scenarios that demand high surface quality and dimensional accuracy.

Manufactured from high quality ultra-fine grain carbide material, the AMG single flute cutter is produced using advanced grinding and edge honing techniques. Its unique single flute design reduces cutting resistance, ensures smooth finishes, and reduce burr formation. It is particularly effective in CNC engraving, high-speed cutting, and thin-wall material processing.

Applications:

• Plastic mold machining

• Acrylic and PVC sheet cutting

• Thin-walled aluminum alloy milling

• Precision contour machining of small parts

Specifications (Example Table):

Tool Diameter (D)	Flute Length (L1)	Shank Diameter (D2)	Overall Length (L2)	Material
3.175mm	12mm	3.175mm	38mm	Carbide (HM)
6mm	20mm	6mm	50mm	Carbide (HM)
8mm	25mm	8mm	60mm	Carbide (HM)

Working Principle:
The AMG single flute cutter operates at high spindle speeds. The single-edge design reduces the tool-material contact area, fast heat dissipation and reducing overall cutting load. This ensures smooth and efficient cutting process, especially for soft and transparent materials.

Advantages:

• Ultra-sharp edge ensures clean, glossy cuts

• Reduces melting or edge burning during processing

• Efficient chip removal enables high-speed operations

• Excellent wear resistance and extended tool life

• Available in various sizes with support for customer specifications

FAQ:

Q1: Which transparent plastics are compatible with this cutter?
A: It is suitable for materials such as acrylic, PMMA, polycarbonate (PC), polystyrene (PS), and PVC.

Q2: Is it compatible with desktop CNC machines?
A: Yes, it fits most commercial CNC engraving and cutting machines.

Q3: Does it require coolant during machining?
A: Air cooling is recommended to maintain surface quality and cutting stability.
