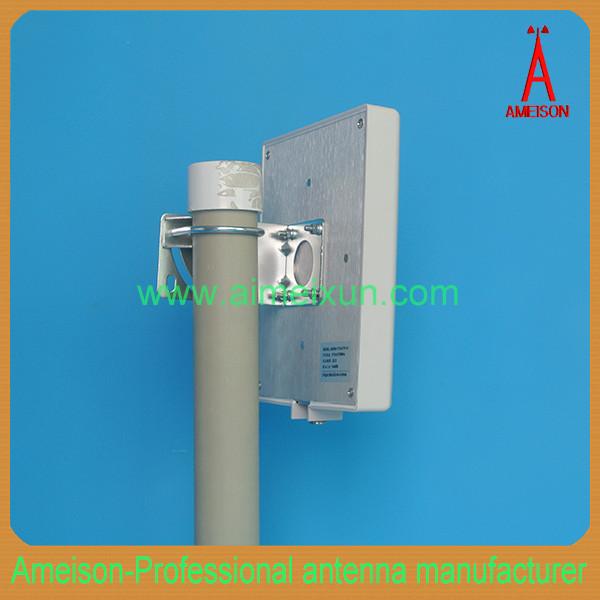

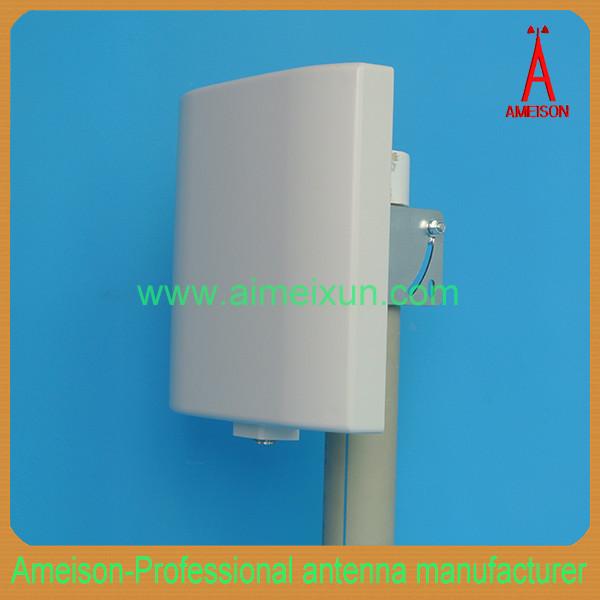

Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Outdoor/Indoor 5.8GHz 18dBi High Performance Flat Patch Antenna WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-5800-18
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
5725-5850
Bandwidth（MHz） :
125
Gain（dBi） :
18
Half-power beam width（°） :
H：20 V：20
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

Ameison 5.8 GHz Panel Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

5725-5850MHz Directional Wall Mount Antenna

AMXW-5800-18

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

5.8 GHz WLAN system

5.8 GHz ISM band

Public wireless hot spot coverage

AMXW-5800-18

Electrical Specifications

Frequency range(MHz)

5725-5850

Bandwidth(MHz)

125

Gain(dBi)

18

Half-power beam width(°)

H:20 V:20

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

225*195*47

Antenna weight(kg)

0．8

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

￠35～￠50
