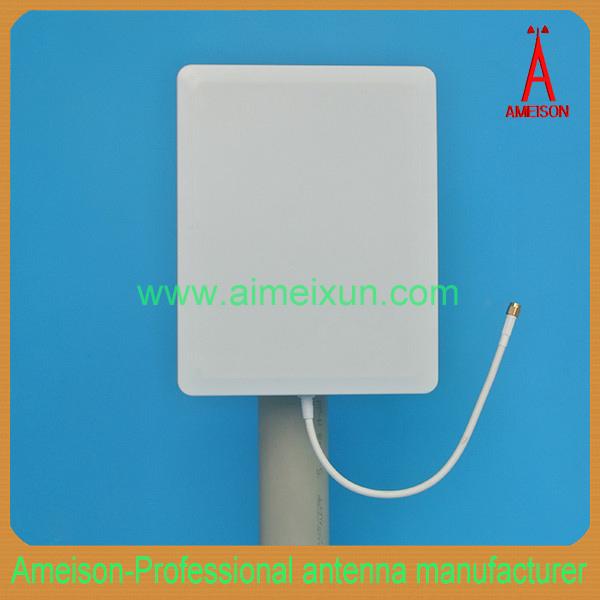

Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Ameison Outdoor/Indoor 5.8GHz 14dBi High Performance WLAN WiFi Flat Patch Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-5800-14A
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
5725-5850
Bandwidth（MHz） :
125
Gain（dBi） :
14
Half-power beam width（°） :
H：30 V：30
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
SMA Male or Requested
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

5.8GHz WiFi Panel Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

5725-5850MHz Directional Wall Mount Antenna

AMXW-5800-14A

Feature:

High gain

Strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

5.8 GHz WLAN system

5.8 GHz ISMband

Public wireless hot spot coverage

AMXW-5800-14A

Electrical Specifications

Frequency range(MHz)

5725-5850

Bandwidth(MHz)

125

Gain(dBi)

14

Half-power beam width(°)

H:30 V:30

Front-to-back ratio(dB)

≥27

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

SMA Male or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

140*120*25

Antenna weight(kg)

0.3

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

￠35～￠50
