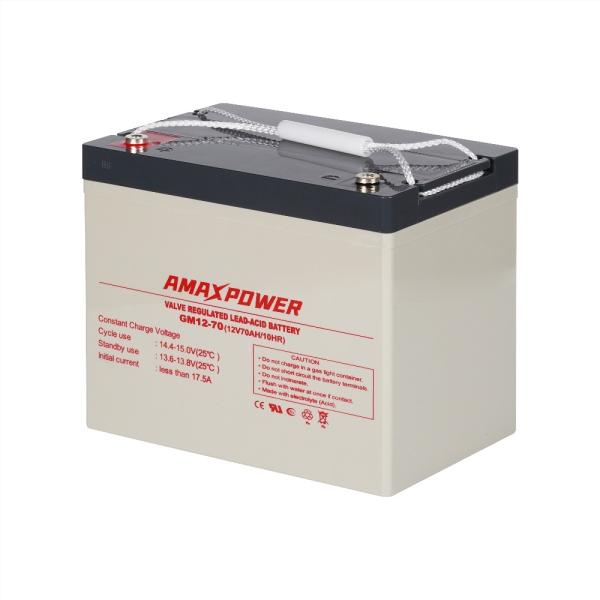

12V 70Ah UPS Backup Battery Deep Cycle Solar Panel Battery VRLA AGM
12V 70Ah UPS Backup Battery Deep Cycle Solar Panel Battery VRLA AGM
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
GM12-70
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Model :
GM12-70
Type :
UPS Battery
Electrolyte :
Acid
Voltage :
12V
Capacity :
70Ah
Dimension :
260*169*211*215mm
Weight :
20.5kg
Terminal :
T3
Color :
Silver+Black
Usage :
UPS, Electric Power, Lighting, Electric Bicycle, Boat
Discharge Rate :
Low Discharge Rate
Description

Amaxpower 12V 70Ah VRLA AGM Deep Cycle Solar UPS Battery

Amaxpower UPS Battery 12V 70Ah Deep Cycle Solar Gel Battery for UPS and Power System

AMAXPOWER GM Series VRLA AGM Battery, is free maintenance sealed lead acid batteries designed with AGM technology. High performance plates and electrolyte give extra power output for common power backup system, widely used in the fields of UPS, Security and Emergency lighting system.

1. Good quality AGM separator, increase battery service life.

2. High purity raw material, low self-discharge rate, long life expectancy of 10 years in floating condition.

3. Wide operating temperature range from -15°C to 45°C.

4. Heat sealing technique instead of glue sealing, to increase the tightness and stability of battery.

5. Unique corrosion resistance grid alloy, long service life, maintenance-free operation.

6. Tight assembly technology, high efficiency discharge performance.

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 70Ah@10 hour-rate
Dimension Length 260±1(10.2 inches)
Width 169±1(6.65 inches)
Height 211±2(8.30 inches)
Total Height 215±2(8.46 inches)
Weight Approx. 20.5kg (45.2lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (3.7A) 74Ah
10 hour rate (7.0A) 70Ah
5 hour rate (12.6A) 63Ah
3 hour rate (18.7A) 56Ah
1 hour rate (45A) 45Ah
Max. Discharge Current (25°C/77°F) 455A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 7.0mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 17.5A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -20~50°C
Charge 0~50°C
Storage -20~50°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

-Electric Powered Vehicles -Golf Cars and Buggies

-Wheel Chairs -Power Tools

-Electric Powered Toys -Control System

-Medical Equipments -UPS Systems

-Solar and Wind -Emergency Systems
