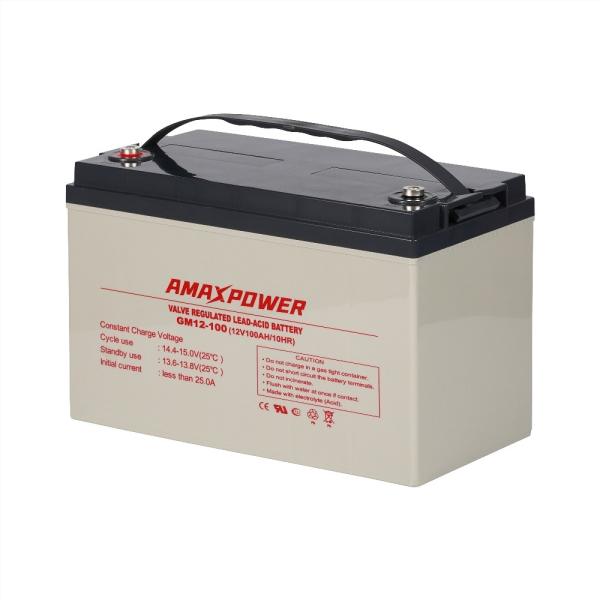

27.5kg UPS Backup Battery Boat 12v 100ah Lead Acid Battery 10A
27.5kg UPS Backup Battery Boat 12v 100ah Lead Acid Battery 10A
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
GM12-100A
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Type :
UPS Batteries
Electrolyte :
Sulfuric acid
Voltage :
12V
Capacity :
100Ah
Dimension :
331*173*214*220mm
Weight :
27.5kg
Terminal :
T3
Color :
Silver+Black
Usage :
UPS, Electric Power, Lighting, Boat, Solar, Wind, Storage
Application :
UPS, Electric Power, Lighting, Boat, Solar, Wind, Storage
Description

Amaxpower 12V 100Ah Deep Cycle Gel Storage Battery for UPS/Solar Lighting(12V 100Ah)

China UPS Backup Battery Solar Gel Deep Cycle Sealed Lead Acid Battery for Power Storage Battery

Newest in 2016, AMAXPOWER patented High Temperature Solar Deep Cycle long life Gel battery, best choice to work in hot/cold temperature sites and maintain long service life over 15years.

AMAXPOWER start the research and produce sealed free maintenance AGM and GEL storage batteries. Our batteries are always in the process of innovation according to market and environment: AGM battery→GEL battery→High Temperature Long Life Deep Cycle GEL battery.

1. Good quality AGM separator, increase battery service life.

2. High purity raw material, low self-discharge rate, long life expectancy of 10 years in floating condition.

3. Wide operating temperature range from -15°C to 45°C.

4. Heat sealing technique instead of glue sealing, to increase the tightness and stability of battery.

5. Unique corrosion resistance grid alloy, long service life, maintenance-free operation.

6. Tight assembly technology, high efficiency discharge performance.

Applications of UPS Battery:

1.Solar and wind energy storage system

2.EPS and UPS battery backup

3.Signal system , emergency lighting system , security system

4.Telecommunication Equipment

5.Power source for portable devices or tools

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 100Ah@10 hour-rate
Dimension Length 331±1(13.03 inches)
Width 173±1(6.81 inches)
Height 213±2(8.39 inches)
Total Height 220±2(8.66 inches)
Weight Approx. 27.5kg (60.6lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (5.3A) 105Ah
10 hour rate (10A) 100Ah
5 hour rate (18A) 90Ah
3 hour rate (26.7A) 80Ah
1 hour rate (65A) 65Ah
Max. Discharge Current (25°C/77°F) 600A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 5.5mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 25A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -20~50°C
Charge 0~50°C
Storage -20~50°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

-Electric Powered Vehicles -Golf Cars and Buggies

-Wheel Chairs -Power Tools

-Electric Powered Toys -Control System

-Medical Equipments -UPS Systems

-Solar and Wind -Emergency Systems
