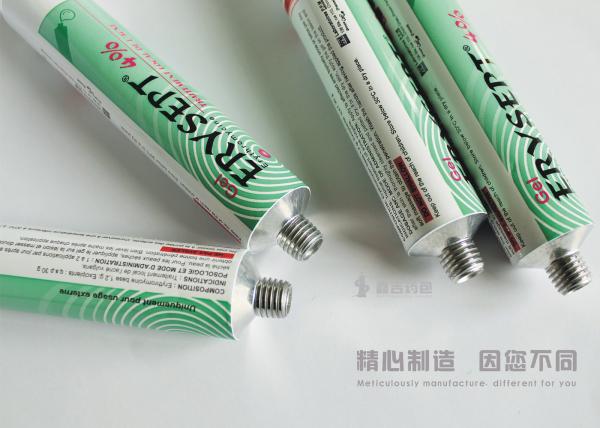

Customized Printed Empty Cream Tubes , 13.5 Mm - 40 Mm Dia Aluminum Ointment Tubes
Customized Printed Empty Cream Tubes , 13.5 Mm - 40 Mm Dia Aluminum Ointment Tubes
Specifications
Brand Name :
Xinji
Model Number :
Dia. 13.5mm - Dia. 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Material :
Aluminum
Origin :
Hubei, China
Color of printing :
Up to 6 colors
Artwork :
Customized
Name :
Aluminum collapsible tube
Usage :
Cosmetics, Medicine, Food, etc.
Description

Cream Aluminum Tube , Aluminum Packaging Tubes , Customized Printed Tubes For Cream Packaging

Nearly 40 years experience in packaging design, develop and manufacture. We are the 3rd largest manfuacturer in collapsible aluminum tube industry. In our factory,we have professional quality control personnel in every production department. Their job is to check the products quality in every step of the processes.

Description:

1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum＞99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel; Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.
8. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.

Diameter Dia 13.5mm-40mm
Capacity 5ml-300ml (0.27oz-13oz)
Length adjusted within the range of tube capacity (5ml to 300ml)
Layer mono-layer to five layers tube
Shape round,oval,super flat
Tube color white, transparent,colored
Printing 1-6 colors printing
Cap Flip top cap, screw on cap
Usage Cosmetic, Pharmaceutical, Health & Beauty industries
Packaging card board tray and carton with plastic bag inside

British Standard of Aluminum Collapsible Tube BS2006-1984

Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle

Quality

Nearly 40 years experience in packaging design, develop and manufacture.

Strong R&D team, customized-products. 100% QC inspection before delivery, high quality with very competitive price. 90% of our products are exporting to oversea market, top service and timely delivery.
