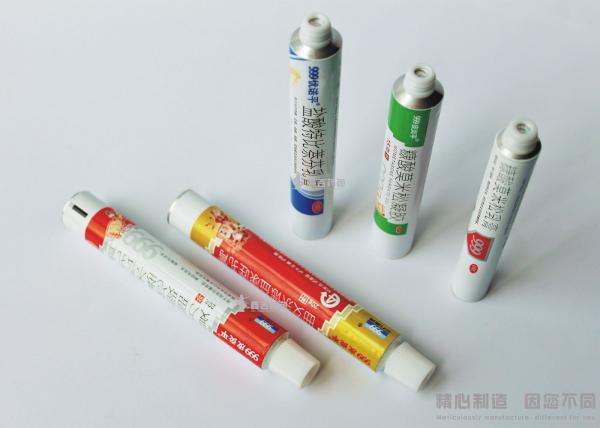

Aluminum Squeeze Tube Packaging , BS2006-86 3 - 200 Ml Metal Squeeze Tubes
Aluminum Squeeze Tube Packaging , BS2006-86 3 - 200 Ml Metal Squeeze Tubes
Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm - 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Raw Material :
99.7% pure aluminum
Color :
Up to 6 colors
Name :
Collapsible Aluminum Tubes
Certificate :
ISO, CFDA
Standard :
BS2006-86
Diameter :
13.5mm~40mm
Description

Flexible Aluminum Cream Tubes , Aluminum Packaging Tubes , Collapsible Tubes

Main Features:

Tube Diameter Dia 13.5mm - 40mm (length can customize)
Tube Capacity 3-200ml
Aluminum Slug Aluminum＞99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Cap Color-white/red/blue/yellow; material-HPPE

British Standard (BS2006-86):

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5

Our advantages:

  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.
  • Moreover, our salers will always be responsible for the quality and details, they need to pay great attention for his/her production instead of clients.

Our quality system


ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)
