Anodized Industrial Aluminium Profiles for High Performance Heat Sink Electronic Shell Parts 110x110 Mm
Anodized Industrial Aluminium Profiles for High Performance Heat Sink Electronic Shell Parts 110x110 Mm
Anodized Industrial Aluminium Profiles for High Performance Heat Sink Electronic Shell Parts 110x110 Mm
Anodized Industrial Aluminium Profiles for High Performance Heat Sink Electronic Shell Parts 110x110 Mm
Specifications
Brand Name :
KaiLun
Model Number :
KL-H5318
Certification :
ISO/TS16949,SGS,ROHS...
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
3 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminium Heatsink Section
Shape: :
Square
Deep Process: :
Cutting, Milling, Drilling, Punching,CNC,etc
OEM/ODM: :
Available
Key words :
High Performance Electronic Part Shell
Alloy or not: :
Alloy
Description

110X110 MM Extrusion Aluminium Heat Sink for High Performance Electronic Part Shell

Item Detail:

Name: Aluminium heat sink

Size:

110*110MM

Weight:

5.56kg/m

Material:

 6005, 6063, 6061, etc.
Surface Treatment:

silver anodizing

Coating Thickness:

10 - 15 um

Length:

 1 - 6 M

Standard:

EN 755,CB/T 6892,SGS

Certification:

ISO/TS16949 : 2009

Deep Processing:

cutting,drilling,punching,etc

Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...


Specifications:

1) Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest


2) Mechanical property

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa

≥ 8%

Section shape:

I, U, T, C, Z, L, H, square, round, flat, hollow, t-slot, and other complicated shapes by custom design.

Surface treatment:

Mill finish/ Anodizing/ Sand blasting / Powder Coating / Electrophoresis / PVDF Coating / Wood grain.

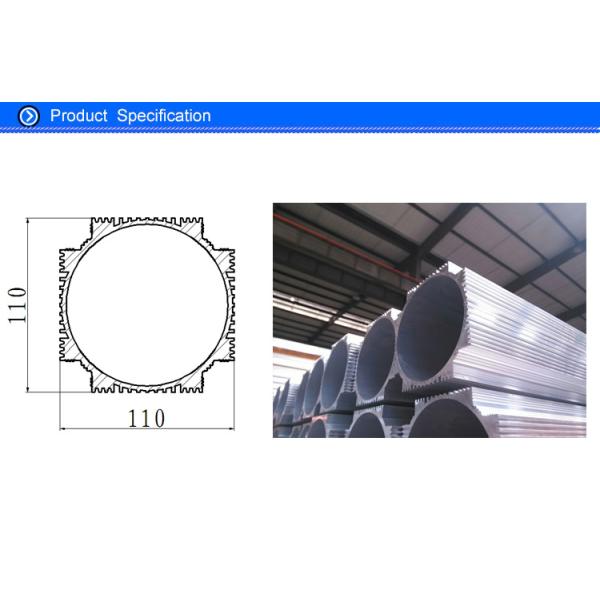

Heat Sink Drawing:

Anodized Industrial Aluminium Profiles for High Performance Heat Sink Electronic Shell Parts 110x110 Mm

FAQ:

Question1: What’s the thickness for anodizing? Can you do 15um?

A: Our normal thickness is about 10 um. Yes, we can do 15um and above.

Question2: What color you can do for powder coating? What about the thickness?

A: We can do any color for powder coat as long as you can provide the color

sample. Our normally powder coating thickness is 60-80um.

Question3: What certification do you have? What’s your standard?

A: We have ISO / TS 16949:2009, SGS & ROHS certification.

Our standard is DIN, AAMA, AS/NZS, China GB.

Question4: What’s the payment terms?

A: Usually by T/T, 30% deposit and the balance paid before shipment.
