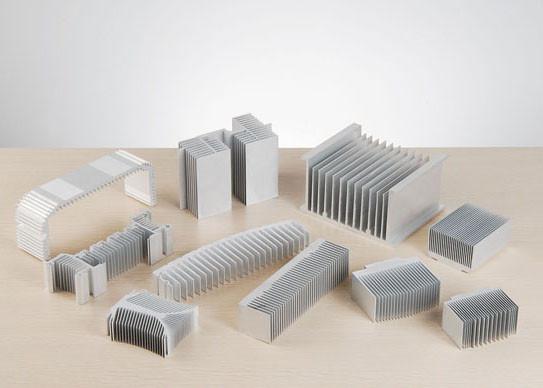

Computer heatsink extrusion profiles With Aluminum Alloy 6063 -T5 Material
Computer heatsink extrusion profiles With Aluminum Alloy 6063 -T5 Material
Computer heatsink extrusion profiles With Aluminum Alloy 6063 -T5 Material
Computer heatsink extrusion profiles With Aluminum Alloy 6063 -T5 Material
Specifications
Brand Name :
KaiLun
Model Number :
KL-H180
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminium Radiator
Application: :
Computer Heat Sink
Shape: :
Comb Plate
Material :
Aluminum Alloy 6063 -T5
Market: :
Global
Description

High Power Extruded Aluminum Alloy Fin Profiles as Computer Heat Sink

Item Parameter:

Name:

Aluminum radiator

Size:

299.4*57.2mm

Weight:

14.8kg/set

Material:

 6005, 6063, 6061, etc.
Surface Treatment:

silver anodizing

Coating Thickness:

10 - 15 um

Length:

as customer's requirement

Standard:

EN 755,GB/T 6892,SGS

Specification of Computer Heat Sink:

No. Item Content
1 Designation 6000 series or designated
2 Temper T4 - T6
3 Standard AAMA, ASTM, ANSI, JIS, EN, GB
4 Surface Treatment Mill finish, Anodized, Powder Coating, Wood Grain, Electrophoretic Coating, PVDF Coating, etc.
5 Length 1 - 7m
6 Circumscribing Circle Up to 300mm
7 Thickness 1 - 10mm
8 Color All kinds of color
9 Package Each tube with individual plastic bags, and then bundled by weaving bags, which are sea-proof.

Chemical composition of typical 6063 series aluminium alloy

Designation Si Mg Fe Cu Mu Zn Cr Ti Others Al
Minimum
Each Total
6063 0.20-0.60 0.45-0.9 ≤0.35 ≤0.10 ≤0.10 ≤0.10 ≤0.10 ≤0.10 ≤0.05 ≤0.15 Rem.

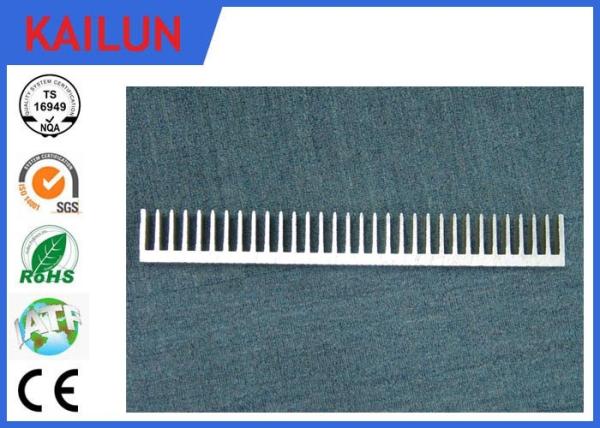

Product Drawing:

Flow Chart:

Product design→Die Making→IQC→Extruding→Cutting→Heat Treatment→Harder Test

→Surface Treatment→Coating Test→Finish Processing→Packing→Shipping→After Sale Service

Capabilities:

* Custom Machining
* 3D/CAD Modeling and Print Generation
* Aluminum Extrusion
* Cut Linear Rails
* Full Assembly Capability
* Expert Machinists, 25+ Years Tool & Die Experience
