1P104S Brazing Battery Liquid Cooling Custom Cold Plates For Energy Storage Systems
1P104S Brazing Battery Liquid Cooling Custom Cold Plates For Energy Storage Systems
1P104S Brazing Battery Liquid Cooling Custom Cold Plates For Energy Storage Systems
1P104S Brazing Battery Liquid Cooling Custom Cold Plates For Energy Storage Systems
Specifications
Brand Name :
Trumony
Model Number :
1P48s
Certification :
ISO9001
Place of Origin :
Suqian city
MOQ :
10
Price :
$200-$250
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
5-6weks
Packaging Details :
wooden box
Material :
3003aluminum，Q235steel
Surface treatment :
Powder coating，Anodizing
cells :
280/314ah
Module :
1P52/1P48S Battery pack
Pressure drop :
15kpa
Charging and discharging rate :
0.5C
Description

Product Overview

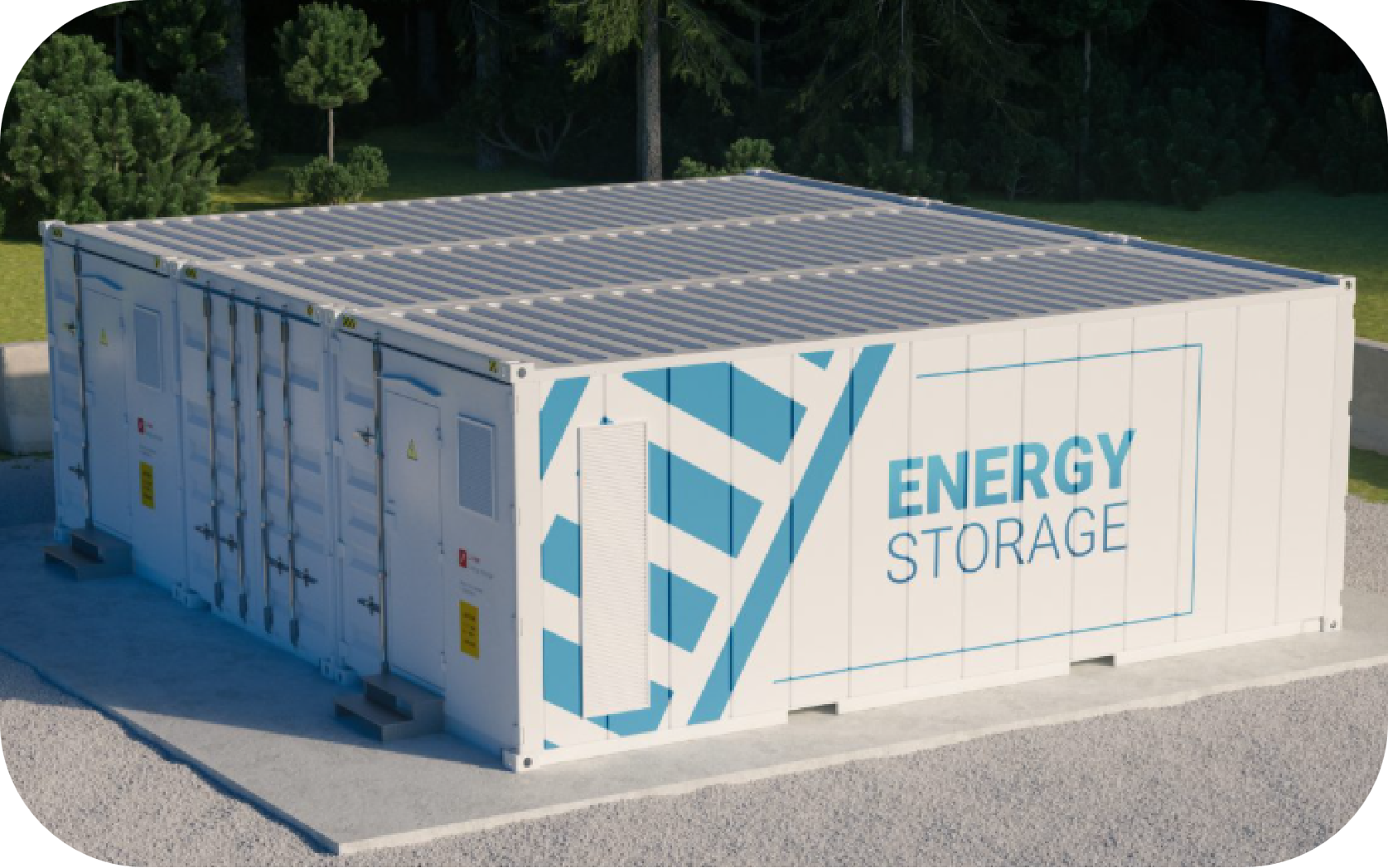

As energy storage systems (ESS) evolve toward higher capacity and tighter integration, thermal management becomes a decisive factor in system safety, performance stability, and lifecycle economics. The 104S ESS cooling plate is purpose-built to address the heat dissipation demands of 314Ah high-voltage battery packs, aligning with the 104-series (~400V) architecture widely adopted in containerized ESS. This standardization facilitates seamless grid integration while ensuring thermal uniformity across increasingly dense battery configurations.

Technical Specifications:

Performance parameter unit
Alloy 3003mod /
Cells 280/314 ah
Temperature difference 3~5 ℃
Flow resistance 15 Kpa
Charge and discharge rate 0.5 c
Application Energy storage battery pack

Key features:

  • Optimized coolant flow channel design
  • High thermal conductivity aluminum material
  • Uniform temperature distribution
  • Reliable brazing technology
  • High pressure resistance

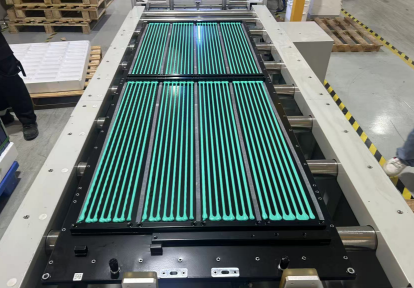

Our cooling plates are designed to effectively remove heat generated by battery modules and maintain optimal operating temperatures.

1P104S Brazing Battery Liquid Cooling Custom Cold Plates For Energy Storage Systems1P104S Brazing Battery Liquid Cooling Custom Cold Plates For Energy Storage Systems

Why Choose Us

  1. Large production capacity - ensures stable supply
  2. Complete process - fully controllable throughout, fast delivery
  3. High professionalism - rich experience, high project success rate
  4. Excellent single-process performance - cost-effective, high quality
  5. Can be optimized with standard models - low development cost, fast delivery

FAQ

Q1:Is this enclosure suitable for 1P52S Module energy storage systems only?
A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.
Q2:What else can we offer?
A2:The box body and related products such as top cover ,end plate and pipelines are available.
Q3:MOQ
A3In fact, there is no (MOQ). Customized samples can also be provided.
Q4:What technical capabilities do we have?
A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation
Q5:General delivery time
A5:The sample stage: 40 -45 days.Mass production stage: 35 days
