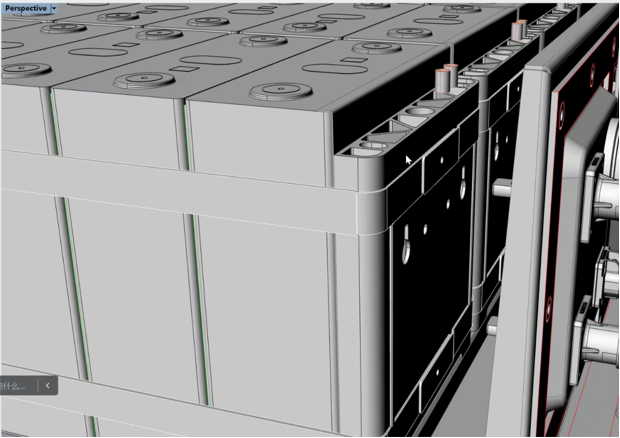

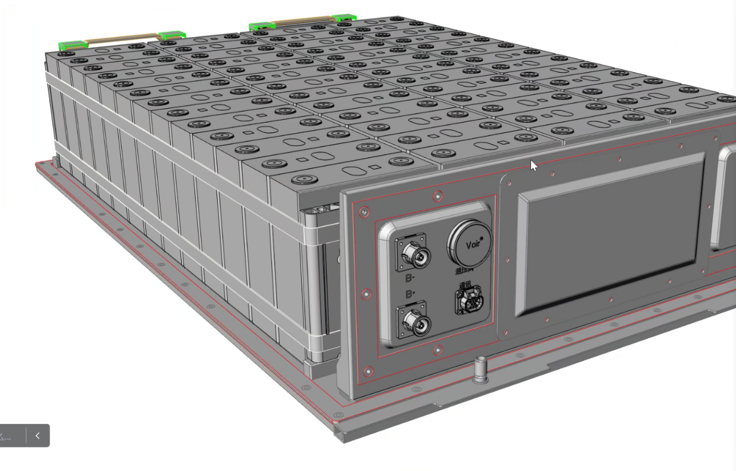

ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame
ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame
ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame
ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame
ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame
ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame
Specifications
Brand Name :
Trumony
Model Number :
1P48s
Certification :
ISO9001
Place of Origin :
Suqian city
MOQ :
100
Price :
$120-150
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
5-6weks
Packaging Details :
wooden box
Material :
3003aluminum，Q235steel
Surface treatment :
Powder coating，Anodizing
cells :
280/314ah
Module :
1P52/1P48S Battery pack
Pressure drop :
15kpa
Charging and discharging rate :
0.5C
Description

Product Overview

This liquid cooling plate is specially designed for energy storage battery packs. Made of high-quality aluminum alloy for excellent heat conductivity, it is precisely matched to 1P48S configuration and 314 cells, while the integrated steel frame enhances structural stability and load-bearing capacity. It efficiently dissipates heat to maintain stable battery temperature, ensuring long-term reliable operation of energy storage systems.

Technical Specifications:

Performance parameter unit
Alloy 3003mod /
Regular size flow plate 1.2 mm;flat plate 1.5 mm;flow height 3mm mm
Temperature difference 3~5 ℃
Flow resistance 15 Kpa
Charge and discharge rate 0.5 c
Application Energy storage battery pack
ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame

Applications

Industrial and commercial energy storage systems

Grid-scale energy storage power stations

Wind and solar energy storage systems

Microgrid energy storage projects

Large-scale stationary battery energy storage systems

Backup power and UPS energy storage solutions

New energy power generation supporting energy storage

Why Choose Us

1. Large production capacity - ensures stable supply
2. Complete process - fully controllable throughout, fast delivery
3. High professionalism - rich experience, high project success rate
4. Excellent single-process performance - cost-effective, high quality
5. Can be optimized with standard models - low development cost, fast delivery

FAQ

Q1:Is this enclosure suitable for 1P52S Module energy storage systems only?

A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.

Q2:What else can we offer?

A2:The box body and related products such as top cover ,end plate and pipelines are available.

Q3:MOQ

A3In fact, there is no (MOQ). Customized samples can also be provided.

Q4:What technical capabilities do we have?

A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation

Q5:General delivery time

A5:The sample stage: 40 -45 days.Mass production stage: 35 days
