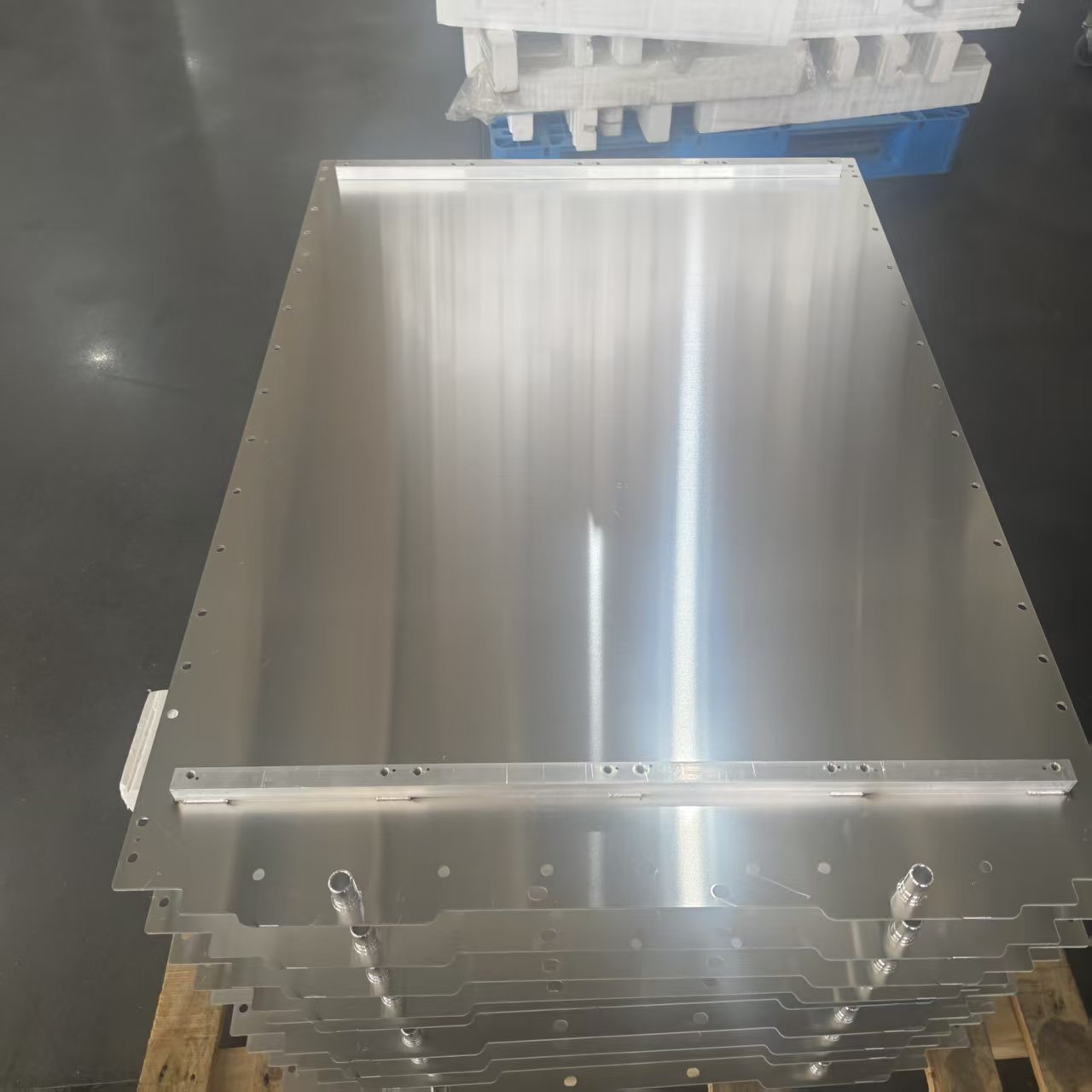

Aluminum Powder Coated Bottom Cooling Plate 1P52S for ESS Battery Pack 1050x620mm

Trumony aluminum powder coated bottom cooling plate 1p52s for ess battery pack 1050x620mm is a stamped, vacuum-brazed and powder-coated aluminum bottom cooling plate engineered for energy storage battery packs. Integrating a leak-free liquid-cooling channel directly beneath the cells, it provides uniform heat dissipation for 1P52S packs — keeping cells within their optimal temperature range during fast charging and high-rate discharge, and helping ESS integrators extend pack life and safety.

Key Features

• Manufactured by precision stamping, vacuum brazing and black powder coating for durable, leak-free performance.
• Integrated liquid-cooling channel (parallel) delivers uniform heat dissipation for 1P52S energy storage packs.
• Lightweight 3003 aluminum alloy reduces pack weight while maintaining structural strength.
• Powder-coated surface resists corrosion, abrasion and electrical tracking in harsh environments.
• Helium leak and 1.5 MPa pressure tested on every unit for zero-leak reliability.
• Custom channel layout, overall dimensions and inlet/outlet positions available.

Technical Specifications

Applications

• 1P48S and 1P52S energy storage battery packs
• Containerized BESS and prefabricated storage cabins
• Commercial and industrial energy storage systems
• Grid-scale energy storage racks

Why Choose Trumony

• In-house stamping, vacuum brazing, powder coating and CNC machining for full process control.
• End-to-end support from design and simulation to prototyping and mass production.
• ISO 9001:2015 certified quality management with helium leak and pressure testing on every unit.
• Proven export experience serving customers in more than 56 countries.

FAQ

Q: Which battery packs is this bottom cooling plate suitable for?
A: It is designed for 1P48S and 1P52S energy storage battery packs (current sample: 1P52S); other configurations available on request.

Q: What manufacturing processes are used?
A: Precision stamping, vacuum brazing and powder coating, followed by helium leak and 1.5 MPa pressure testing.

Q: Can you customize dimensions and cooling channel design?
A: Yes. We provide design, simulation and rapid prototyping based on your drawings.

Order Now

Contact Trumony today for a quotation, technical drawings or samples of this 1P52S bottom cooling plate — our team responds within 24 hours.
