4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor
Specifications
Brand Name :
RuiYi
Model Number :
1050
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 Ton
Price :
US$2000-US$3300 Per ton
Supply Ability :
1000 Ton per month
Delivery Time :
25 working days
Packaging Details :
wooden pallets
Material :
Aluminium
Alloy name :
1050 aluminum sheet
Patterns :
Diamond, tread, 3 bars, 5 bars
Thickness :
1.2 mm - 7.0 mm
Width :
100 mm - 1650 mm
Length :
500 mm - 16000 mm
Application :
Floor
Description

Aluminum Diamond Plate 1050 manufacturer tread plate 4 " x 8 " for floor

1050 aluminum sheet belongs to commercially pure wrought family with a purity of 99.5% Aluminum. Except Al, 0.4% of Fe is added to 1050 aluminum sheet, thus, it has high electrical conductivity. 1000 series aluminum group offers the best correction resistance compared to any alloy group, so does the 1050 aluminum sheet

Surface: mill finish, brushed, anodized, polished etc.
Standard: GB, EN, ASTM, DIN
Factory Certificate: ISO9001
Packing: seaworthy wooden pallet or customized

Loading Port: Shanghai, Ningbo, Tianjin, Qingdao

1050 4x8 diamond aluminum plate sheets structure novel, non-slip effect. Light weight, excellent durability. The quality of about 7kg per square meter, the tensile strength of 200N per square millimeter, aluminum extension of high relative elongation higher than 10%, can withstand high bending without breaking, good toughness.

Specification of 1050 4x8 diamond plate sheets
Temper H*2,H*4,T4,T6
Thickness(mm): 1.2-7.0
Widthness(mm): 100-1650
Length(mm) : 500-16000

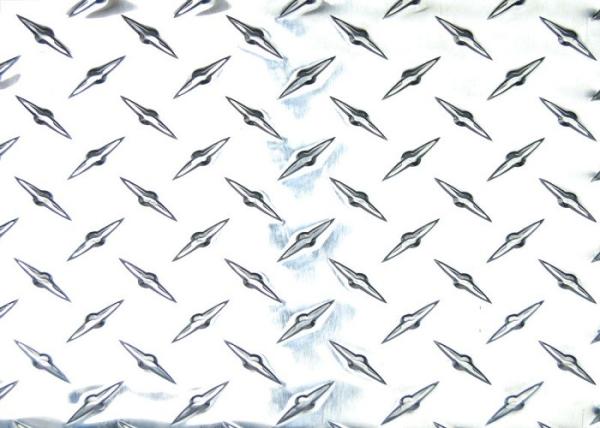

Diamond plate, also known as checker plate, tread plate and Durbar floor plate, is a type of metalstock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless

Alloy available: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill/Emboss/Diamond/2bar/3bars/Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.

Please contact us for more details

4x8 Aluminum Diamond Plate Customized 1050 Aluminum Plate For Floor

Chemical Analysis of aluminum alloy diamond plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
