RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
RuiYi 3003 Aluminum Diamond Plate 0.25 X 24 X 24 ASTM B209-10 Standard
Specifications
Brand Name :
RuiYi
Model Number :
3003 H22
Certification :
ISO9001, ASTM B209
Place of Origin :
China
MOQ :
5 Ton
Price :
US$2100-US$3300 Per Ton
Supply Ability :
1000 Ton Per Month
Delivery Time :
30 working days
Packaging Details :
pallets
Material :
aluminium alloy 3003
Temper :
H14, H22
Thickness :
.025" or customize
Dimension :
24" x 48" or customize
Finish :
Mill, Brite, Polish,Bright
Surface :
PE film
Pattern :
Diamond, Tread, 5 bars, 1 bars
Application :
Truck box, Ramps, Walkways
Standard :
ASTM B209-10
Description

Find commercial China Aluminum Diamond Plate manufacturers .025" x 24" x 24"

Find commercial China Aluminum Diamond Plate manufacturers - Select 2018 high quality Aluminum Diamond Plate products in best price from certified Chinese supplier

Diamond aluminium treads plate, have good anti-skid function, good looks, good corrosion resistance and oxidation resistance. In general, the use of the side of the mechanical properties of the plate, the mechanical performance is not high, so the quality of pattern plate mainly for flower pattern flower rate, pattern height, pattern height difference.
Diamond aluminum tread plate structure novel, non-slip effect. Light weight, excellent durability. aluminum extension of high relative elongation higher than 10%, can withstand high bending without breaking, good toughness.
Diamond aluminium tread plate common alloy: 1060, 1100, 3003, 3105, 5052, 5083, 5754, 6061, 6063, 6082

Temper: H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, O

application of diamond aluminium plate:

In the transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields are widely used.

Alloy:1050 1060 1070 1100 3003 5052
Partterns: Bright diamond ,One,Two,three,Five Bar
Temper:O-H112
Thickness:0.1-10mmm
100% Aluminum
Easy to cut with tin snips
Bends easily around a soft curve
Has PVC protection for shipping and installation puposes
Rolls for shipping

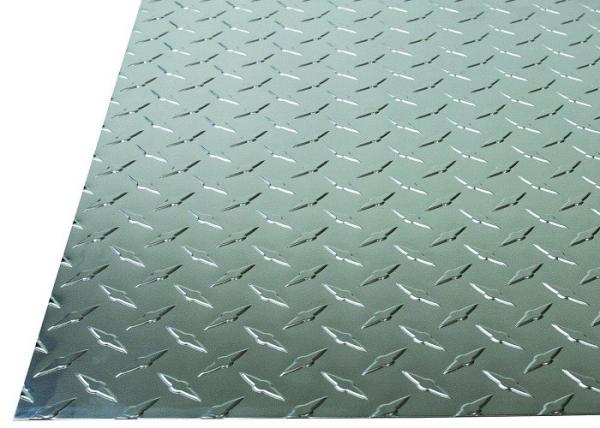

Aluminum diamond plate Brite Finish sheets are pressed aluminum sheets bearing a raised diamond pattern on one side. They are weather and corrosion proof and easy to clean, as well as being skid-resistant. This makes them suitable for a wide variety of applications, indoors and outdoors. It is also known as tread plate, checker plate, durbar plate. It is a type of aluminum metal sheet with a pattern of raised diamonds or lines on the front side. These sheets are perfect for protective and decorative wall panels, wainscoting applications and trailer usage.

RuiYi 3003 Aluminum Diamond Plate 0.25

Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
