Vertical 24V Maglev Wind Generator Wind Solar Hybrid Street Light System
Vertical 24V Maglev Wind Generator Wind Solar Hybrid Street Light System
Specifications
Packaging Details :
Plywood
Delivery Time :
15 working days
Height / Diameter :
1.23/1.09m
Model Number :
HECO-300
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Supply Ability :
10000 sets per month
Brand Name :
Honor Eco
Certification :
CE ISO9001 IEC
Payment Terms :
T/T
Weight :
27kg
Survival Wind Speed :
65m/s
Product Name :
Maglev Wind Generator
Description


Vertical 24V Maglev Wind Generator Wind Solar Hybrid Street Light System



1. Brief to 300w wind turbine


The HECO series of vertical axis Maglev Wind Generator undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.


Maglev Wind Generator Rated power Approx. 300W at 13 m/s (26 mph)
Swept Area 0.8 m2
Height / Diameter 1.23/1.09 m
Weight 27 kg
Shipping Dimensions 1160 x 520 x 790 mm 56 kg
Startup Wind Speed 1 m/s (2.6 mph)
Voltage 12, and 24 V AC
Turbine Controller Smart Wind $ solar hybrid controller
Body Permanent mold cast aluminum
Blades (7) Injection-molded aluminum
Alternator Permanent maglev generator
Overspeed Protection 3 phases short-circuit braking control
Survival Wind Speed 65m/s
Mount Inner diameter 80MM 140mm outer diameter
Wind Speed Operating Range 1-15 m/s (8-49 mph)
Optimum Wind Speed Range (RPM) 8-10 m/s ( 750-800RPM)



2. Feature:

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Maglev Wind Generator Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db

3. Application :

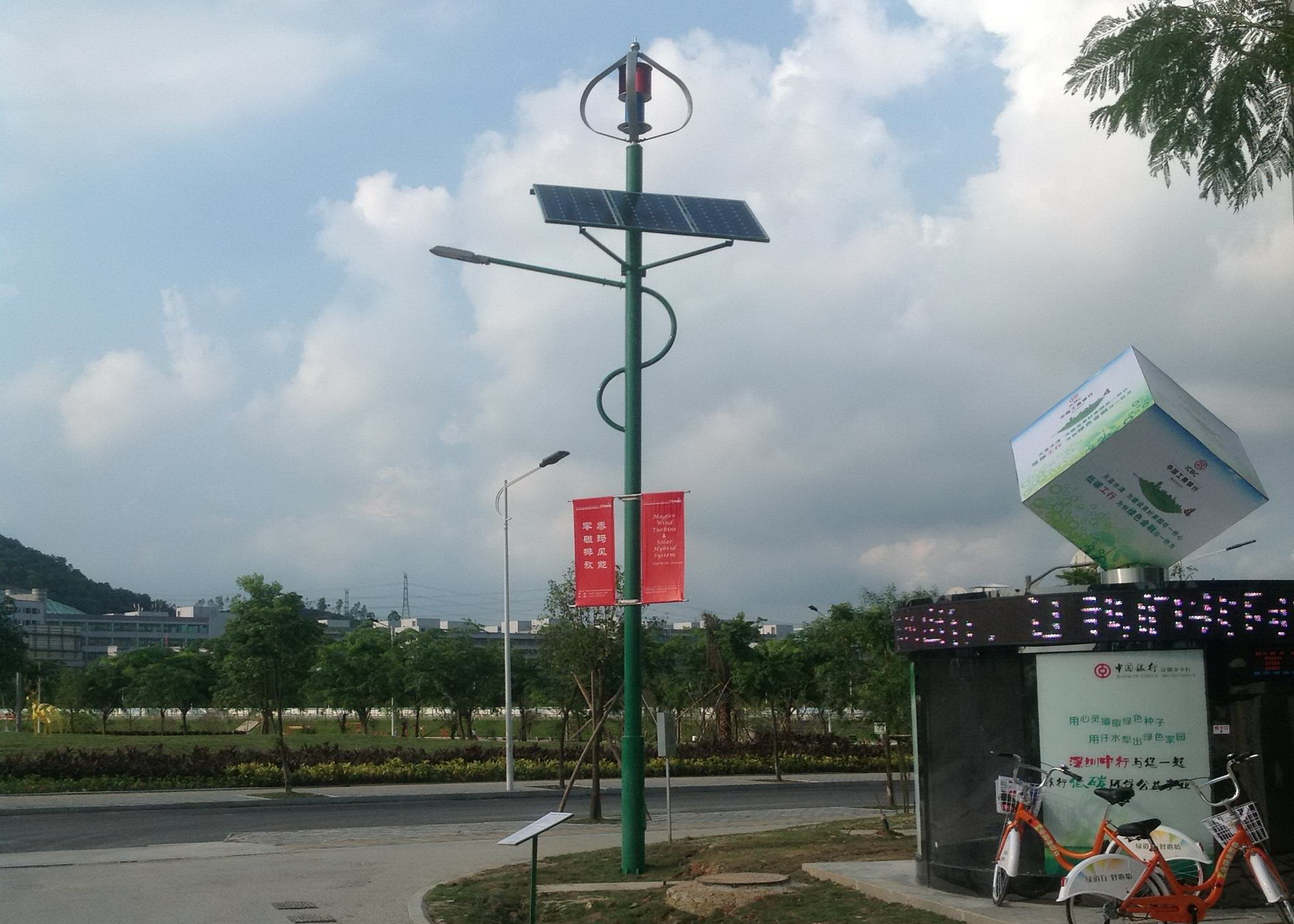

The 300w Maglev Wind Generator, 12V and 24V for option, is ideal for wind solar hybrid street lights or LED light for parking lots. The unit provides a durable, reliable, and fully customized hybrid solution to wind solor hybrid power systems.
