Roof Mounted VAWT Maglev Vertical Axis Wind Turbines For The Home
Roof Mounted VAWT Maglev Vertical Axis Wind Turbines For The Home
Specifications
MOQ :
1
Packaging Details :
Plywood
Color :
Red & blue, Sliver and customrized
Certification :
CE ISO9001 IEC
Supply Ability :
5000 sets per month
Price :
Negotiable
Delivery Time :
25 working days
Payment Terms :
T/T
Model Number :
HECO-600
Rated power :
600W
Place of Origin :
Shenzhen, China
Brand Name :
Honor Eco
Noise :
Less than 40dB
Product Name :
Maglev Wind Generator
Description


Roof Mounted VAWT Maglev Vertical Axis Wind Turbines For The Home



1. Quick Detail:

  • Name :HECO-600 Vertical Axis Maglev Wind Generator
  • Application :street lighting system and Home Use
  • Color:Red & blue, Sliver and customrized

2. Description:

The HECO series of vertical axis Maglev Wind Generator undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.


3. Applications:

The 600w-24V/48V wind turbine is ideal for both of residential and commercial applications as well as off grid and on grid power systems. The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms Base Receiver Station (BTS), Charging Station by Solar and wind and also very suitable for power supply to home.



4. Main Features:

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Maglev Wind Generator Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db


5. Specifications


Maglev Wind Generator Items HECO600
Rated power 600W
Dimension (Height/Diameter) Ø1540mm / 1320mm
Weight 50 kg
Blade material Aluminum Alloy
Blade quantity 7 (3 Darrieusand 4 Savonius)
Swept area ㎡ 0.30
Min starting wind speed 1.3 m/s
Cut-in wind speed 3.5m/s
Rated wind speed 13m/s
Cut-off wind speed 15m/s
Survival wind speed 60m/s
Generator type AC,3Phases
Controller Output Voltage 24V/48V
Controller Braking System 3-phase short circuit by NFB brake
Ambient Temperature -40～50 ℃
Noise Less than 40dB
Annual Energy Production (@ 5 m/s wind speed ) about 1500 kWh

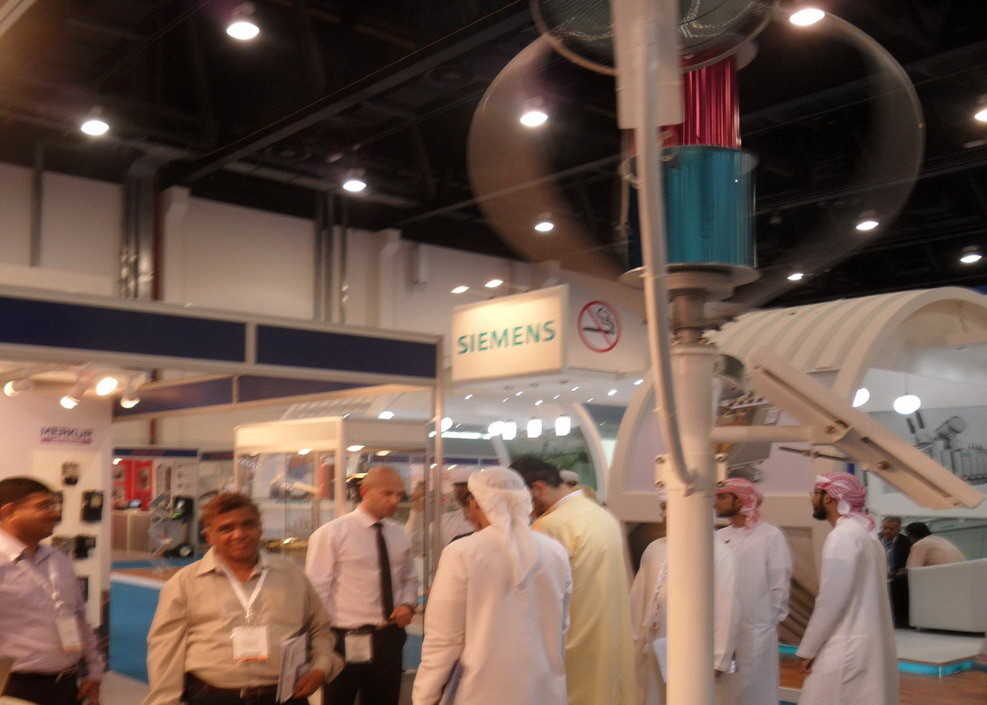

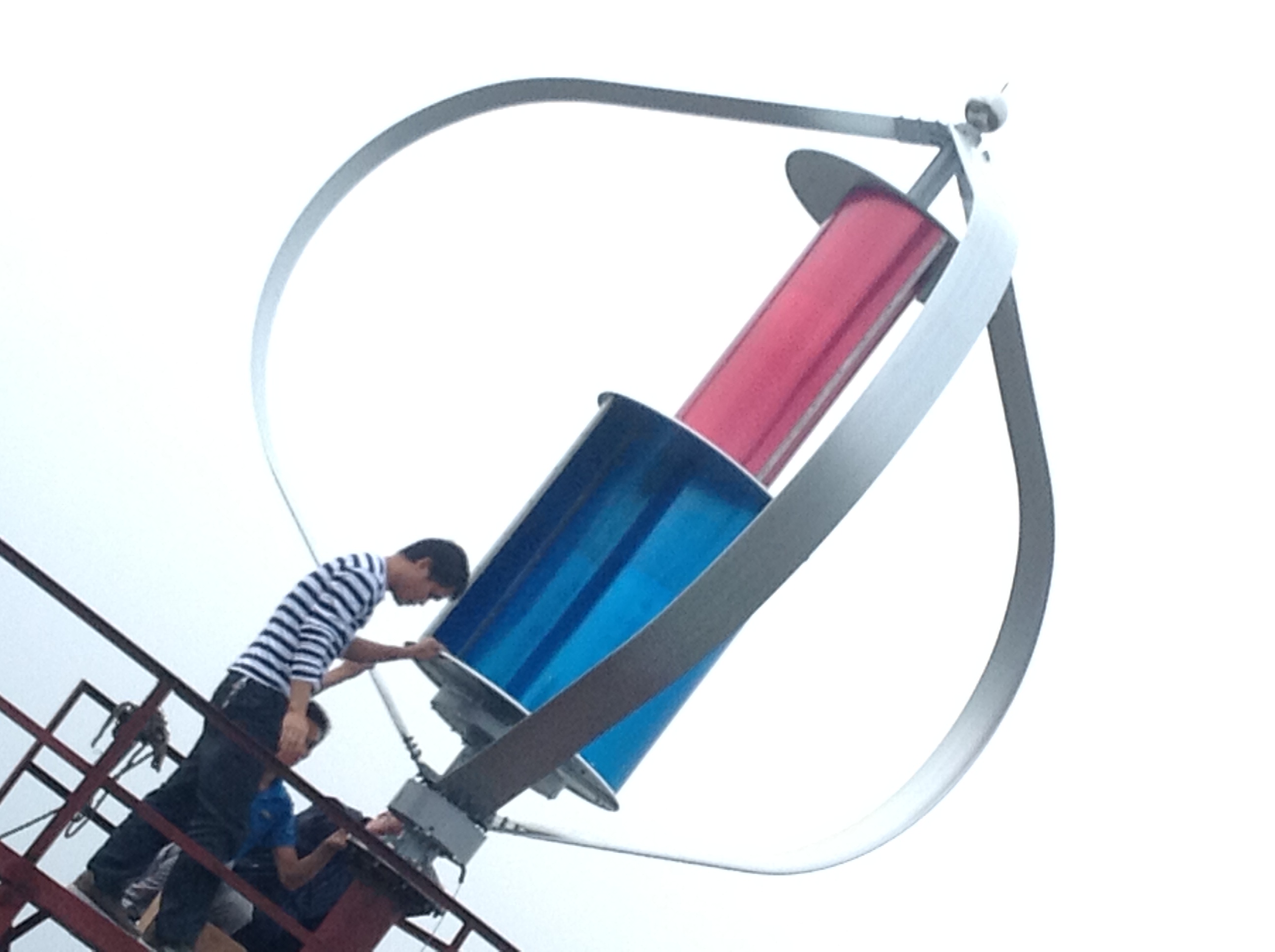

6. Maglev Wind Generator Pictures :
