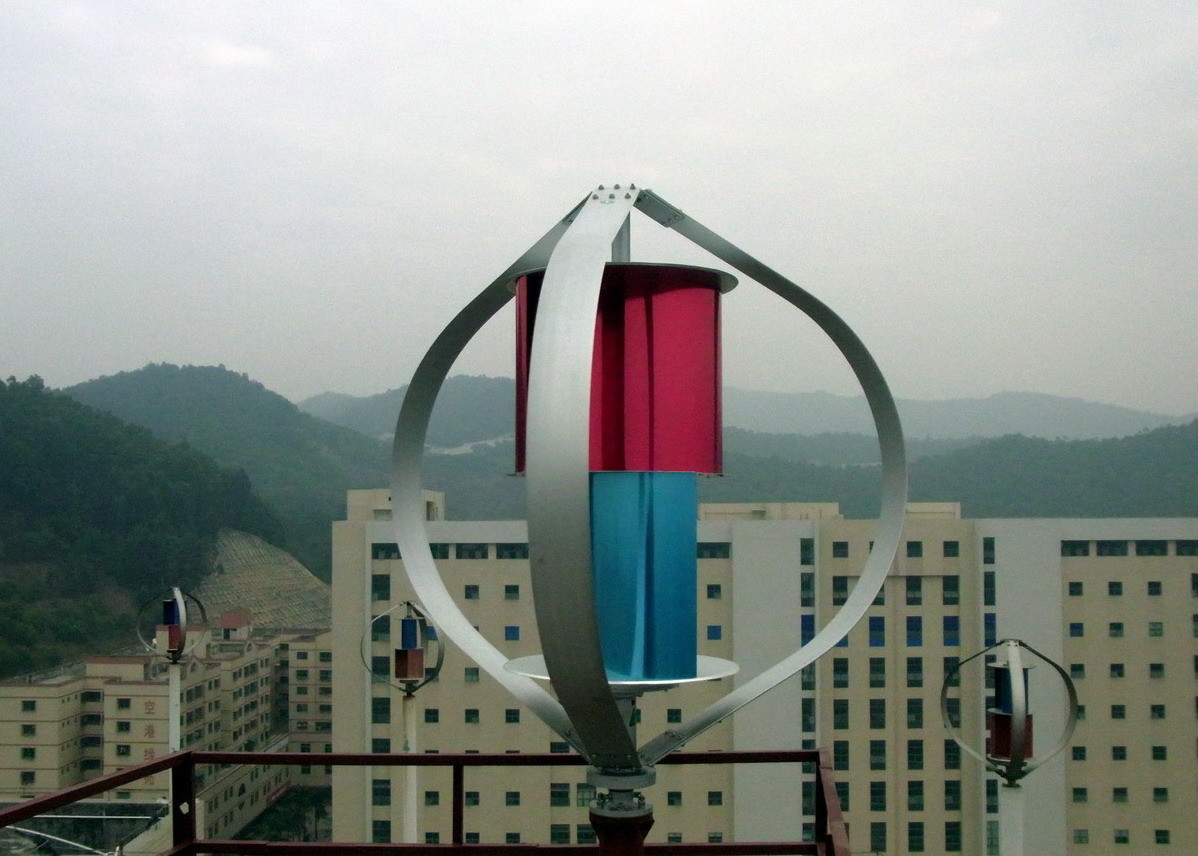

Office / House Small Maglev Vertical Axis Wind Turbine High Efficiency
Office / House Small Maglev Vertical Axis Wind Turbine High Efficiency
Office / House Small Maglev Vertical Axis Wind Turbine High Efficiency
Office / House Small Maglev Vertical Axis Wind Turbine High Efficiency
Specifications
Place of Origin :
China
Delivery Time :
15 days after received full payment
Rooftop :
Installation instruction
Model number :
CXF-600W vertical axis maglev wind turbine
Diameter :
1.32M
MOQ :
1
Supply Ability :
1000 sets/month
Material :
Aluminum alloy
Height :
1.35M
Price :
Negotiable
Life span :
More than 20years
Blades Qty :
3
Certification :
CE,ISO,IEC61400
Weight :
42KG
Brand Name :
Honor Eco
Packaging Details :
Wooden case
On / Off grid :
Optional
Model Number :
HECO-600W
Brand name :
Honor Eco
Payment Terms :
T/T,L/C,Western Union,Money Gram
color :
Red and blue or customerized
Description

Office / House Small Maglev Vertical Axis Wind Turbine High Efficiency


Quick Detail:


1, No Vibration-Means you can mount anywhere including on your house roof

2, No Noisy-Means quiet enjoyment of living

3, No Frication-Means the equipment lasts longer due to no wear & tear

4, Low start-up wind speed-Means higher average power output

5, No rust - use Aluminum Alloy material, technical treatment by DACROMAT

6, No fade- after anti-oxidation treatment

7, Strong adaptability-means can be used for land, beaches, weak offshZore wind

Regional power, lighting etc.


Description


Roof top installation is easy for farmers, and we have competive solution for the application. With our rich exeprience, hope can help more electricity shortage countries solve residential independent power.


The HECO series of maglev vertical axis wind turbine undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.


Honor Eco maglev wind generator have 6 models, 200W, 300W, 400W and 600W, 1KW, 3KW are for hybrid street lighting, remote site monitoring, home use, telecom station or any place need independent power.



Specification



Maglev Vertical Axis Wind Turbine

Type

HECO200

HECO300

HECO600

HECO1000

HECO3000

Rated Power

200W

300W

600W

1000W

3000W

Size(Height / Diameter)

1035/1150mm

1090/1240mm

1320/1540mm

2200/2400mm

3370/3700mm

Turbine Weight

22.5KG

31KG

49KG

180KG

415KG

Blades Material

Aluminum alloy

Aluminum alloy

aluminum alloy

aluminum alloy

aluminum alloy

Blades Qty.

3

3

3

3

3

Start-up

wind speed

1m/s

1.3m/s

1.3m/s

1.5m/s

1.5m/s

Cut in

wind speed

2m/s

3m/s

3m/s

5m/s, 3.5m/s

3.5m/s

Rated Wind Speed

13m/s

12m/s

13m/s

13m/s

13m/s

Cut out Wind Speed

16m/s

15m/s

15m/s

15m/s

15m/s

Survival Wind Speed

60m/s

65m/s

65m/s

60m/s

60m/s

Generator Type

AC,3 phases

AC,3 phases

AC,3 phases

AC,3 phases

AC,3 phases

Controller output voltage

DC12V

DC24V/12V

DC24V/12V/48V

DC48V/24V

DC48/96V

Controller output current

<12Amp

<20Amp

<30Amp

<50Amp

<130Amp

Controller braking system

3-Phase /short circuit protection/ NFB/

Manual break or automatic brake optional

Ambient Temperature

-30～50 ℃

-40～50 ℃

-40～50 ℃

-40～50 ℃

-40～50 ℃


Application:


The practical appication of the Maglev Vertical Axis Wind Turbine as below:

1) Power supply for ships

2) Electricity for agriculture and fishery

3) Landscape education of wind energy and electricity

4) Wind-hydraulic generation system

5) Public electricity supply for building

6) Romote area

7) Independent house

8) Correspondence base

9) Street light

10) Electricity supply for community

11) Traffic signals

12) Independent smart power island


Competitive Advantage:


Horizontal Axis Wind Turbine (HAWT) VS Maglev Vertical axis Wind Turbine (VAWT)

ITEM HAWT VAWT
Start Wind Speed High (above 3m/s) Low (1m/s)
Wind Conditions Requied Require Stable Wind Direction Any Wind Direction
Encountered Turbulence Reduce the Efficiency Efficiency is not affected
Power Stablitily Change by Wind Direction Without any Wind Effect
Noisy Large(45 decibels or more) Low noisy (because no mechanical frication)
Product Appearance Normal Beautiful
Installation Height High(need to avoid the terrain turbulence) Low(not afraid of turbulence)
Installation Location Just in open area like suburb Any location
Generator Material Plastic or composite Aluminum Alloy
Structure Strength Poor(easy to broken) High(double strengthen arm)
Resistance of Wind Speed Poor(about 40m/s) High (lower 65m/s)
