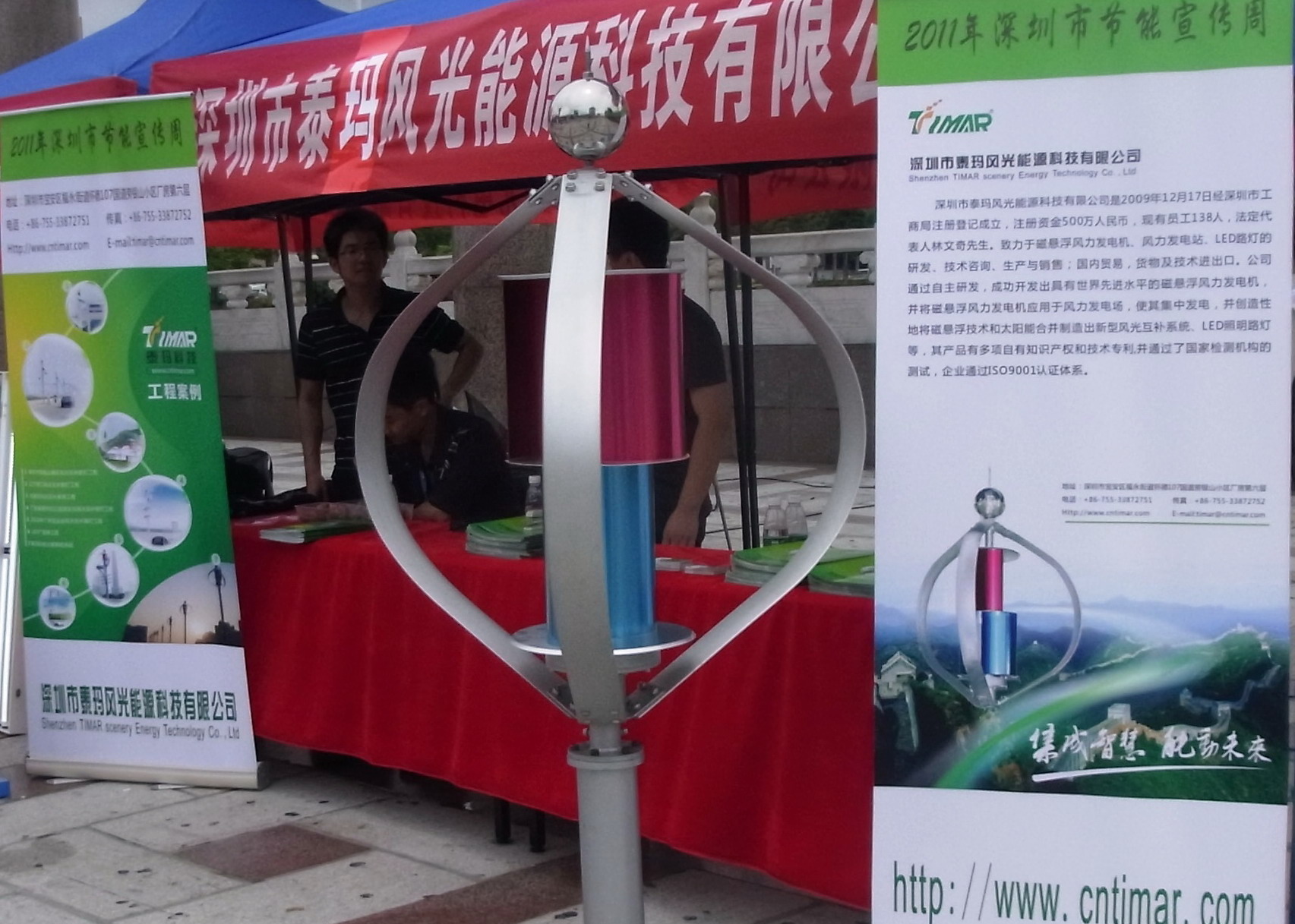

Low Speed Maglev Vertical Axis Wind Turbine with Battery Tank for Ships
Low Speed Maglev Vertical Axis Wind Turbine with Battery Tank for Ships
Specifications
Certification :
CE IEC ISO9001
Supply Ability :
1000 sets per month
MOQ :
1
Packaging Details :
Plywood
Color :
Red and Bule as well as Customerized Color
Payment Terms :
T/T,L/C,Western Union
Place of Origin :
Shenzhen, China
Delivery Time :
15 days
Model Number :
HECO-600W
Product Name :
Maglev Vertical Axis Wind Turbine
Brand Name :
Honor Eco
Application :
Power supply to ships
Blade Material :
Alluminum Alloy
Description


Low Speed Maglev Vertical Axis Wind Turbine with Battery Tank for Ships



1. Quick Detail

  1. Name: Maglev Vertical Axis Wind Turbine
  2. Application :Power supply to ships
  3. Color:Red & blue, Sliver and customrized color
  4. Low cut-in wind speed
  5. Easy installation
  6. Higher power production than tradtional HAWT
  7. Long lifespan of 20 years
  8. High power efficiency
  9. Corrosion-resistant under marine environment
  10. Excellent ability to withstand typhoons

2. Maglev Vertical Axis Wind Turbine Description:
There are special requirements for sea enviroment. HECO series of maglev wind turbines undergoes special surface treatment for robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy as well as anticorrosive surface treatment.HECO-600 is very suitable for installation on ships. Using sea breeze, the maglev wind turbine can generate continuous wind power to provide enough electricity to ships during long distance. It can save a lot in consumption of petrol or diesel.

3.Technical Specifications:

Maglev Vertical Axis Wind Turbine items

HECO600

Rated power

600W

Dimension (Height/Diameter)

Ø1540mm / 1320mm

Weight

50 kg

Blade material

Aluminum Alloy

Blade quantity

7 (3 Darrieus and 4 Savonius)

Swept area ㎡

0.30

Min starting wind speed

1.3 m/s

Cut-in wind speed

3.5m/s

Rated wind speed

13m/s

Cut-off wind speed

15m/s

Survival wind speed

60m/s

Generator type

AC,3Phases

Controller Output Voltage

24V/48V

Controller Braking System

3-phase short circuit by NFB brake

Ambient Temperature

-40～50 ℃

Noise

Less than 40dB

Annual Energy Production (@ 5 m/s wind speed )

about 1500 kWh



4. Typical Configuration
  • 1 600w 24V wind turbine
  • 2 120W Monocrystalline PV panels
  • 1 Wind solar hybrid MTTP controller
  • 4 100AH Gel batteries

5. Maglev Vertical Axis Wind Turbine Applications:

Off grid applications for ships under marine enviroment.
