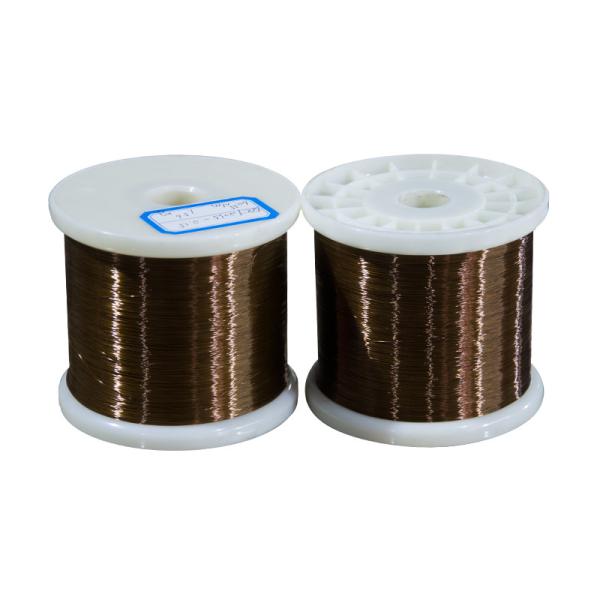

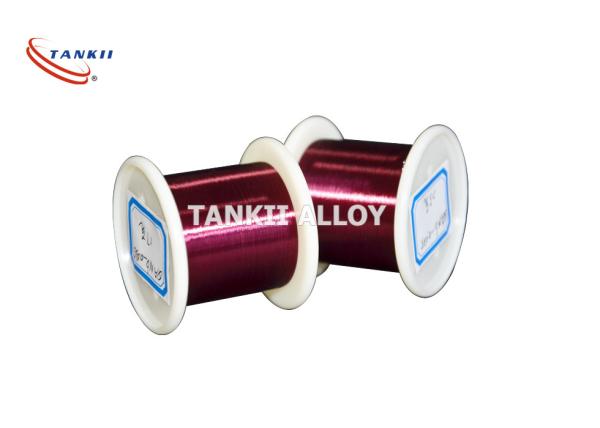

Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy
Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy
Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy
Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy
Specifications
Brand Name :
tankii
Model Number :
Enameled Ni80Cr20
Certification :
-
Place of Origin :
china
MOQ :
10kg
Price :
USD30/kg
Payment Terms :
T/T
Supply Ability :
50000ton/year-
Packaging Details :
case
Delivery Time :
10-15Days
Size :
0.02-1.5mm
colour :
Golden yellow Red etc.
Description

Enameled Ni80Cr20 Nichrome 80/20 NiCr Resistance Alloy Wire

Type of Insulation

Insulation-enamelled Name

Thermal LevelºC

(working time 2000h)

Code Name

GB Code

ANSI. TYPE

Polyurethane enamelled wire

130

UEW

QA

MW75C

Polyester enamelled wire

155

PEW

QZ

MW5C

Polyester-imide enamelled wire

180

EIW

QZY

MW30C

Polyester-imide and polyamide-imide double coated enameled wire

200

EIWH

(DFWF)

QZY/XY

MW35C

Polyamide-imide enamelled wire

220

AIW

QXY

MW81C
Dimension of insulation
D
mm		 Min thickness of insulation Max OD of Enameled
I II I II
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654
Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance AlloyEnameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance AlloyEnameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy
