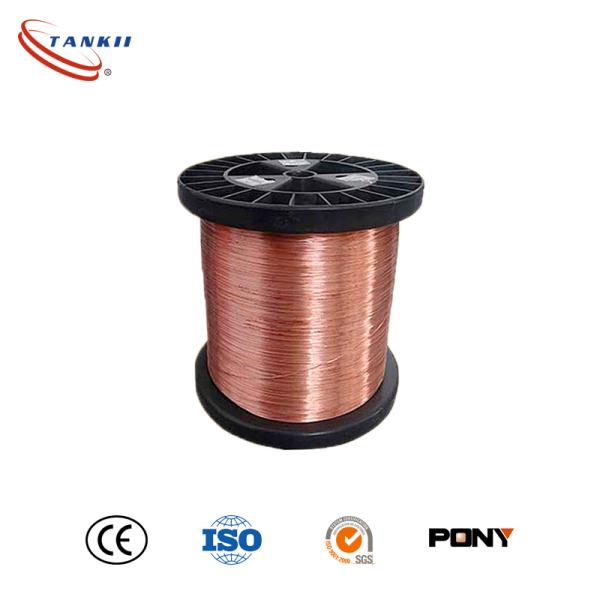

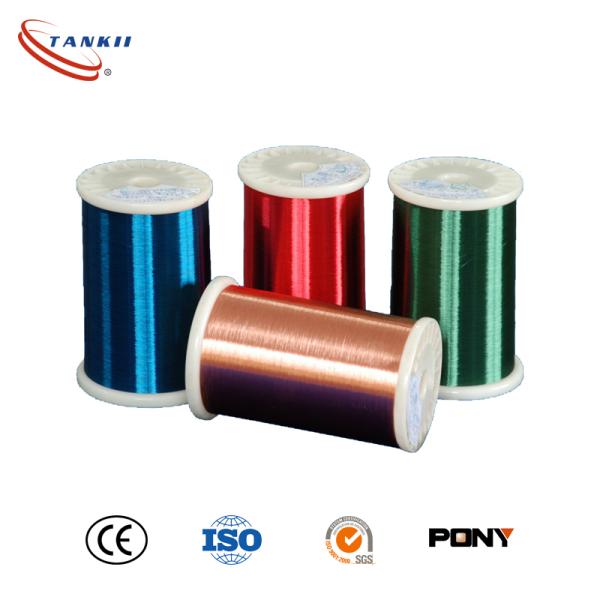

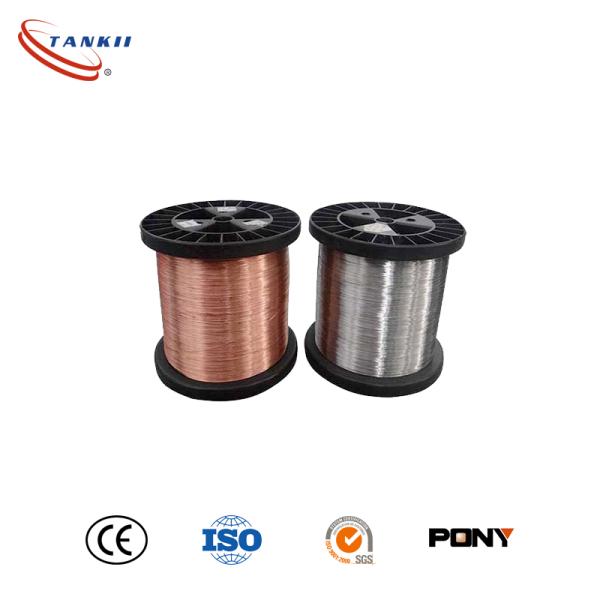

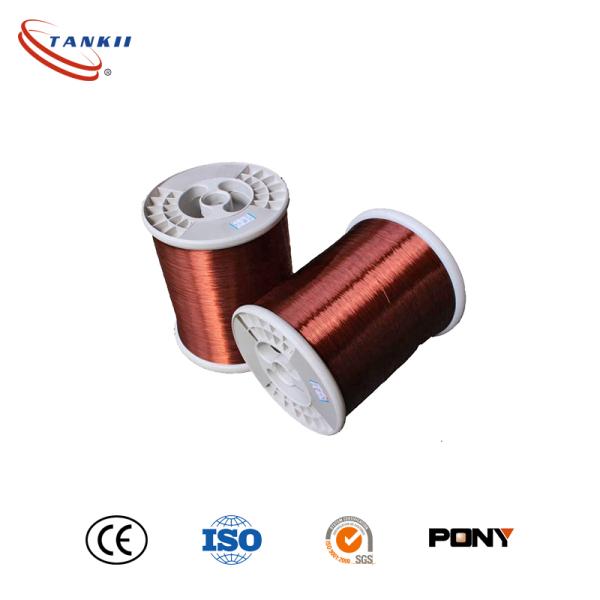

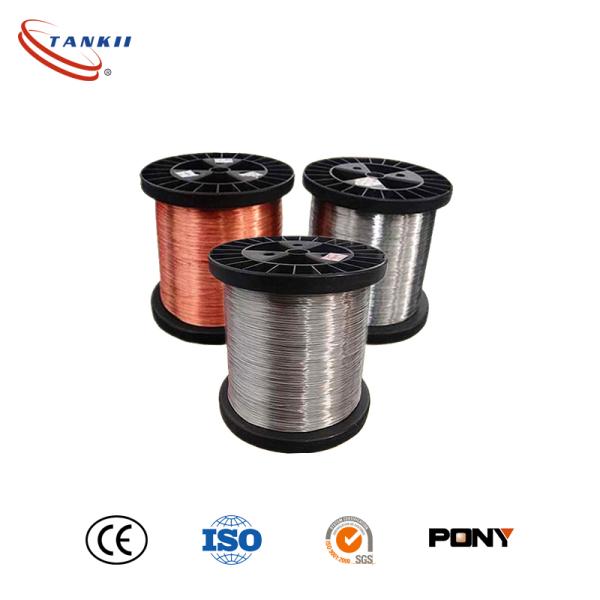

200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
200°C High Temp Manganin Enameled Wire 6J13 for Resistors
Specifications
Brand Name :
Tankii
Model Number :
enameled wire
Certification :
ISO9001, CCC, RoHS
Place of Origin :
China
MOQ :
5
Price :
negotiated
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
2000 Tons/Year
Delivery Time :
10-15 days
Packaging Details :
case
Application :
Overhead, Heating
Sheath Material :
PEI
Material Shape :
Round Wire
Serves :
Samll Order Accepted
surface :
bright
Temper Class :
155/ 180 /200 /220
HS Code :
85441100
Description

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Type of insulation

Insulation-enamelled Name Thermal LevelºC
(working time 2000h)		 Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
(DFWF)		 QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C


Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
2~3 11~13 0.5(max) micro Bal - ND ND ND ND


Mechanical Properties

Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.47±0.03ohm mm2/m
Density 8.44 g/cm3
Thermal Conductivity -3~+20KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC -2~+2α×10-6/ºC(Class0)
-3~+5α×10-6/ºC(Class1)
-5~+10α×10-6/ºC(Class2)
Melting Point 1450ºC
Tensile Strength(Hard) 635 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 1
Micrographic Structure austenite
Magnetic Property non
Micrographic Structure Ferrite
Magnetic Property Magnetic
