Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Superelastic Shape Memory Medical Grade Nickel Titanium Alloy Wire NiTi Wire for Medical and Industrial Applications
Specifications
Supply Ability :
1000 Ton per year
Af :
70°C
Model Number :
Nitinol
Material type :
Superelastic NiTi / Shape memory NiTi
MOQ :
1~10kg
Delivery Time :
3~20 days
Product name :
Nickel titanium Alloy Wire
Supply shape :
coil wire / straight wire
Payment Terms :
T/T
Insulation :
Bare
Price :
USD30~50/kg
Standardspecifications :
ASTM F2063
Certification :
ISO9001
Elongation :
15% to 40%
Brand Name :
TANKII
Color :
bright/black
Place of Origin :
China
Diameter :
0.02 -1.00 MM
Packaging Details :
Standard exoprt package
Application :
Medical, actuator, spring, industrial
Description
Nickel-Titanium Shape Memory Alloy Wire
Nickel-titanium wire, also known as NiTi wire or Nitinol wire, is a functional alloy mainly composed of nickel and titanium. It is well known for its shape memory effect and superelasticity. Depending on the transformation temperature and processing conditions, NiTi wire can be used for medical devices, orthodontic wires, actuators, springs, eyeglass frames, temperature control components, and smart mechanical structures.
Common Names and Grades
Grade Name Main Characteristics
NiTi Nickel Titanium Alloy General purpose nickel-titanium alloy
Nitinol Nickel Titanium Naval Ordnance Laboratory Common commercial name for nickel-titanium shape memory alloys
Superelastic NiTi Superelastic NiTi Superelastic nickel-titanium wire with high elastic recovery at room temperature
Shape Memory NiTi Shape Memory NiTi Shape memory nickel-titanium wire that returns to its original shape after heating
Medical Grade NiTi Medical Grade NiTi Nitinol nickel-titanium wire for medical devices
Actuator Grade NiTi Actuator Grade NiTi Nickel-titanium wire for actuators/drivers
Generally, we calculate the unit price based on the diameter, phase transition temperature (Af), surface condition, usage condition, and standard/application provided by the customer.
Main Chemical Content
Chemical Content
Ni 54.5~57 wt%
Ti Bal.
Key Parameter: Austenite Finish Temperature (Af)
The most commonly used parameter in purchasing and applications is the Af temperature (Austenite finish temperature).
Simple explanation:
  • Af below room temperature: The material usually shows superelastic behavior at room temperature.
  • Af above room temperature: The material is easier to deform at room temperature and recovers its shape after heating, showing shape memory behavior.
Common Af Temperature Ranges
Type Af Temperature Typical Applications
Superelastic type Approx. -20°C to +20°C Medical stents, eyeglass frames, elastic components
Low-temperature shape memory type 30°C-45°C Temperature-control springs, toys, demonstration materials
Medium-temperature shape memory type 45°C-70°C Actuators, switches, automatic reset structures
High-temperature shape memory type 70°C-100°C or higher Special industrial temperature-control components
Main Features of Nickel Titanium Wire
Shape Memory Effect
Nickel titanium wire can be stretched or bent at a lower temperature, and then return to its preset shape when heated.
Superelasticity
Some nickel titanium wires can undergo large deformation at room temperature and then recover automatically.
Good Corrosion Resistance
Nickel titanium alloy forms a stable titanium oxide film on its surface, giving it good corrosion resistance, especially in medical and humid environments.
Good Biocompatibility
Medical-grade nickel titanium wire is widely used in implantable and interventional medical devices, such as:
  • Vascular stents
  • Orthodontic wires
  • Guide wires
  • Orthopedic fixation components
For medical applications, the material must meet relevant standards and certification requirements. Ordinary industrial-grade material should not be used as a substitute.
Relatively High Electrical Resistivity and Joule Heating Capability
Nickel titanium wire can be heated by electric current to reach its transformation temperature and generate mechanical movement. Therefore, it can also be used as a simple electrothermal actuator.
Applications of Nickel Titanium Wire
  • Medical devices
  • Dental orthodontics
  • Eyeglass industry
  • Industrial temperature control
  • Robotics and smart materials
  • Aerospace
  • Electronics and electrical appliances
  • Teaching and experiments

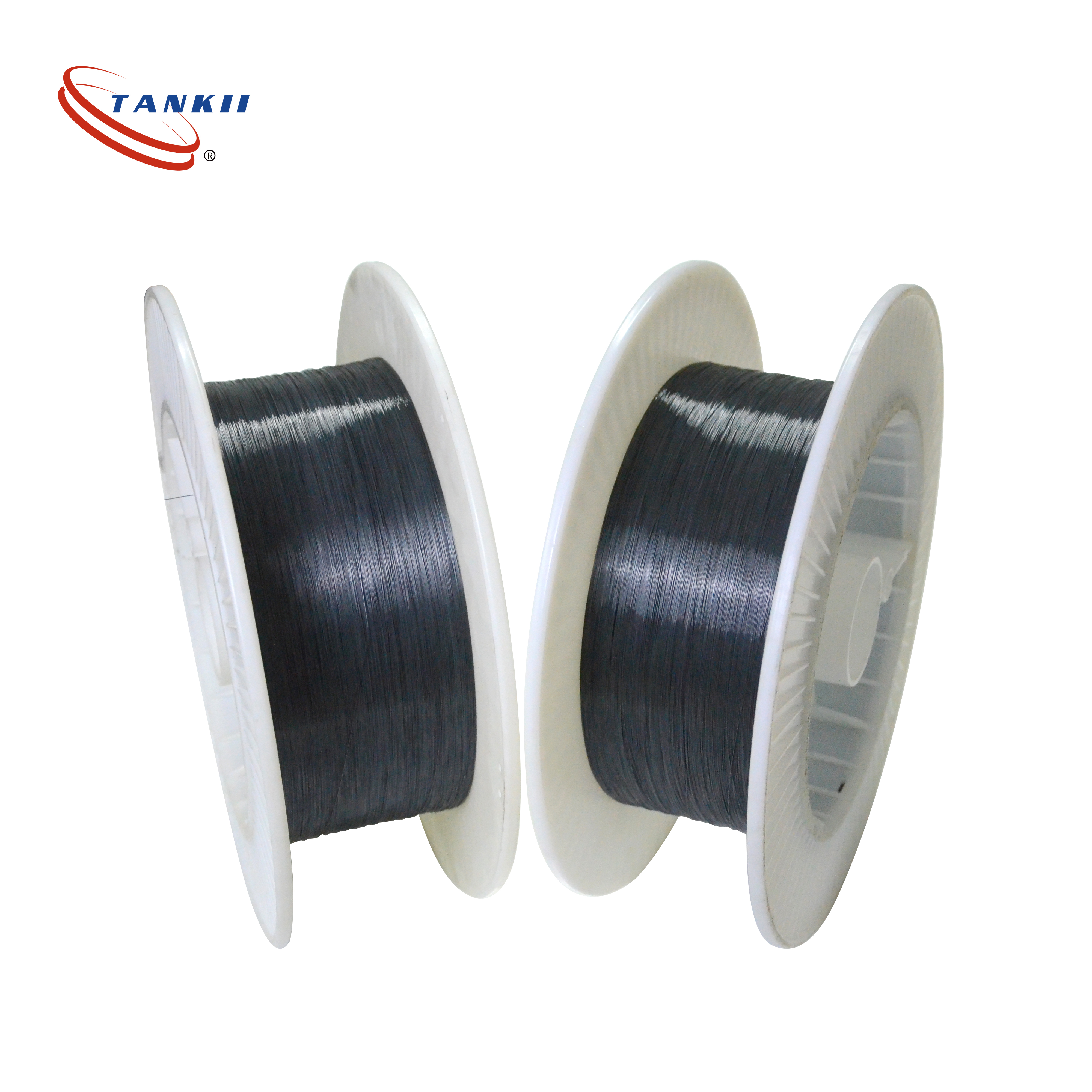

Product Images
