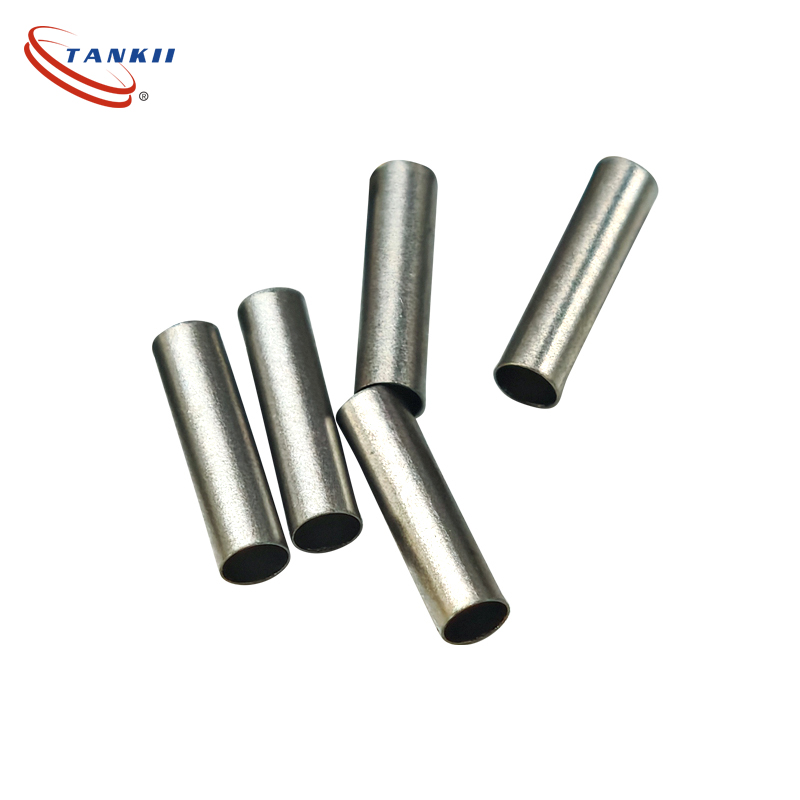

High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
Specifications
Brand Name :
Tankii
Model Number :
Ni201 pipe
Certification :
ISO9001 Rohs
Place of Origin :
China
MOQ :
500 pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000tons per year
Delivery Time :
15-25days
Packaging Details :
wooden case
Material :
Pure nickel
Purity :
>99.95%
shape :
round pipe
Density :
8.9(g/cm3)
surface :
Bright
Origin :
Shanghai, China
Description

High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor

General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition

Alloy Ni% Mn% Fe% Si% Cu% C% S%
Nickel 200 Min 99.2 Max 0.35 Max 0.4 Max 0.35 Max 0.25 Max 0.15 Max 0.01

Physical Data

Density 8.89g/cm3
Specific Heat 0.109(456 J/kg.ºC)
Electrical Resistivity 0.096×10-6ohm.m
Melting Point 1435-1446ºC
Thermal Conductivity 70.2 W/m-K
Mean Coeff Thermal Expansion 13.3×10-6m/m.ºC

Typical Mechanical Properties

Mechanical Properties Nickel 200
Tensile Strength 462 Mpa
Yield Strength 148 Mpa
Elongation 47%

Our Production Standard

Bar Forging Pipe Sheet/Strip Wire
ASTM ASTM B160 ASTM B564 ASTM B161/B163/B725/B751 AMS B162 ASTM B166


High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
