Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
Specifications
Supply Ability :
1000 Ton per year
Af :
70°C
Model Number :
Nitinol
Color :
bright/black
Certification :
ISO9001
Material type :
Superelastic NiTi / Shape memory NiTi
MOQ :
1~10kg
Delivery Time :
3~20 days
Diameter :
0.02 -1.00 MM
Supply shape :
coil wire / straight wire
Payment Terms :
T/T
Insulation :
Bare
Price :
USD30~50/kg
Standardspecifications :
ASTM F2063
Brand Name :
TANKII
Product name :
Nitinol Round Wire 0.31mm 0.35mm Flat Wire 0.4mm * 0.55mm
Place of Origin :
China
Elongation :
15% to 40%
Packaging Details :
Standard exoprt package
Application :
Medical, actuator, spring, industrial
Description
Nickel-Titanium Shape Memory Alloy Wire

Nickel titanium wire, also known as nickel titanium shape memory alloy wire, is a new type of material that combines the two unique functions of "shape memory" and "superelasticity". Its core component is approximately 55.4% to 57% nickel, with the remainder being titanium.

Its magic mainly stems from its unique physical properties:

  • Shape memory effect: It can deform freely at lower temperatures and automatically return to its original shape when heated to a specific temperature (phase transition temperature). The temperature range for phase transition is very wide, and can be customized from -20 ℃ to 100 ℃.
  • Superelasticity (pseudo elasticity): At room temperature, it has an elastic limit far beyond that of ordinary metals, and can instantly recover even after withstanding large deformations. For example, its recoverable expansion rate can reach over 20%, fatigue life can reach 10 times, and damping characteristics are 10 times higher than ordinary springs
Common Names and Grades
GradeNameMain Characteristics
NiTiNickel Titanium AlloyGeneral purpose nickel-titanium alloy
NitinolNickel Titanium Naval Ordnance LaboratoryCommon commercial name for nickel-titanium shape memory alloys
Superelastic NiTiSuperelastic NiTiSuperelastic nickel-titanium wire with high elastic recovery at room temperature
Shape Memory NiTiShape Memory NiTiShape memory nickel-titanium wire that returns to its original shape after heating
Medical Grade NiTiMedical Grade NiTiNitinol nickel-titanium wire for medical devices
Actuator Grade NiTiActuator Grade NiTiNickel-titanium wire for actuators/drivers
Generally, we calculate the unit price based on the diameter, phase transition temperature (Af), surface condition, usage condition, and standard/application provided by the customer.
Main Chemical Content
ChemicalContent
Ni54.5~57 wt%
TiBal.
Key Parameter: Austenite Finish Temperature (Af)
The most commonly used parameter in purchasing and applications is the Af temperature (Austenite finish temperature).
Simple explanation:
  • Af below room temperature: The material usually shows superelastic behavior at room temperature.
  • Af above room temperature: The material is easier to deform at room temperature and recovers its shape after heating, showing shape memory behavior.
Common Af Temperature Ranges
TypeAf TemperatureTypical Applications
Superelastic typeApprox. -20°C to +20°CMedical stents, eyeglass frames, elastic components
Low-temperature shape memory type30°C-45°CTemperature-control springs, toys, demonstration materials
Medium-temperature shape memory type45°C-70°CActuators, switches, automatic reset structures
High-temperature shape memory type70°C-100°C or higherSpecial industrial temperature-control components
Main Features of Nickel Titanium Wire
Shape Memory Effect
Nickel titanium wire can be stretched or bent at a lower temperature, and then return to its preset shape when heated.
Superelasticity
Some nickel titanium wires can undergo large deformation at room temperature and then recover automatically.
Good Corrosion Resistance
Nickel titanium alloy forms a stable titanium oxide film on its surface, giving it good corrosion resistance, especially in medical and humid environments.
Good Biocompatibility
Medical-grade nickel titanium wire is widely used in implantable and interventional medical devices, such as:
  • Vascular stents
  • Orthodontic wires
  • Guide wires
  • Orthopedic fixation components
For medical applications, the material must meet relevant standards and certification requirements. Ordinary industrial-grade material should not be used as a substitute.
Relatively High Electrical Resistivity and Joule Heating Capability
Nickel titanium wire can be heated by electric current to reach its transformation temperature and generate mechanical movement. Therefore, it can also be used as a simple electrothermal actuator.
Applications of Nickel Titanium Wire
  • Medical devices
  • Dental orthodontics
  • Eyeglass industry
  • Industrial temperature control
  • Robotics and smart materials
  • Aerospace
  • Electronics and electrical appliances
  • Teaching and experiments

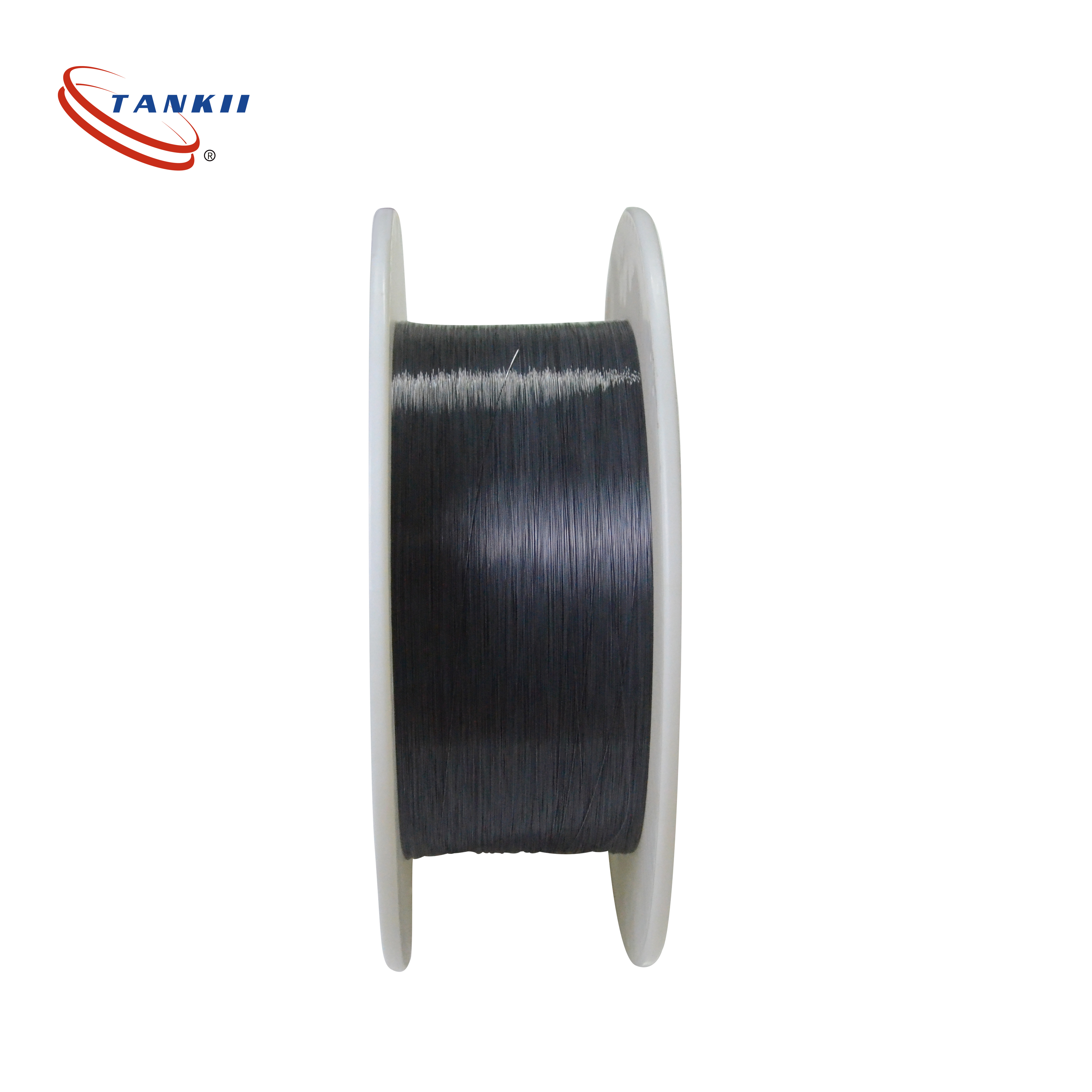

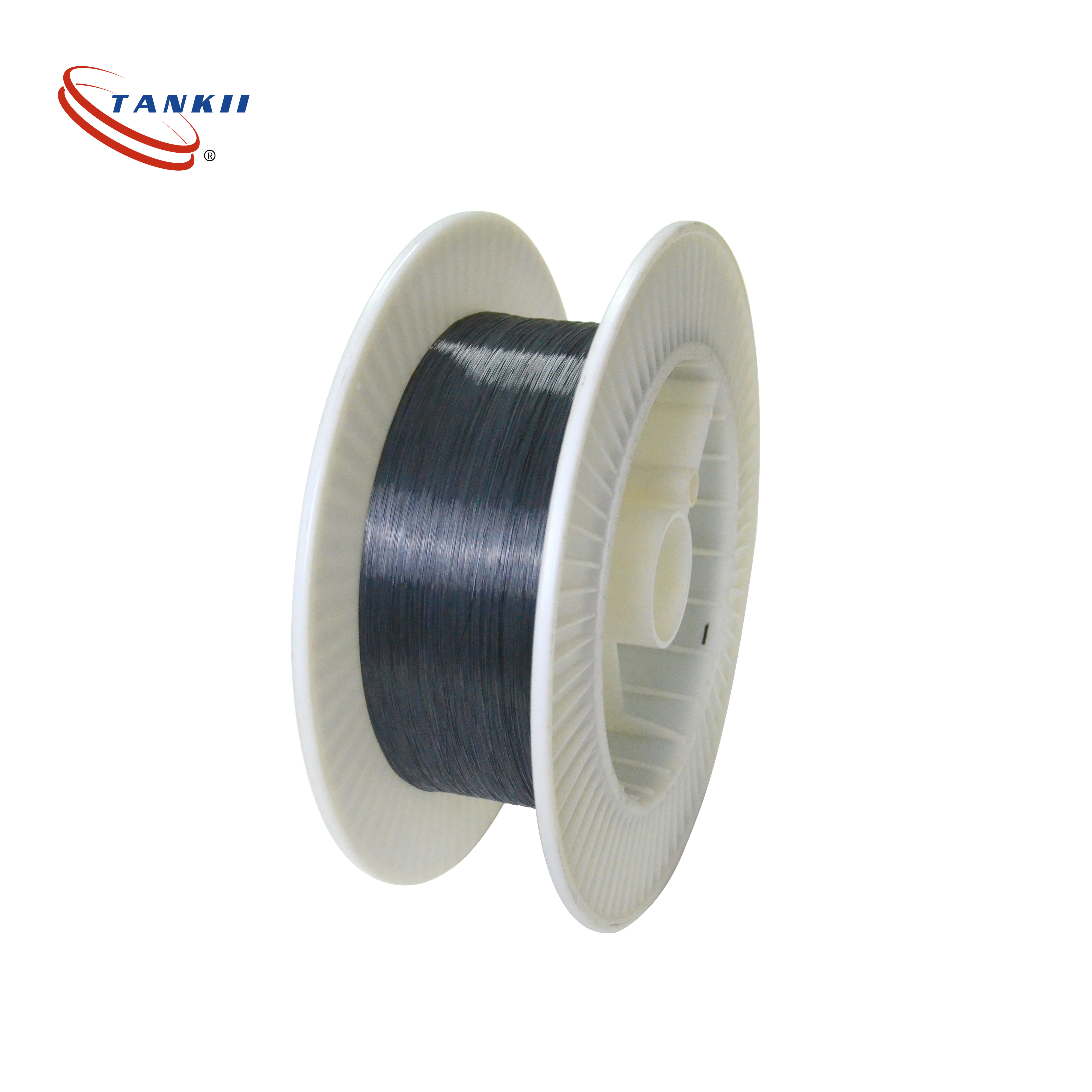

Product Images
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators

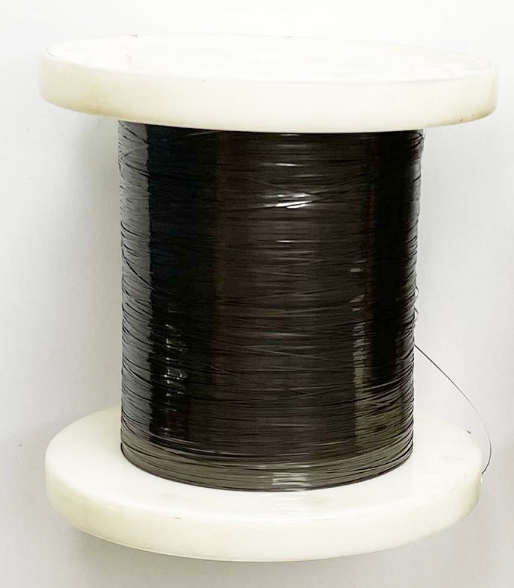

Flat wire :
Superelastic Medical Grade Nitinol Wire 0.31mm Diameter for Medical Stents and Actuators
