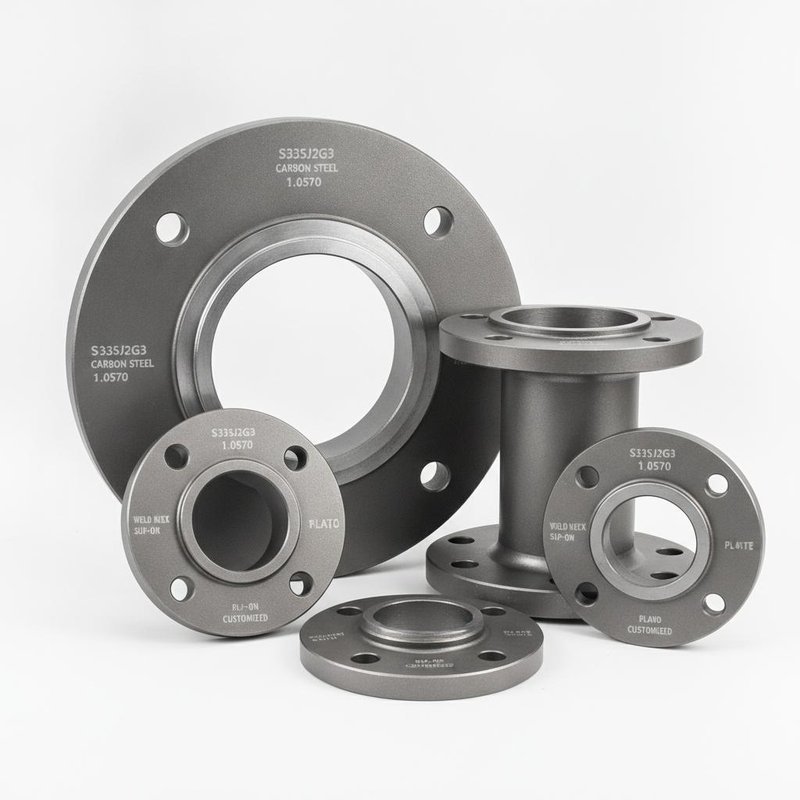

S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
S335J2G3 1.0570 Carbon Steel Blind Pipe Flanges Weld Neck and Slip-On Flange
Specifications
Material Grade :
S355j2g3
Flange Type :
weld neck flanges
Type :
Slip on flanges
Material :
1.0570
Description
S335J2G3 Blind Pipe Flanges Flange 1.0570 Carbon Steel Weld Neck Flange Slip-On Plate Multi-Type Flange Customized
Product Overview
Product Name Flange (304/F304 Pipe Fitting WN RF/RTJ/FF ANSI/JIS/DIN/API 6A CL150/PN10/PN16 Forged Stainless Steel Weld Neck Pipe Flange)
Pressure 150#-2500#, PN0.6-PN400, 5K-40K, API 2000-15000
Standard ANSI B16.5, EN1092-1, SABA1123, JIS B2220, DIN, GOST, UNI, AS2129, API 6A, etc.
Thickness SCH5S, SCH10S, SCH10, SCH40S, STD, XS, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material
  • Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541, 254Mo and etc.
  • Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24, A515 Gr60, A515 Gr 70 etc.
  • Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750, UNS32760, 1.4462, 1.4410, 1.4501 and etc.
  • Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
  • Nickel alloy: Inconel600, Inconel625, Inconel690, Incoloy800, Incoloy 825, Incoloy 800H, C22, C-276, Monel400, Alloy20 etc.
  • Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3, 15Crmo, etc.
Shipping Ways
  • By sea: Convenient for bulk orders. Cheap shipping cost, usually takes 30-60 days.
  • By air: Quick delivery for not very heavyweight orders. Cheaper than Express. Takes around 7-12 days.
  • By express: For samples and small orders. A little expensive, but very quickly, usually 7-10 days, door to door.
Material Specifications
Grade S335J2G3
Number 1.0570
Classification According to EN 10025-2 steel number 1.0570 named S355J2(+N)
Standard EN 10250-2: 2000 Open steel die forgings for general engineering purposes. Non-alloy quality and special steels
Chemical Composition (%) - EN 10250-2-2000

For forgings with an equivalent diameter or thickness > 100 mm the carbon content shall be agreed between purchaser and supplier.

C Si Mn Ni P S Cr Mo Al -
max 0.22 max 0.55 max 1.6 max 0.3 max 0.035 max 0.035 max 0.3 max 0.08 min 0.02 Cr+Mo+Ni < 0.48
Mechanical Properties
Property to 100 mm 100 - 250 mm 250 - 500 mm
Rm - Tensile strength (MPa) (+N) 490 450 450
Re - Upper yield strength (MPa) (+N) 315 275 265
A - Min. elongation at fracture (%) longitudinal (+N) 20 18 18
A - Min. elongation at fracture (%) transverse (+N) 12
Equivalent Grades
EU EN Russia GOST
S335J2G3 17GS
S345
