Specifications
Steel number :
1.4306
Type :
steel forged blind flanges
Standard :

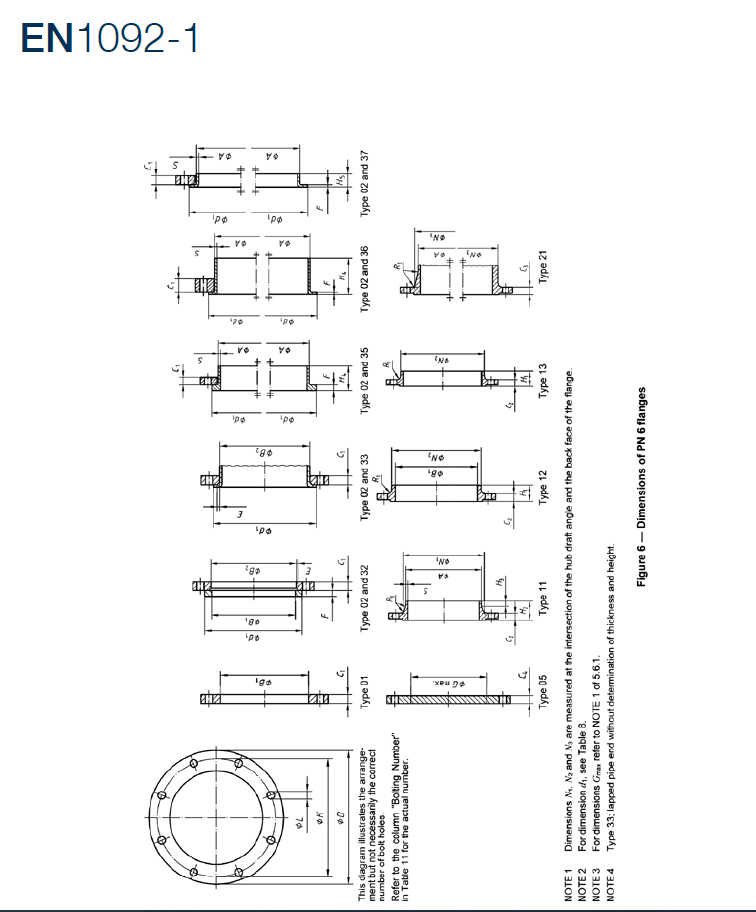

EN1092-1 Type 01
Material :
X2CrNi19-11
Description
X2CrNi19-11 Steel Forged Blind Pipe Flanges EN 10028-7 1.4306 Blind Flanges
Material Specifications
Grade: X2CrNi19-11
Number: 1.4306
Classification: Austenitic stainless steel
Density: 7.9 g/cm³
Applicable Standards
  • EN 10088-2:2005 - Stainless steels - Technical delivery conditions for sheet/plate and strip
  • EN 10088-3:2005 - Stainless steels - Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products
  • EN 10028-7:2007 - Flat products made of steels for pressure purposes - Stainless steels
  • EN 10216-5:2014 - Seamless steel tubes for pressure purposes - Stainless steel tubes
  • EN 10217-7:2005 - Welded steel tubes for pressure purposes - Stainless steel tubes
  • EN 10296-2:2005 - Welded circular steel tubes for mechanical and general engineering purposes - Stainless steel
  • EN 10253-4:2008 - Butt-welding pipe fittings - Wrought austenitic and austenitic-ferritic (duplex) stainless steels
  • EN 10272:2007 - Stainless steel bars for pressure purposes
  • EN 10263-5:2001 - Steel rod, bars and wire for cold heading and cold extrusion - Stainless steels
  • EN 10250-4:2000 - Open steel die forgings for general engineering purposes - Stainless steels
  • EN 10297-2:2005 - Seamless circular steel tubes for mechanical and general engineering purposes - Stainless steel
  • EN 10253-3:2008 - Butt-welding pipe fittings - Wrought austenitic and austenitic-ferritic (duplex) stainless steels
  • EN 10088-1:2005 - Stainless steels - List of stainless steels
  • EN 10088-5:2009 - Stainless steels - Technical delivery conditions for bars, rods, wire, sections and bright products
  • EN 10088-4:2009 - Stainless steels - Technical delivery conditions for sheet/plate and strip
Chemical Composition (%)
Element Content
C max 0.03
Si max 1
Mn max 2
Ni 10 - 12
P max 0.045
S max 0.015
Cr 18 - 20
N max 0.11

Note: Particular ranges of sulphur content may provide improvement of particular properties. For machinability: 0.015% to 0.030%; for weldability: 0.008% to 0.030%; for polishability: max 0.015%.

Mechanical Properties
Property Value
Tensile Strength (+A) - Rm (MPa) 460-700
Tensile Strength (+AT) - Rm (MPa) 460-680
Tensile Strength (+AT+C) - Rm (MPa) 740-780
0.2% Proof Strength (+AT) - Rp0.2 (MPa) 180
0.2% Proof Strength (+A) - Rp0.2 (MPa) 180-220
Impact Energy Transverse (+A) - KV (J) at +20°C 60
Impact Energy Transverse (+A) - KV (J) at -196°C 60
Impact Energy Longitudinal (+A) - KV (J) at +20°C 100
Elongation at Fracture (+A) - A (%) 35-45
Elongation at Fracture Longitudinal (+AT) - A (%) 40
Nominal Diameter (mm) 2 - 50
Reduction in Cross Section - Z (%) 63-68
Brinell Hardness (+A) - HB 215
Brinell Hardness (+AT) - HB 200
Material Properties

Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes

Minimum application temperature: -270°C

Equivalent Grades
EU EN USA Japan JIS France AFNOR England BS Italy UNI Sweden SS Poland PN Finland SFS Russia GOST
X2CrNi19-11 304L SUS304L Z2CN18-10
Z3CN18-10		 304S11 X2CrNi18-11 2352 00H18N10 720 03KH18N11

Warning! Equivalent grades are for reference only.

Product Images
X2CrNi19-11 Steel Forged Blind Pipe Flanges EN 10028-7 1.4306 Blind Flanges X2CrNi19-11 Steel Forged Blind Pipe Flanges EN 10028-7 1.4306 Blind Flanges
