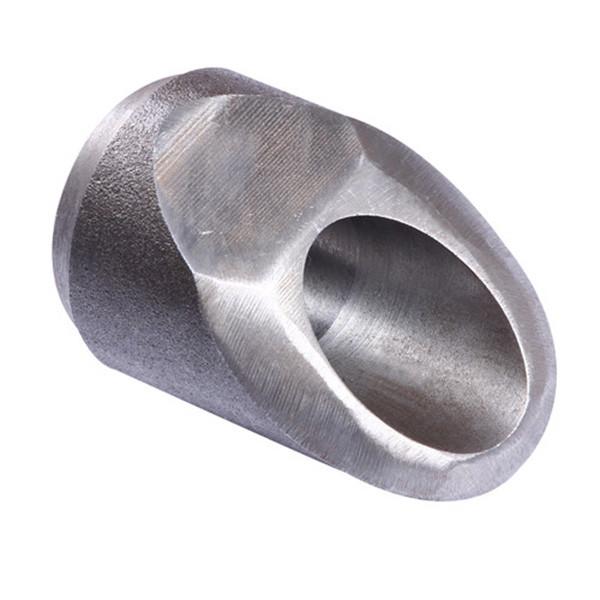

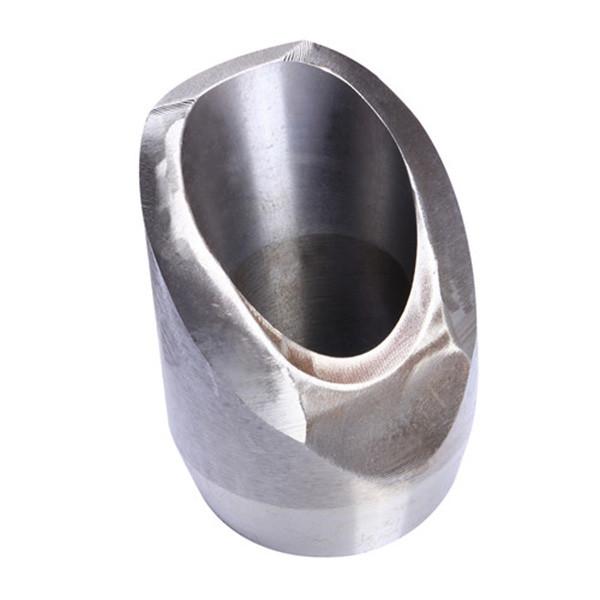

Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged
Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged
Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged
Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged
Specifications
Brand Name :
OEM/ODM
Model Number :
1/2"-4"
Certification :
CE,API,PED,ABS,CCS,ISO9001
Place of Origin :
Cangzhou ,Hebei Pro,China
MOQ :
5pcs
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Piece/Pieces per Month
Delivery Time :
within 7 days
Packaging Details :
according to your requirement.
OD :
1/2"-4"
standard :
MSS SP-97
surface :
Hot dipped galvanized,Cold galvanized, Black
Thread :
BSPP BSPT NPT
Connection :
Male and Female
Packing :
Wooden Box Packaging
Surface :
Galvanized,Normal black,Oil-rust
material :
A182 f53
payment :
T/T.l/c
Head Code :
Round
Description

Products Decription:

Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged

Size

1/8"-4"

Connection

welding

Material

Stainless steel: 304, F304(S30408), F316(S31608), F321(S32168), 304L(S30403), F316L(S31603), 316L(high Mo), 00Cr17Ni14Mo2, F51(S22253), F60, F304H(S30409),
F316H(S31609), F321H(S32169), F321H low S.P, M-400, F53, 316Ti, 317, 317L, 347, 347H(S34779), 310S, F304 low S.P, 304L low S.P, F316L low S.P, 347H low S.P, F5teel

carbon steel :20#, A105 low PS, A105, A350LF2

Alloy steel :15CrMo , 12CrMoV, 12CrlMoV, 10CrMo910, 16Mn(Q345B.C), 42CrMo, F91, F11, F9, 12Cr2Mo, 12MnNb, 1Cr5Mo, Cr15Ni20, F22, 35CrMo, SA333GR6, A350LF3

Pressure

3000lbs,6000lbs,9000lbs

Temperature

-254°~800°

Surface treatment

Blasting oil,black plain

Application

Petroleum,chemical,machinery,boiler,electric ,shipbuilding,etc

Standard

ASME/ANSI,MSS,DIN,JIS,GB/T,SH,CB,JB,HG

Min order

50 piece

Delivery time

7days

Payment term

T/T,L/C

Packing

carton&wooden box&Pallet or as customer's requirements

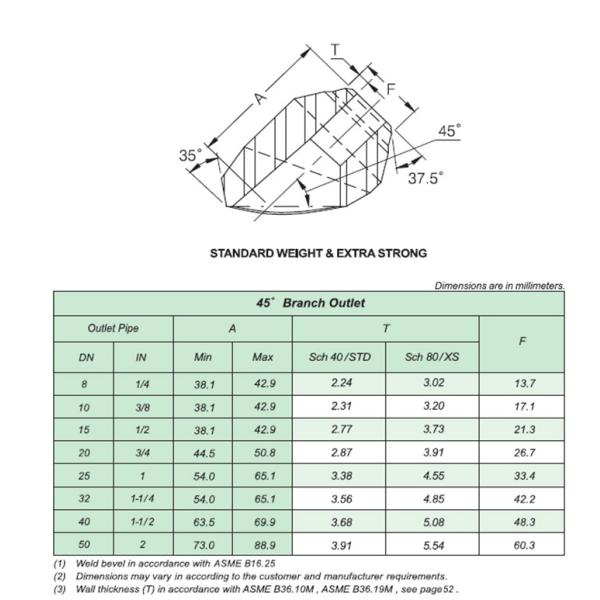

Latrolet, used for 45° lateral connections, is available butt-weld to meet specific reinforcement requirements, and 3000# or 6000# classes for Socket Weld and threaded applications.

The reinforced pipe fittings used for branch pipe connection, instead of the traditional branch pipe connection types such as reducing tee, reinforcing plate and reinforced pipe section, have the outstanding advantages of safety and reliability, reducing cost, simple construction, improving medium flow channel, series standardization, convenient design and selection, etc., especially in high pressure, high temperature, large diameter and thick wall pipes, which replace the traditional branch pipe Connection method. The main body of the branch pipe is made of high-quality forgings, and the material is the same as that of the pipe

INFORMATION DETAILS

FOB price:$1-3

MOQ:50 piece

Payment terms:T/T,L/C

Terms of payment:30% payment before delivery,payment after the arrival of the goods by 70%

Sample time:7-10 days

Lead time:10 days

Packaging information:carton&wooden box&Pallet or as customer's requirements

Port:Shanghai,Tianjin and Qingdao

Shipment:The sea,road,air,express delivery

Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged

Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged

Butted Weld3000lb 45degree Elbowolets And Latrolets By Forged
