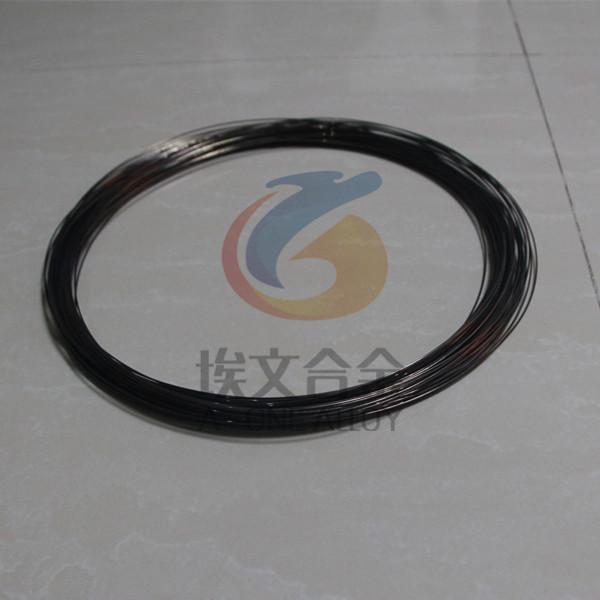

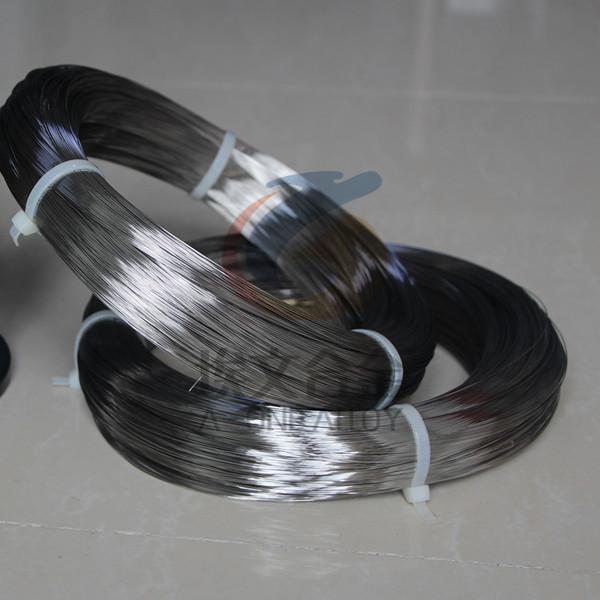

Magnetostrictive waveguide wire for level gauge and displacement sensor
Magnetostrictive waveguide wire for level gauge and displacement sensor
Magnetostrictive waveguide wire for level gauge and displacement sensor
Magnetostrictive waveguide wire for level gauge and displacement sensor
Magnetostrictive waveguide wire for level gauge and displacement sensor
Magnetostrictive waveguide wire for level gauge and displacement sensor
Magnetostrictive waveguide wire for level gauge and displacement sensor
Magnetostrictive waveguide wire for level gauge and displacement sensor
Specifications
Place of Origin :
Suzhou, China
Brand Name :
AIWEN
Certification :
SH
Model Number :
SH-Magnetostrictive wire
MOQ :
100meters
Price :
Available per request

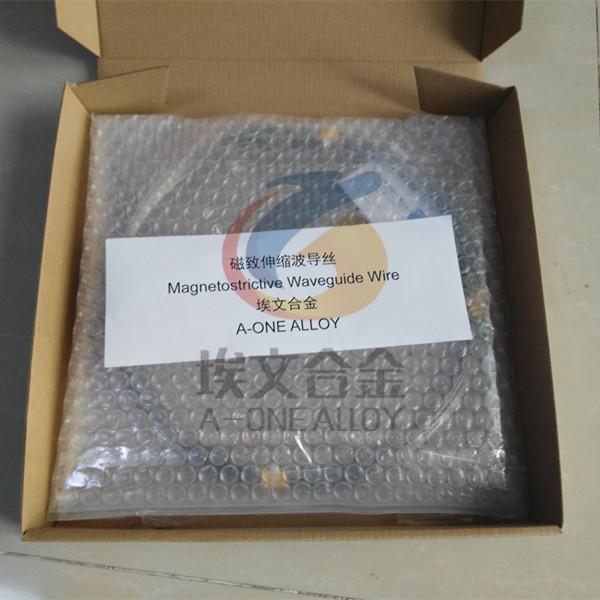

Packaging Details :
By customers' require
Delivery Time :
1-3days
Payment Terms :
T/T
Supply Ability :
100000 meters per year
Description

Magnetostrictive waveguide wire for level gauge and displacement sensor

  • Magnetostriction is a property of ferromagnetic materials such as iron, nickel, and cobalt. When placed in a magnetic field, these materials change size and/or shape

  • An important characteristic of a wire made of a magnetostrictive material is the Wiedemann effect
  • When an axial magnetic field is applied to a magnetostrictive wire, and a current is passed through the wire, a twisting occurs at the location of the axial magnetic field
  • The twisting is caused by interaction of the axial magnetic field, usually from a permanent magnet, with the magnetic field along the magnetostrictive wire, which is present due to the current in the wire
  • The current is applied as a short-duration pulse, -1 or 2 µs, the minimum current density is along the center of the wire and the maximum at the wire surface
  • This is due to the skin effect

  • The magnetic field intensity is also greatest at the wire surface
  • This aids in developing the waveguide twist
  • Since the current is applied as a pulse, the mechanical twisting travels in the wire as an ultrasonic wave
  • The magnetostrictive wire is therefore called the waveguide
  • The wave travels at the speed of sound in the waveguide material, - 3O00m/s


Application:

  • Magnetostrictive level gauge
  • Magnetostrictive level sensor
  • Magnetostrictive position sensor
  • Magnetostrictive displacement sensor
  • Magnetostrictive linear displacement transducer
  • Magnetostrictive transducer
  • Other sensors where magnetostrictive wire needed


Size range:
0.15-1.0mm

Stock size:

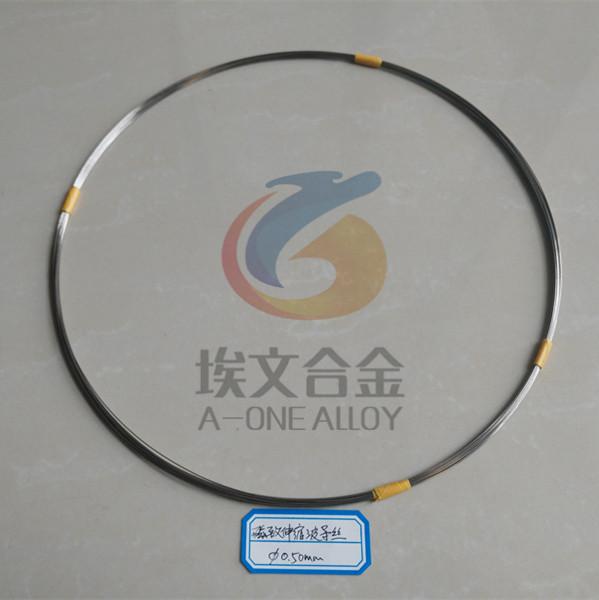

  • Φ0.50mm
  • Φ0.75mm
  • Φ0.8mm

Magnetostrictive waveguide wire for level gauge and displacement sensor

Magnetostrictive waveguide wire for level gauge and displacement sensor

Magnetostrictive waveguide wire for level gauge and displacement sensor
