Introduction

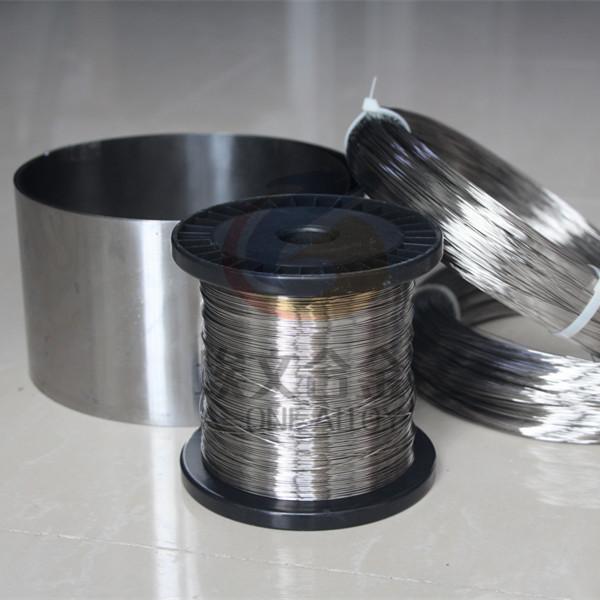

A-one Alloy has rich experience of supplying Magnetostrictive waveguide wire to customers from worldwide. Our wire is widely used in Magnetostrictive level gauge/sensor. We keep regular stock of wire of diameter 0.35mm/0.50mm/0.75mm/1.0mm/1.2mm. Contact Allen Sun at allen.sun@sz-alloy.com for latest stock information.

The current is applied as a short-duration pulse, -1 or 2 µs; the minimum current density is along the center of the wire and the maximum at the wire surface. This is due to the skin effect.

The magnetic field intensity is also greatest at the wire surface. This aids in developing the waveguide twist. Since the current is applied as a pulse, the mechanical twisting travels in the wire as an ultrasonic wave. The magnetostrictive wire is therefore called the waveguide.

Magnetostriction is a property of ferromagnetic materials such as iron, nickel, and cobalt. When placed in a magnetic field, these materials change size and/or shape.

An important characteristic of a wire made of a magnetostrictive material is the Wiedemann effect. When an axial magnetic field is applied to a magnetostrictive wire, and a current is passed through the wire, a twisting occurs at the location of the axial magnetic field. The twisting is caused by interaction of the axial magnetic field, usually from a permanent magnet, with the magnetic field along the magnetostrictive wire, which is present due to the current in the wire.

Character

Resistivity: 1.1μΩ·m

Tensile strength: >930MPa

λ//: 28ppm；

λs:≈30ppm

Elasticity modulus: 170~190Gpa

Shear modulus: 60~65GPa

Density:8.0g/cm3

Linear Expansion coefficient: 8.5ppm/K (@20-100°C)

Working temperature: -40~100°C

Application

Magnetostrictive sensor, Magnetostrictive level gauge,

Sizes available at A-one Alloy

Diameter 0.20~1.5mm. Stock size: diameter 0.35mm/0.50mm/0.75mm/1.0mm/1.2mm. In reel or coil.

Delivery

Stock items: within 3 days after payment received. For customized diameter, the delivery is 30 days.
