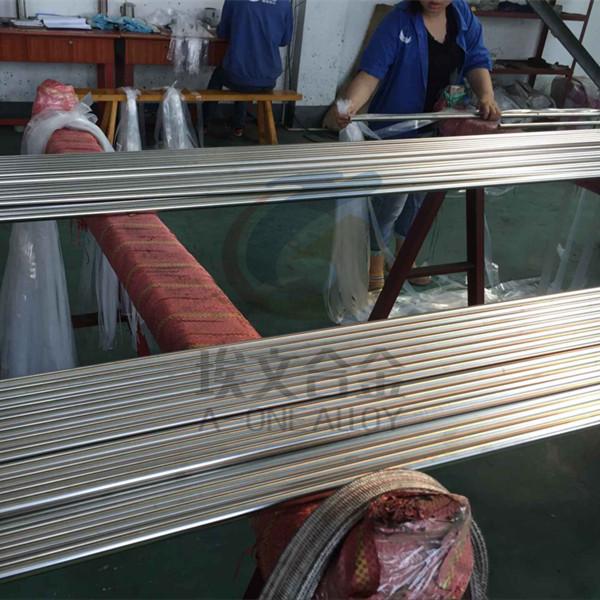

Fe-Co-Mo Magnetic Hysteresis Alloy Bar with size of OD 20-100mm
Fe-Co-Mo Magnetic Hysteresis Alloy Bar with size of OD 20-100mm
Specifications
Place of Origin :
Suzhou, China
Brand Name :
AIWEN
Certification :
ISO9001:2008
Model Number :
2J23A
Type :
Permanent
Composite :
Ferrite Magnet
Shape :
Bar
Application :
Industrial Magnet
MOQ :
100kg
Price :
Available per request
Packaging Details :
Wooden crate
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
10000 kg per month
Description

Fe-Co-Mo Magnetic Hysteresis Alloy Bar with size of OD 20-100mm

FeCoMo hysteresis alloys have excellent hysteresis properties in both medium and high magnetic fields.

Application:
Rotors of hysteresis motors, and electromagnetic clutches, etc

Alloy Dimension
2J21
Forged or rolled bar:
Diam 20~100mm
2J23
2J25
2J27
2J23A

Chemical composition ( wt% )
Alloy C Si P S Mn Co Mo Ni Fe
Not more than
2J21 0.03 0.03 0.025 0.025 0.10~0.50 11.0~13.0 10.5~11.5 balance
2J23 0.03 0.03 0.025 0.025 0.10~0.50 11.0~13.0 12.5~13.5 balance
2J25 0.03 0.03 0.025 0.025 0.10~0.50 11.0~13.0 14.5~15.5 balance
2J27 0.03 0.03 0.025 0.025 0.10~0.50 11.0~13.0 16.5~17.5 balance
2J23A 0.03 0.03 0.025 0.025 0.10~0.50 11.0~13.0 13.5~14.5 Not more than 0.07 balance

Magnetic properties
Alloy Hμ
kA/m		 Bμ
T		 Pμ kJ/m 3 Kμ
Not less than
2J21 9.55~12.73 1.00~1.30 20 0.46
2J23 14.32~17.50 1.00~1.30 30 0.48
2J25 17.50~22.62 0.90~1.20 38 0.50
2J27 24.00~28.80 0.90~1.20 47 0.45
2J23A For reference For reference 30 0.48

Fe-Co-Mo Magnetic Hysteresis Alloy Bar with size of OD 20-100mm

A-ONE Alloy, your parnter for high performance metals!
