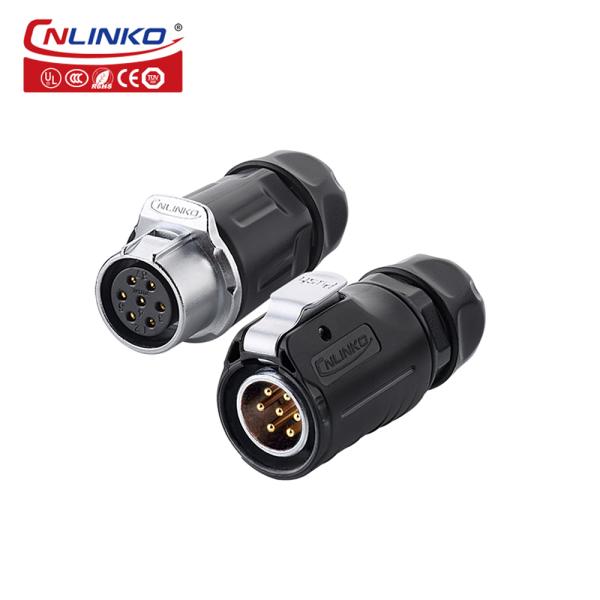

CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-20-C07PE-01-001
Certification :
CUL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$7.32-8.32
Shape :
ROUND
IP level :
ip68
Type :
XLR
Application :
Automotive
Gender :
male and female
Produce type :
splice connectors
Current rating(A) :
12A
Protection level :
IP67/IP65
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Operating voltage :
500V
Contact pin :
Copper alloy(gold-plated)
Description

CNLINKO M20 7 pin IP67 waterproof DC plug plastic shell connector 7 pin male connector

Product Description

CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male ConnectorCNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male ConnectorCNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male ConnectorCNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male ConnectorCNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male ConnectorCNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector

CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector

CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector

CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector

CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector


Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 1.0mm2 ~ 1.5mm2 /18~16AWG
Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ1.8×7
Current rating(A) 12A
Temperature rise

12A contact temperature below 30℃

15A contact temperature below 40℃

20A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <2.5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
