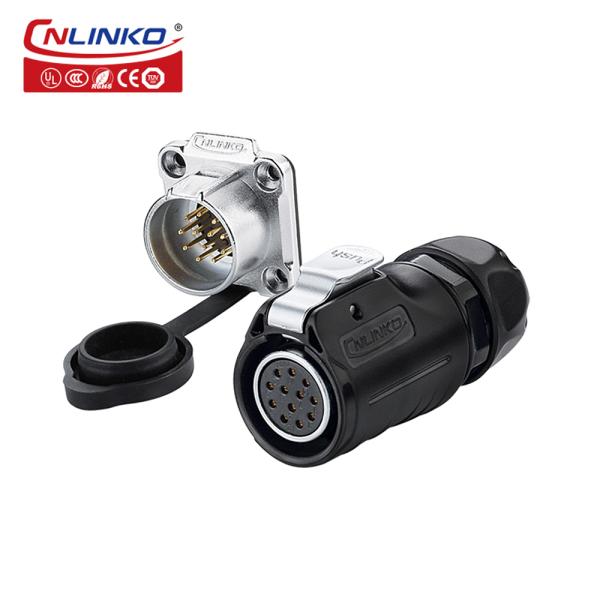

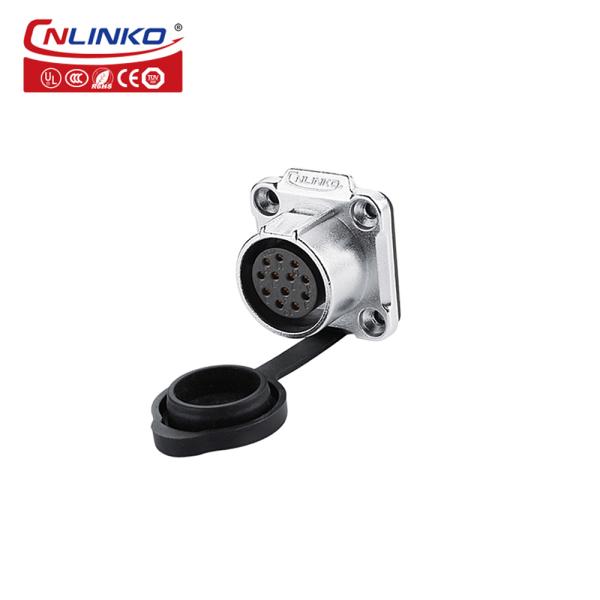

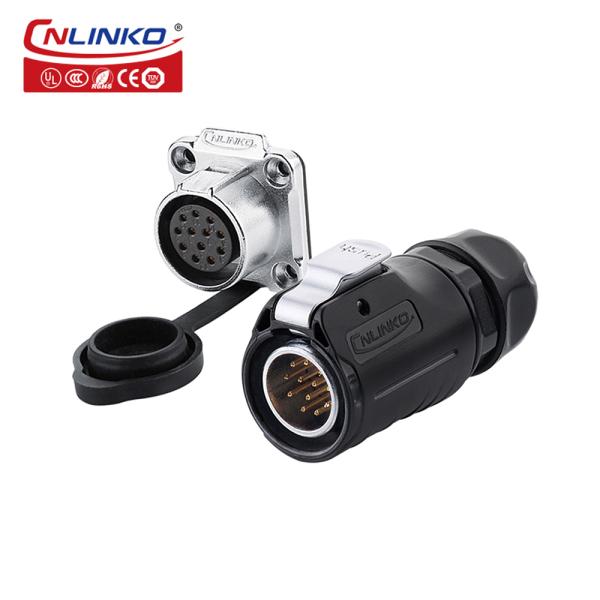

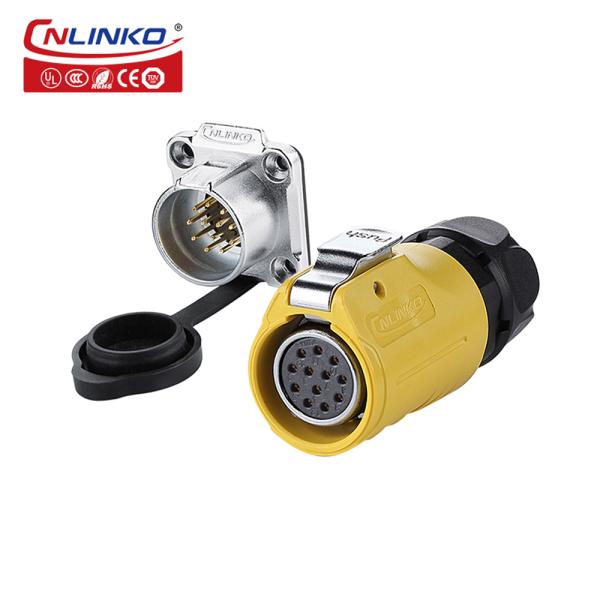

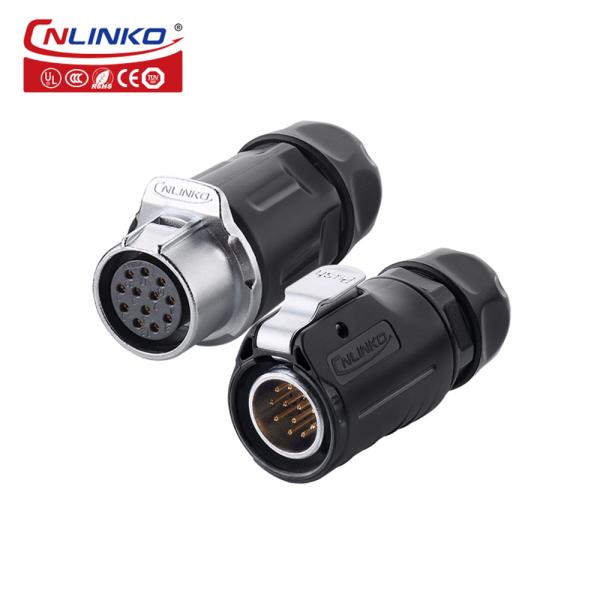

CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-20-C12PE-01-001, LP-20-J12SX-01-001
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$6.78-7.78
Type :
XLR
Application :
Signal
Gender :
male+female
Produce type :
splice connectors
Current rating(A) :
5A
Protection level :
IP65/IP67
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Operating voltage :
250V
Contact pin :
Copper alloy(gold-plated)
Description

CNLINKO M20 IP67 waterproof 12 pin Connector Welding Cable 12 Volt Panel Mount Female Connector

Product Description

CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female ConnectorCNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female ConnectorCNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female ConnectorCNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female ConnectorCNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector

CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector

CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector

CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector

CNLINKO M20 IP68 Waterproof 12 Pin Connector Welding Cable 12 Volt Panel Mount Female Connector


Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty Φ1.0×12
Current rating(A) 5A
Temperature rise /
Operating voltage(AC.V.rms) 400V
Withstanding voltage(AC.V)1min 1500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
