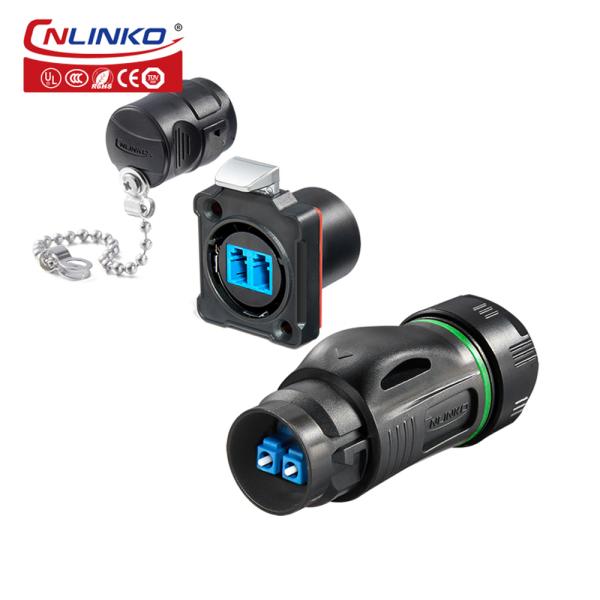

CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector

Specifications

Place of Origin :

Guangdong, China

Brand Name :

CNLINKO

Model Number :

BD-24-C/LC/016/PE-02-001

Certification :

CUL,UL,CE,ROHS,CCC,ISO9001

MOQ :

Price :

$6-7

Type :

usb

Application :

Signal, Industrial Connectivity

Gender :

Male

Protect level :

IP65/IP67

Housing and insulating parts :

high-performance engineering plastics

Hardware :

Zinc Alloy (pearl hard chrome)

Feature :

Easy Installation

Package :

Carton

Description

CNLINKO M24 Plastic IP67 waterproof LC male female connector Circular Fiber Optic connector

Features:

Multi-purpose design (3-core, RJ45 signal) for a wide range of application needs;
Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;
Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
IP67 protection level in connection state;
Rated current 25A;
One-piece streamlined design.

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG

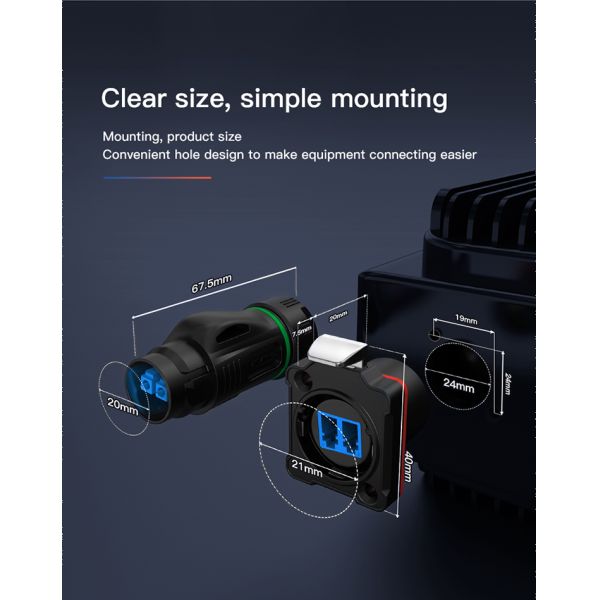

Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	2
Current rating(A)	/
Temperature rise	/
Operating voltage(AC.V.rms)	/
Withstanding voltage(AC.V)1min	/
Contact resistance	/
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)

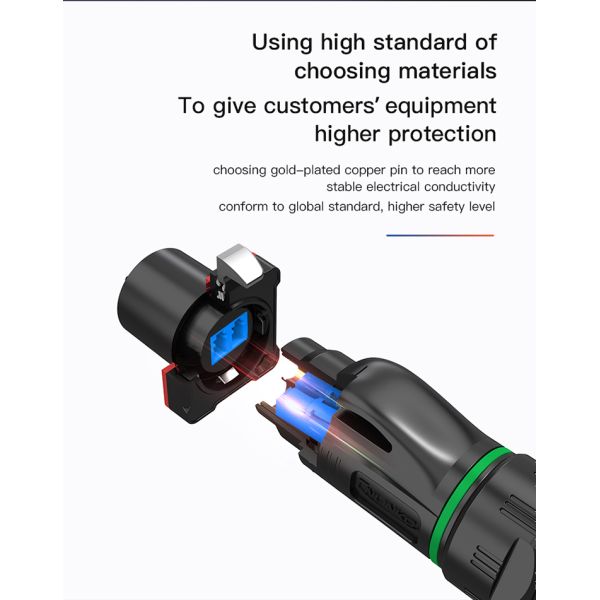

Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics

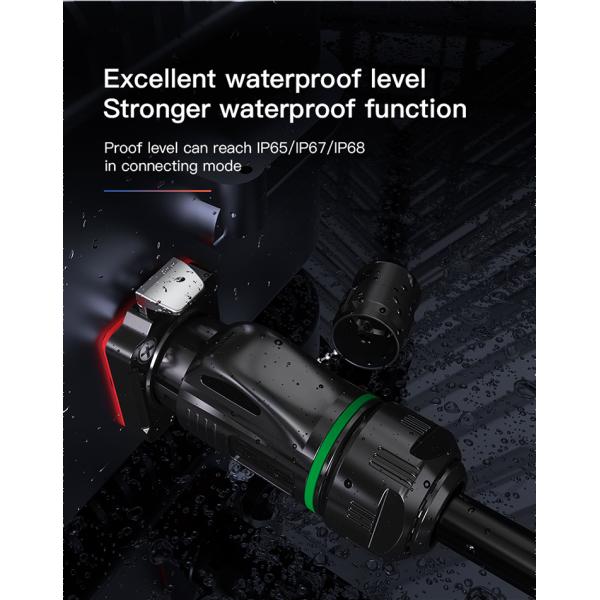

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector
