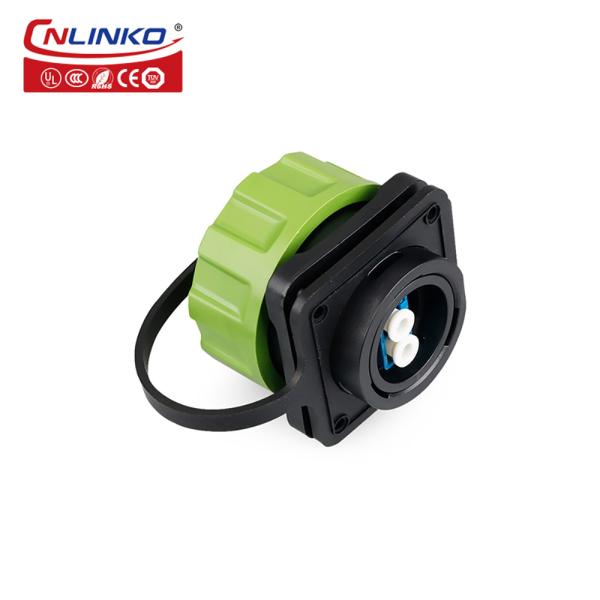

CNLINKO YM24 Male Female Panel Mount IP68 Waterproof Fiber Optic Cable Connector

Specifications

Place of Origin :

Guangdong, China

Brand Name :

CNLINKO

Model Number :

YM24-C-/LC/016/PE-42-001\YM-24-J-/LC/213/SX-42-401

Certification :

CUL,UL,CE,ROHS,CCC,ISO9001

MOQ :

Price :

US$6.07-7.08

Type :

XLR

Application :

Signal

Gender :

male and female

Protection level :

IP67/IP68

Shell & Insulated Parts :

High Performance Engineer Plastic

Hardware Matel :

Zinc Alloy (pearl hard chromium)

Connecting mode :

Quickly insert and pull out

Assembly :

Solder

Contact pin :

Copper alloy(gold-plated)

Connector type :

Fiber Optic

Package :

Carton

Description

CNLINKO YM24 male female panel mount IP67 Waterproof Fiber Optic Cable Connector

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP68/IP67
Cable specification	0.15-0.2mm² /26-24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	2
Current rating(A)	/
Temperature rise	/
Operating voltage(AC.V.rms)	/
Withstanding voltage(AC.V)1min	/
Contact resistance	/
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
