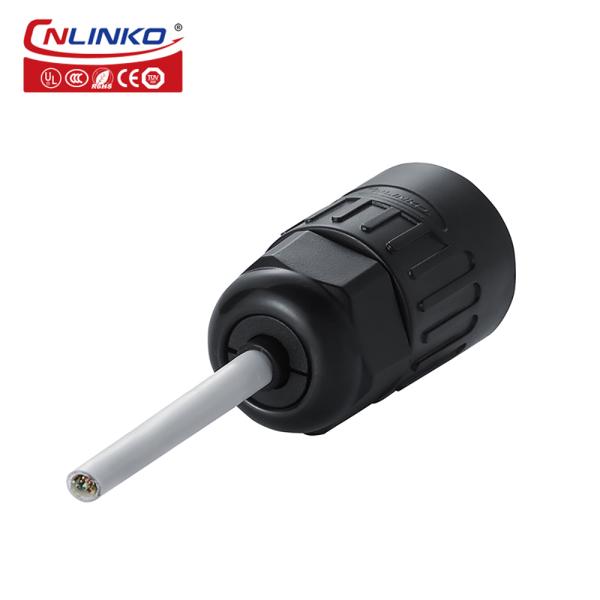

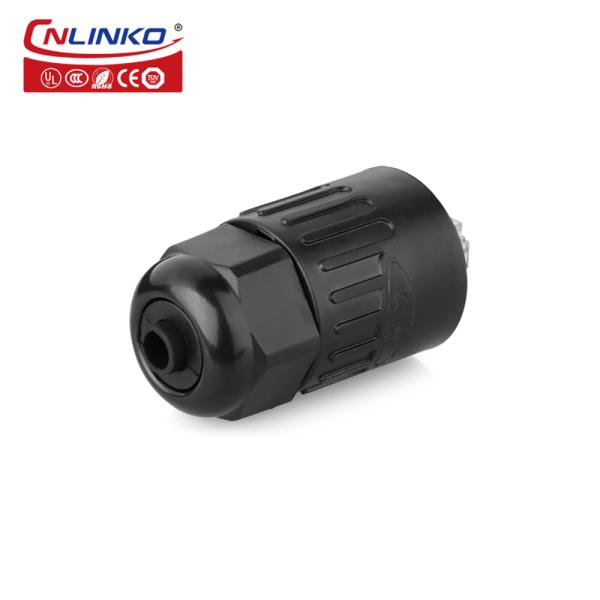

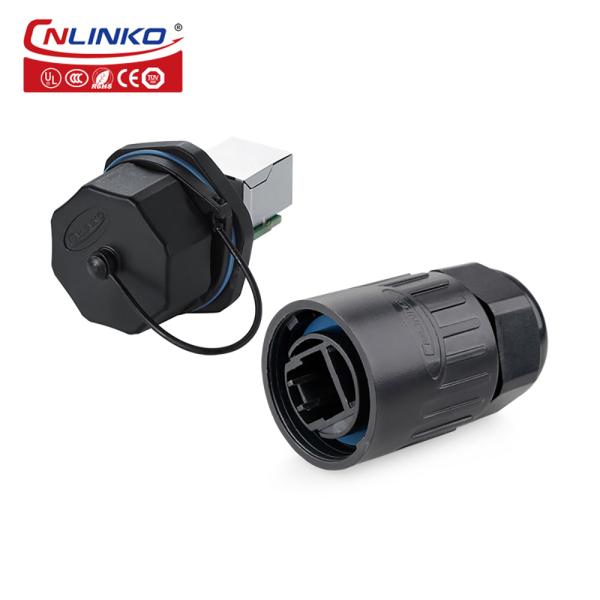

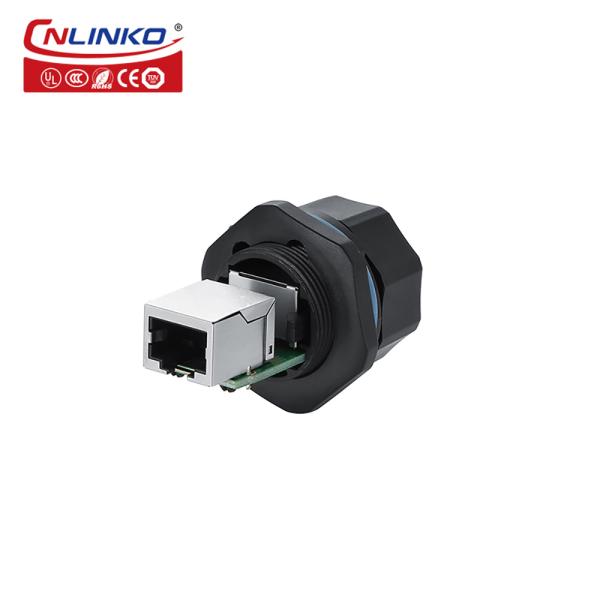

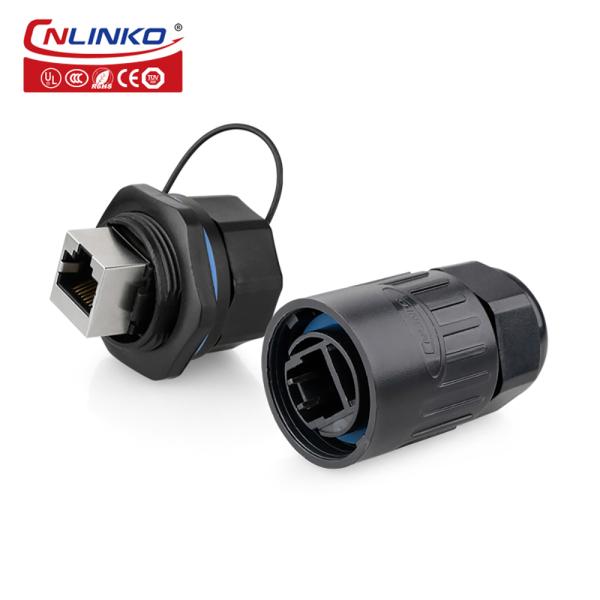

IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
IP68 Rj45 Waterproof Ethernet Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YT-RJ45-CPE-01-001&YT-RJ45-JSX-01-001
MOQ :
10
Price :
US$4.72-5.50
Shape :
ROUND
IP level :
ip68
Type :
RJ45
Application :
data
Gender :
male and female
Connector type :
RJ45
Withstanding Voltage :
1000V dc
Durability :
500 circles
Material :
PBT, BLACK
Contact :
Copper Alloy
Coupling ring :
PA66,BLACK
Working Temperature :
-40℃ ~ 80℃
Connecting mode :
quickly bayonet connect
waterproof rate :
ip68
Rated current :
1.5A
Description

Product Description

IP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet ConnectorIP68 Rj45 Waterproof Ethernet Connector

Specifications
Specifications
Connecting mode 1/4 bayonet connect Plug/unplug
Protection level IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty 8 Pin
Current rating(A) 5A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min /
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥750 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
