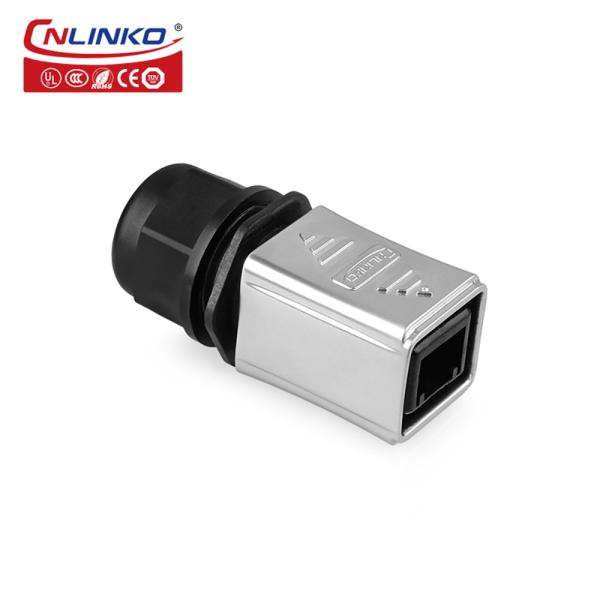

CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YT-RJ45-JSX-03-001
Certification :
CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$8.18-12.36
Type :
RJ45
Application :
Audio & Video, Industrial Connectivity
Gender :
Female
Connector type :
RJ45 connector
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Item :
RJ45 Wifi Adapter
Contact pin :
Copper alloy(gold-plated)
Feature :
Easy Installation
Package :
Carton
Description

CNLINKO Waterproof IP65 Ethernet Wire RJ45 connector for Wifi Adapter

Product Description

According to EIA568B each ISO/IEC11801 standard conforms to D grade or CAT3e, compatible with CAT5e.
D-panel connectors, metal housing and locking system are available.
Shielding system - high frequency noise immunity and electromagnetic interference protection.
Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
The cable protector has a sturdy die-cast housing and a unique ferrule clip.
Waterproof and non-waterproof design, the product meets IP65/IP67 protection level in the assembled state.
The rugged connection system provides a solution for broadband data transmission in harsh environments.
The connector does not have a network cable and a crystal head.

CNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi AdapterCNLINKO Waterproof IP68 Ethernet Wire RJ45 Connector for Wifi Adapter

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 26~24AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty 8 Pin
Current rating(A) 5A
Operating voltage(AC.V.rms) 1000V
Withstand voltage(AC.V)1min /
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
