CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-28-C03PE-21-001
Certification :
UL,CE,CCC,CUL
MOQ :
2
Price :
$16.80-17.80
Type :
Power
Application :
Industrial
Gender :
male and female, male and female
type :
waterproof power connector
Protection level :
IP65/IP67
Current rate :
35A
Voltage :
500V
flammability rating :
UL94-V0
Durability :
>500
Feature :
Easy Installation
Package :
Carton Box
Description

CNLINKO M28 3 Pin Male and female 35A plug socket IP65 waterproof power connector

Product Description

CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector

Specifications
Specifications

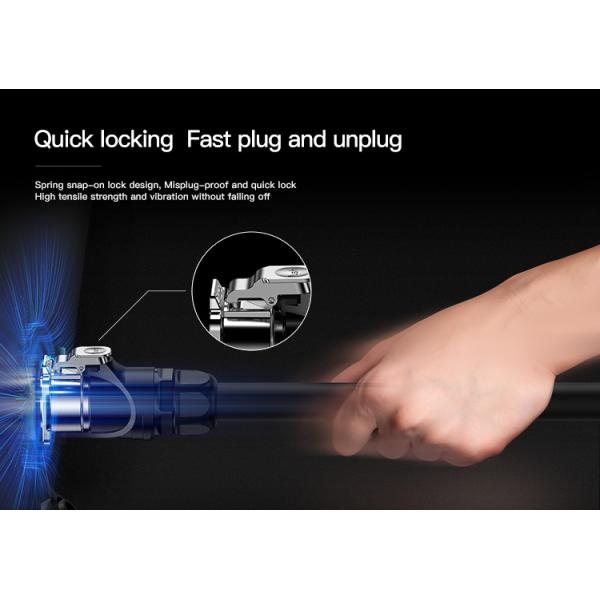

Connecting mode Latching Lock connect
Protection level IP65/IP67

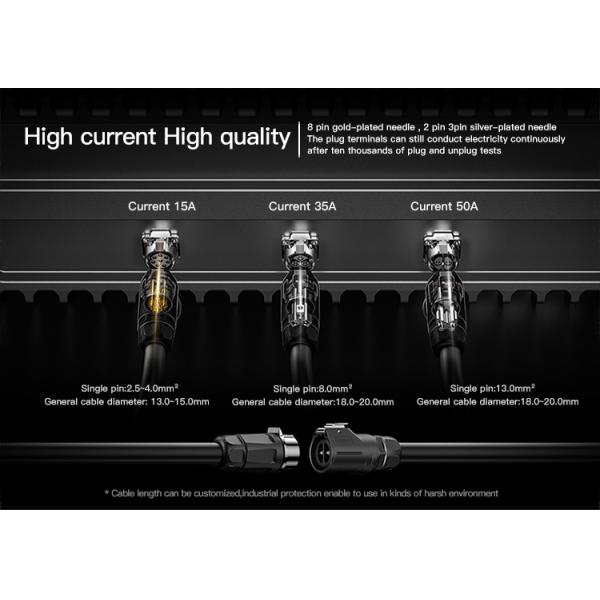

Cable specification 8mm2 /8AWG

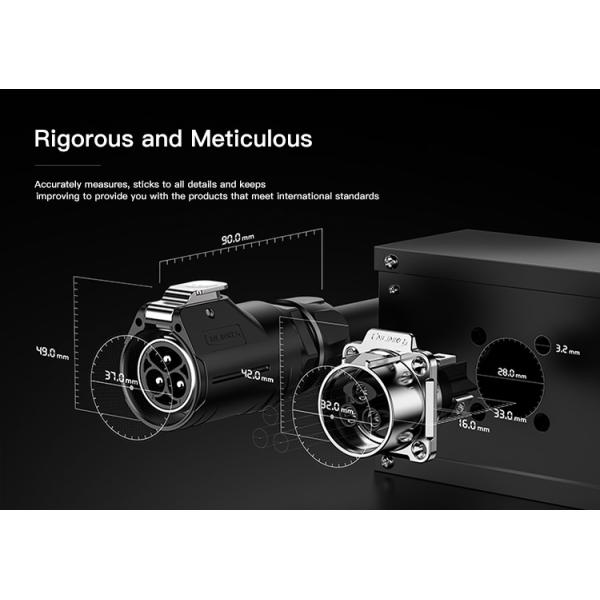

Diameter range Φ18mm ~Φ20mm
Contact diameter×Qty Φ4.0×3
Current rating(A) 35A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C

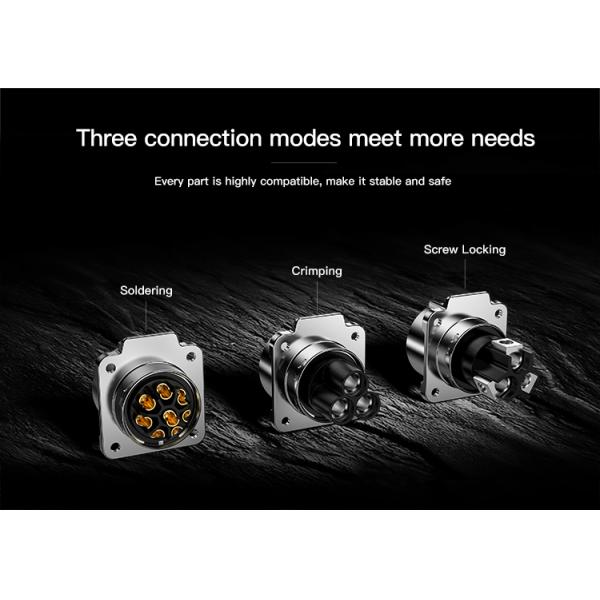

Method of connecting cable Soldering
Prevent the combustion level UL94-V0

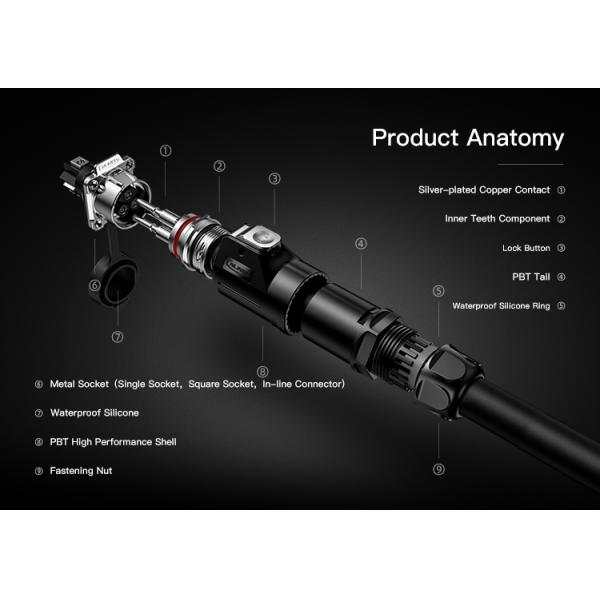

Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics

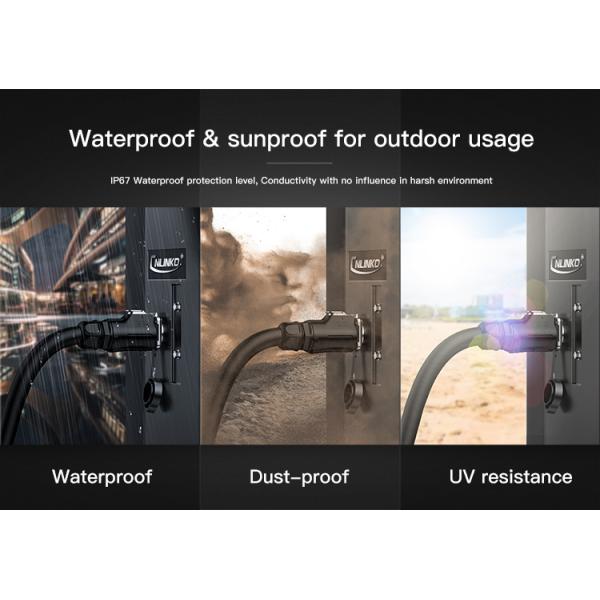

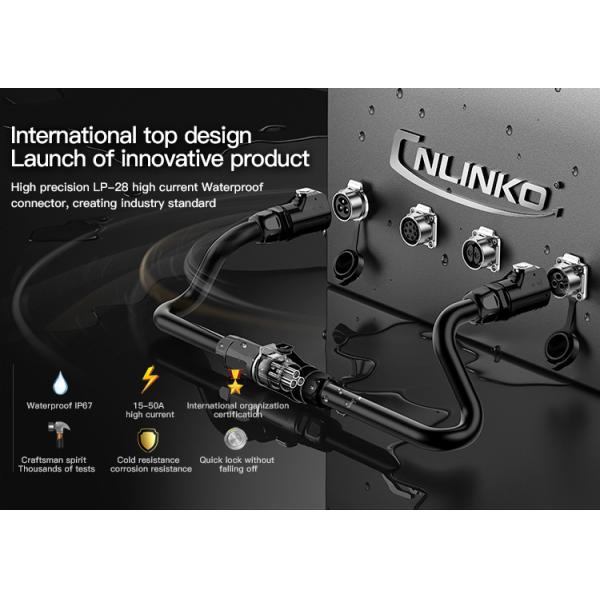

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries

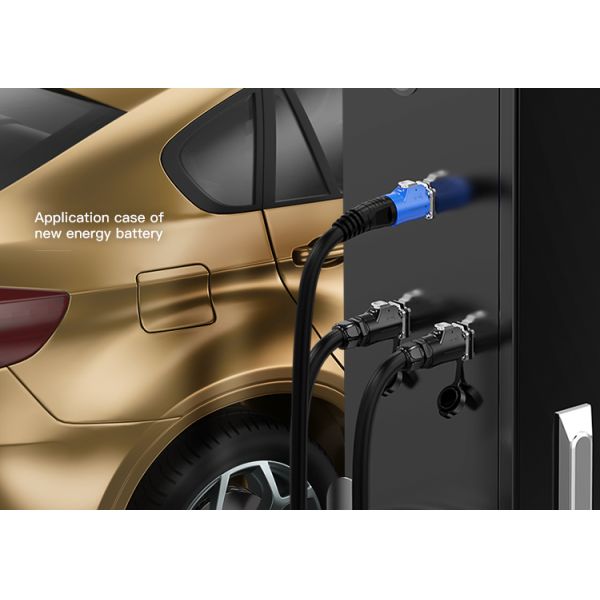

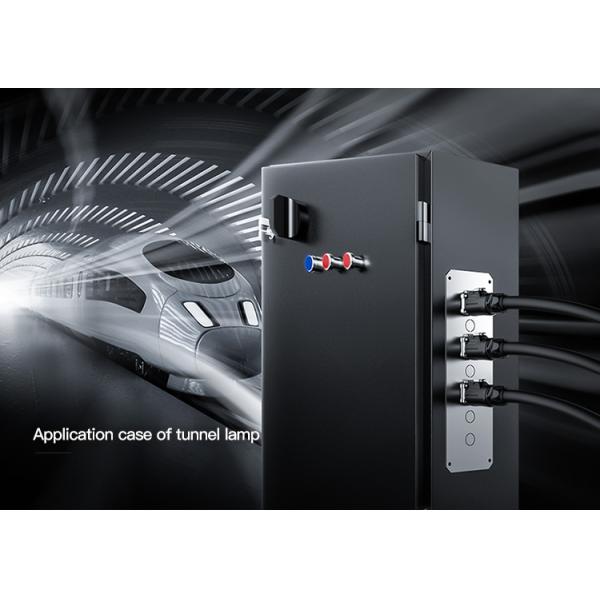

Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
