Specifications
Brand Name :
Symank
Model Number :
JKD-516Z
Certification :
CE/ROHS/SGS/UKCA
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50K/Month
Delivery Time :
10 Days
Packaging Details :
Carton/Color Box
Name :
Zigbee Smoke Detector
Material :
ABS fireproof
Sensitivity :
Complies with EN14604 standards
Weight :
About 180 grams
Dimensions :
Approximately 120mm diameter x 40mm height
Operating Voltage :
3V DC
Environmental Temperature :
-10℃ ~ +50℃
Operating Temperature Range :
-10°C to 50°C (14°F to 122°F)
Battery Life :
Up to 3 years
Certifications :
SGS Listed, EN Compliant
Reset Time :
less than 1 second
Humidity Range :
Up to 95% non-condensing
Test Button :
Yes, for manual testing
Detection Type :
Photoelectric
Description

Product Overview

The Smoke Zigbee Detector is a smart fire alarm solution developed specifically for connected safety systems. Utilizing Zigbee wireless communication, this Smoke Zigbee Detector connects directly to a gateway, enabling real-time alerts and coordinated responses across multiple devices. Designed according to EN 14604 standards and SGS-tested, the Smoke Zigbee Detector delivers dependable fire detection for international B2B markets. With a compact form factor and 10-year operational life, this Smoke Zigbee Detector is optimized for long-term deployment in residential and commercial environments.

Product Advantages

This Smoke Zigbee Detector adopts a high-precision photoelectric smoke sensor, providing fast response to visible smoke while minimizing nuisance alarms. The device operates with extremely low power consumption, supported by dual AA alkaline batteries, ensuring consistent performance throughout its service life. The Smoke Zigbee Detector features a clear LED indicator and a loud audible alarm, allowing immediate local alerts even without network connectivity. Its temporary mute function improves usability in everyday environments. These features position the Smoke Zigbee Detector as a reliable and user-friendly option for professional fire safety systems.

Factory Capability

Our factory specializes in smart fire detection products, offering end-to-end manufacturing for the Smoke Zigbee Detector. We provide ODM services including PCB design, firmware customization, and Zigbee profile adaptation. OEM branding, packaging design, and compliance documentation are also available. Each Smoke Zigbee Detector is produced under ISO-controlled processes, ensuring consistent quality for bulk orders. Dedicated after-sales teams support partners with technical training, documentation, and long-term supply stability.

Product Application

The Smoke Zigbee Detector is ideal for smart apartments, student housing, hospitality projects, and office buildings. When deployed as part of a Zigbee ecosystem, the Smoke Zigbee Detector enables centralized alarm management and remote notifications. Its wide operating temperature range allows installation in diverse environments. Property managers and system integrators value the Smoke Zigbee Detector for its reliability, certification, and ease of integration.

Product Parameters

Parameter Specification
Wireless Standard Zigbee HA
Battery Configuration 2× AA 1.5V
Smoke Sensitivity 0.25dB/m
Alarm Current <65mA
Alarm Silence Time ~10 Minutes
Product Lifetime 10 Years
Installation Method Ceiling / Wall


Send your message to this supplier
Send Now

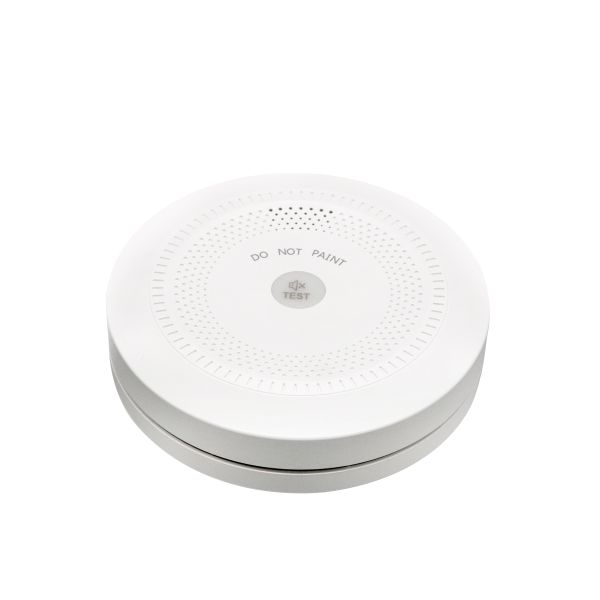

EN14604 Certified Zigbee Smoke Detector 3 Year Smart Fire Safety Smoke Alarms
