Specifications
Brand Name :
Symank
Model Number :
JKD-513COM-Z
Certification :
CE/ROHS/SGS/UKCA/RED
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50K/Month
Delivery Time :
10 Days
Packaging Details :
Carton/Color Box
Detectionangle :
120 degrees
Productname :
Zigbee Detector
Humidityrange :
0% to 95% non-condensing
Compatibility :
Works with Zigbee hubs and gateways
Wirelessfrequency :
2.4 GHz
Responsetime :
Less than 1 second
Batterytype :
CR123A
Weight :
200 grams
Mountingoptions :
Wall mount or ceiling
Powersupply :
Battery Powered
Protocol :
Zigbee 3.0
Batterylife :
Up to 2 years
Operatingtemperature :
-10°C to 50°C
Detectionrange :
10 meters
Dimensions :
dia 105mm*40mm
Description

Product Overview

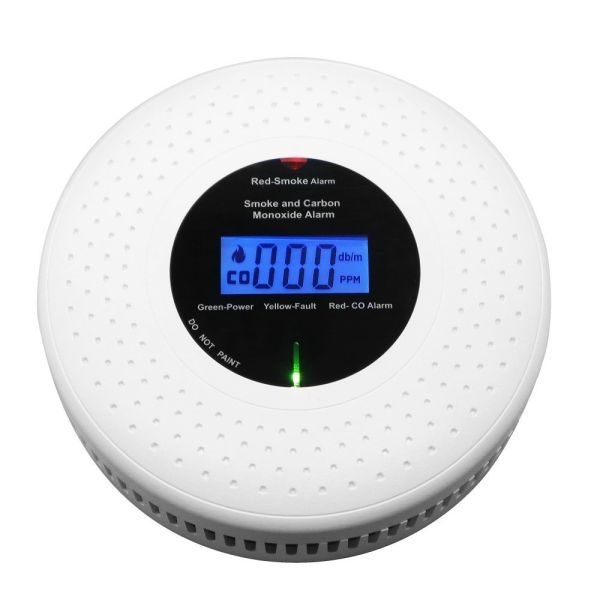

The Smoke Carbon Monoxide Zigbee Detector is an advanced dual-sensor fire-safety device designed for modern connected homes and commercial environments. Using photoelectric smoke detection and an electrochemical CO module, this Smoke Carbon Monoxide Zigbee Detector provides highly reliable protection against both smoldering fires and carbon monoxide leaks. It integrates seamlessly with a Zigbee home gateway as well as the widely used TUYA app, enabling remote monitoring and smart-home automation. Built for a 10-year service life, this Smoke Carbon Monoxide Zigbee Detector complies with EN 14604:2005/AC:2008 and EN 50291-1:2018 and is officially tested by SGS labs. With strong wireless stability and low-power architecture, the Smoke Carbon Monoxide Zigbee Detector ensures long-term, real-time security for B2B projects such as apartments, hotels, villas, and IoT system integrations.

Product Advantages

A major strength of this Smoke Carbon Monoxide Zigbee Detector is its high responsiveness. The photoelectric smoke sensor reacts rapidly to 0.25dB/m smoke concentrations, while the CO module triggers alarms at 50ppm, 100ppm, and 300ppm according to European standards. The integrated Zigbee chip offers fast pairing, wide communication range, and reliable connectivity, enabling the Smoke Carbon Monoxide Zigbee Detector to synchronize instantly with cloud platforms. The device also includes a 10-minute hush function, ≥85dB alarm at 3 meters, and robust temperature and humidity tolerance. For B2B clients, the Smoke Carbon Monoxide Zigbee Detector provides an excellent balance of advanced technology, accuracy, smart control, and long-term durability.

Factory Capability

Our factory specializes in OEM and ODM development for smart fire-safety products. We support hardware customization, firmware development, packaging design, gateway integration, private-label production, and multi-language certification support. With an automated SMT line, injection workshop, and SGS-certified testing processes, we guarantee that every Smoke Carbon Monoxide Zigbee Detector meets stringent quality requirements. We also provide rapid sampling, cloud API support, and long-term after-sales service for commercial distributors, wholesalers, and smart-home brands seeking to expand their product lines.

Product Parameters

Parameter Specification
Power Supply 10-year sealed lithium battery
Detection Method Photoelectric (smoke) + Electrochemical (CO)
Alarm Sound ≥85dB at 3m
Communication Zigbee wireless, TUYA-enabled
Operating Temp –10°C to +50°C
Sensitivity 0.25dB/m smoke
Dimensions Φ105×39mm
Warranty 30 months
