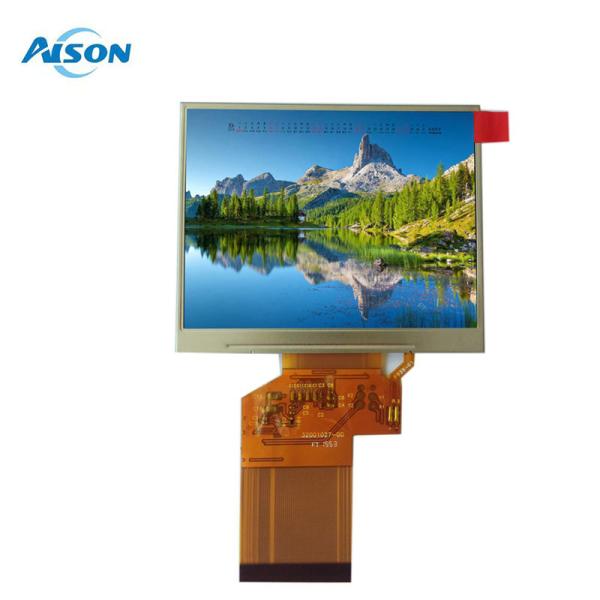

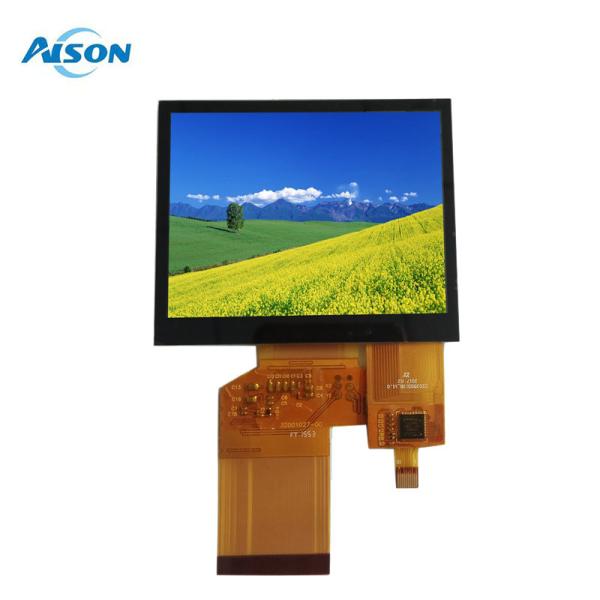

3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
Specifications
Brand Name :
AISON
Model Number :
Z035VG06
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister
Name :
3.5 inch 640x480 LCD Module
Resolution :
640x480
Outline dimension :
76.90*63.9*3.26mm
Active area :
70.08 x 52.56mm
Interface :
MCU/RGB
Viewing angle :
80/80/80/80
Brightness :
1000cd/m2
Display mode :
TFT,Normally Black
Contrast Ratio :
800:1
IC or Equivalent :
NV3052C
Connection :
Plug-in FPC
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C

Display General Description

  • High-Resolution Display: This 3.5-inch IPS TFT LCD module boasts a 640x480 resolution, providing a clear and vibrant display with 262K colors, ideal for various applications such as gaming, signage, and more.
  • Compact Design: The 54-pin interface of this module allows for seamless integration with various systems, making it a convenient option for users seeking a compact display solution.
  • Energy Efficiency: The NV3052C driver chip used in this module ensures optimal power consumption, reducing energy costs and heat generation, while maintaining high display performance.
  • Durable and Reliable: With a 6-LED backlight and a robust design, this module is built to withstand the demands of continuous use, ensuring a long lifespan and minimal maintenance.
  • Customizable and Versatile: This display module is suitable for various applications, including gaming products, and can be easily integrated into existing systems, making it an excellent choice for users seeking a customizable display solution.

General Data

Model Name 3.5 inch 640x480 TFT LCD Display
Resolution 640x480
Model Size (W*H*T) 76.90*63.9*3.26mm
Display Area (W*H) 70.08 x 52.56mm
Interface RGB
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 1000 cd/m2
Pin number 54 pin
Driver IC NV3052C
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃


Drawing

3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C

Product Details

3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C

TFT Applications

Recommended Applications: Outdoor Measurement Instruments & Industrial Equipment: High brightness and stable display performance make this module ideal for use in bright sunlight or complex environments, ensuring long-lasting readability.


Portable Testing Equipment: Compact and lightweight, this module is perfect for portable testing needs, offering reliable display performance for fieldwork and routine operations.

3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
