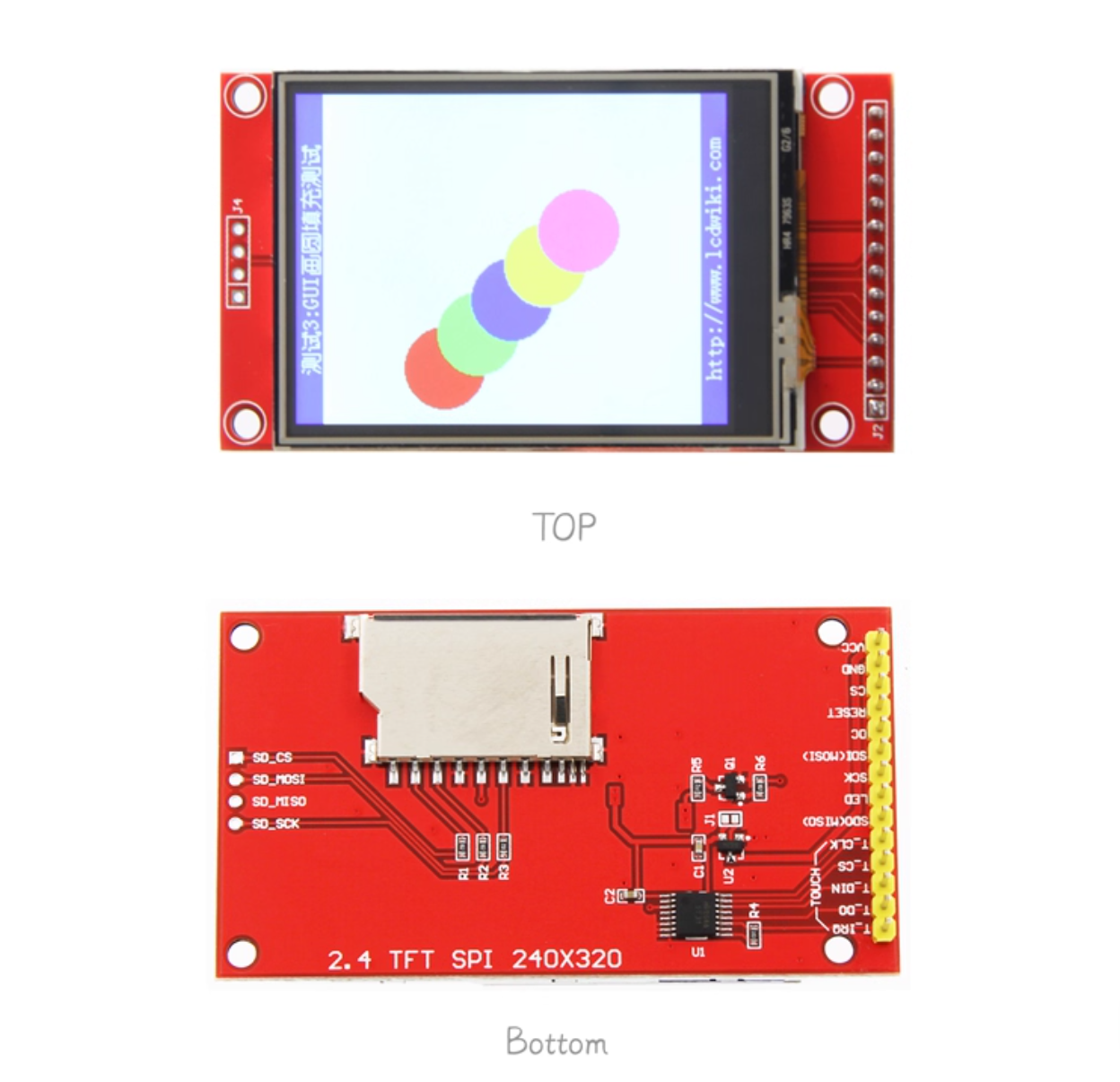

2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
Specifications
Brand Name :
AISON
Model Number :
MSP2401/MSP2402
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton
Name :
2.4 inch SPI LCD Module
Resolution :
320x240
Module PCB Size :
77.18x42.72(mm)
Active area :
36.72x48.96(mm)
Interface :
4-wire SPI interface
Viewing Angle :
55/65/65/65
Display Mode :
TFT,Normally White
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

2.2 inch /2.4 inch /2.8 inch /3.2 inch /3.5 inch /4.0 inch SPI TFT LCD Module with PCB Board

Options:

2.2 inch SPI LCD Module without touch;2.2 inch SPI Module display with RTP

2.4 inch SPI LCD Module without touch;2.4 inch SPI Module display with RTP

2.8 inch SPI LCD Module without touch;2.8 inch SPI Module display with RTP

3.2 inch SPI LCD Module without touch;3.2 inch SPI Module display with RTP

3.5 inch SPI LCD Module without touch;3.5 inch SPI Module display with RTP

4.0 inch SPI LCD Module without touch;4.0 inch SPI Module display with RTP

General Description

MSP2401/MSP2402 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistorliquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit abacklight unit, The panel size is 2.4 inch and thresolution is 240x320. High image quality a-Si TFT LCD module. Partial-screen display function is available. Sleep and Stand-by modes are available for power saving.

Product Description

* 2.4-inch color screen,support 65K color display,display rich colors


* 320X240 resolution, optional touch function

* Using the SPI serial bus, it only takes a few IOs to illuminate the display

* Easy to expand the experiment with SD card slot

* Provide a rich sample program
* Military-grade process standards, long-term stable work

* Provide underlying driver technical support

Product Parameters

Name Parameter
Display Color RGB 65K color
SKU MSP2401/MSP2402
Screen Size 2.4(inch)
Type TFT
Driver IC ILI9341
Resolution 320*240 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 36.72x48.96(mm)
Module PCB Size 77.18x42.72(mm)
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
VCC power voltage 3.3V~5V
Logic IO port voltage 3.3V(TTL)
Power Consumption TBD
Rough Weight(Package containing) 22(g)

Interface Definition

Number Pin Label Description
1 VCC 5V/3.3V power input
2 GND Ground
3 CS LCD chip select signal, low level enable
4 RESET LCD reset signal, low level reset
5 DC/RS high level: register, low level: data
6 SDI/MOSI SPI bus write data signal
7 SCK SPI bus clock signal
8 LED if not controlled, connect 3.3V always bright
9 SDO/MISO SPI bus read data signal, if you do not need to the read function, you can not connect it
