2.2 inch SPI Module ILI9341Driver IC with PCB Board
2.2 inch SPI Module ILI9341Driver IC with PCB Board
2.2 inch SPI Module ILI9341Driver IC with PCB Board
2.2 inch SPI Module ILI9341Driver IC with PCB Board
Specifications
Brand Name :
AISON
Model Number :
MSP2202
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton
Name :
2.2 inch SPI LCD Module
Resolution :
320x240
Module PCB Size :
40.10x67.20(mm)
Active area :
33.84x45.12(mm)
Interface :
SPI 4-line
Viewing Angle :
55/65/65/65
Display Mode :
TFT,Normally White
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

2.2 inch /2.4 inch /2.8 inch /3.2 inch /3.5 inch /4.0 inch SPI TFT LCD Module with PCB Board

Options:

2.2 inch SPI LCD Module without touch;2.2 inch SPI Module display with RTP

2.4 inch SPI LCD Module without touch;2.4 inch SPI Module display with RTP

2.8 inch SPI LCD Module without touch;2.8 inch SPI Module display with RTP

3.2 inch SPI LCD Module without touch;3.2 inch SPI Module display with RTP

3.5 inch SPI LCD Module without touch;3.5 inch SPI Module display with RTP

4.0 inch SPI LCD Module without touch;4.0 inch SPI Module display with RTP

General Description

MSP2202 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistorliquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit abacklight unit, The panel size is 2.2inch and thresolution is 240x320. High image quality a-Si TFT LCD module. Partial-screen display function is available. Sleep and Stand-by modes are available for power saving.

Product Description

  • 2.2-inch color screen,support 65K color display,display rich colors
  • 320X240 resolution, clear display
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

Name Parameter
Display Color RGB 65K color
SKU MSP2202
Screen Size 2.2(inch)
Type TFT
Driver IC ILI9341
Resolution 320*240 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 33.84x45.12(mm)
Module PCB Size 40.10x67.20(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
VCC power voltage 3.3V~5V
Logic IO port voltage 3.3V(TTL)
Power Consumption TBD
Rough Weight(Package containing) 22(g)

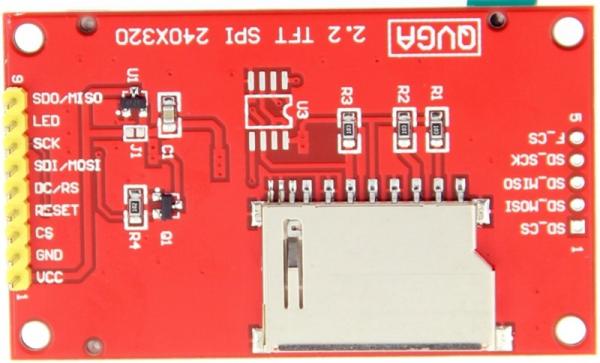

Interface Definition

Number Pin Label Description
1 VCC 5V/3.3V power input
2 GND Ground
3 CS LCD chip select signal, low level enable
4 RESET LCD reset signal, low level reset
5 DC/RS high level: register, low level: data
6 SDI/MOSI SPI bus write data signal
7 SCK SPI bus clock signal
8 LED if not controlled, connect 3.3V always bright
9 SDO/MISO SPI bus read data signal, if you do not need to the read function, you can not connect it
