3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
Specifications
Brand Name :
AISON
Model Number :
Z035Q20
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister
Name :
3.5 Inch IPS TFT LCD Display
Resolution :
320x240
Outline dimension :
76.90*63.9*3.26mm
Active area :
70.08 x 52.56mm
Interface :
24-bit RGB
Viewing angle :
80/80/80/80
Brightness :
350cd/m2
Display mode :
TFT,Normally Black
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

3.5-inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen

Display General Description

General Data

Model Name 3.5 inch IPS TFT Display
Resolution 320x240
Model Size (W*H*T) 76.90*63.9*3.26mm
Display Area (W*H) 70.08 x 52.56mm
Interface RGB 24 bit
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 350 cd/m2
Pin number 40 pin
Driver IC

ST7272A
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃

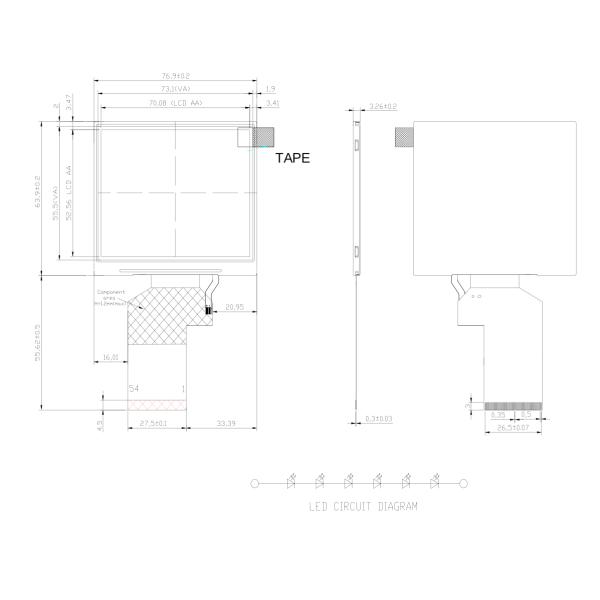

Drawing
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen

Product Details

3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen

TFT Applications

This 3.5 inch IPS TFT Display can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface.
