3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
Specifications
Brand Name :
AISON
Model Number :
Z035VG06
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister
Name :
3.5 Inch IPS TFT LCD Display
Resolution :
640x480
Outline dimension :
76.90*63.9*3.26mm
Active area :
70.08 x 52.56mm
Interface :
MCU/RGB
Viewing angle :
80/80/80/80
Brightness :
1000cd/m2
Display mode :
TFT,Normally Black
Contrast Ratio :
800:1
IC or Equivalent :
NV3052C
Connection :
Plug-in FPC
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

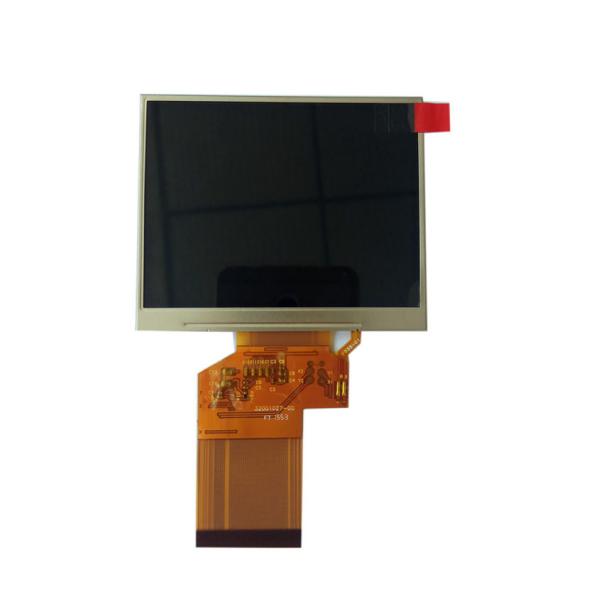

3.5 inch IPS Full Viewing 640x480 TFT Display with RGB Interface

Display General Description
Z035VG06 is 640x480 pixels 3.5 inch IPS tft lcd display with driver NV3052C,RGB interface.It's optional capacitive touch panel with controller, resistive touch panel,FPC connector,superior display quality,full view angle.Easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM.
The IPS panel has the advantage of wide viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical). Z035VG06 can operate at temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃. .

General Data

Model Name 3.5 inch IPS TFT Display
Resolution 640x480
Model Size (W*H*T) 76.90*63.9*3.26mm
Display Area (W*H) 70.08 x 52.56mm
Interface RGB
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 1000 cd/m2
Pin number 54 pin
Driver IC NV3052C
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃

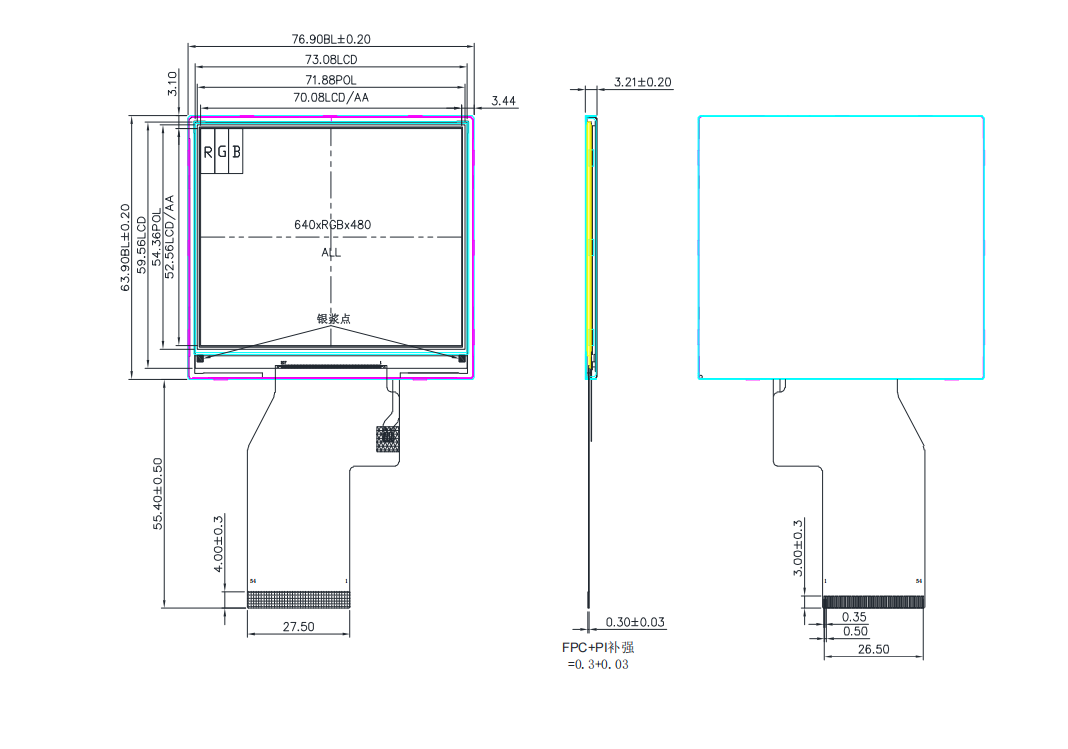

Drawing

3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface

Product Details

3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface

TFT Applications

This 3.5 inch IPS TFT Display can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface.

3.5 Inch IPS TFT LCD Display 640x480 TFT LCD Capacitive Touchscreen 1000 Cd/M2 With RGB Interface
