1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch
1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch
1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch
1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch
1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch
1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch
Specifications
Brand Name :
AISON
Model Number :
Z035VG06
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister
Name :
High Brightness LCD Module
Resolution :
640x480
Outline dimension :
76.90*63.9*3.26mm
Active area :
70.08 x 52.56mm
Interface :
MCU/RGB
Viewing angle :
80/80/80/80
Brightness :
1000cd/m2
Display mode :
TFT,Normally Black
Contrast Ratio :
800:1
IC or Equivalent :
NV3052C
Connection :
Plug-in FPC
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

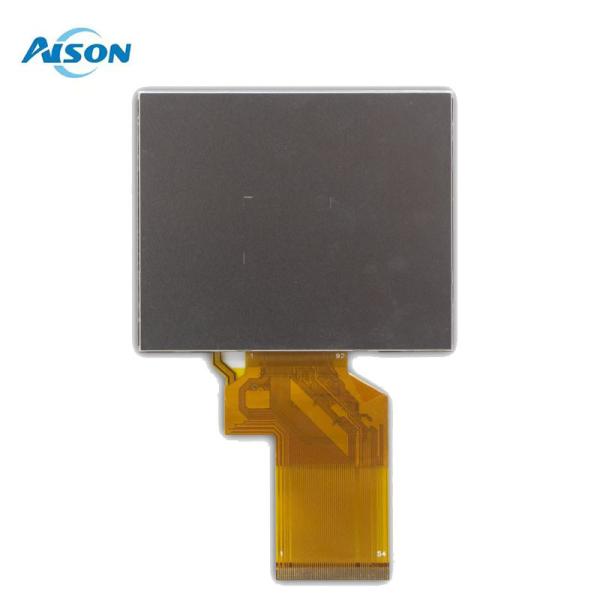

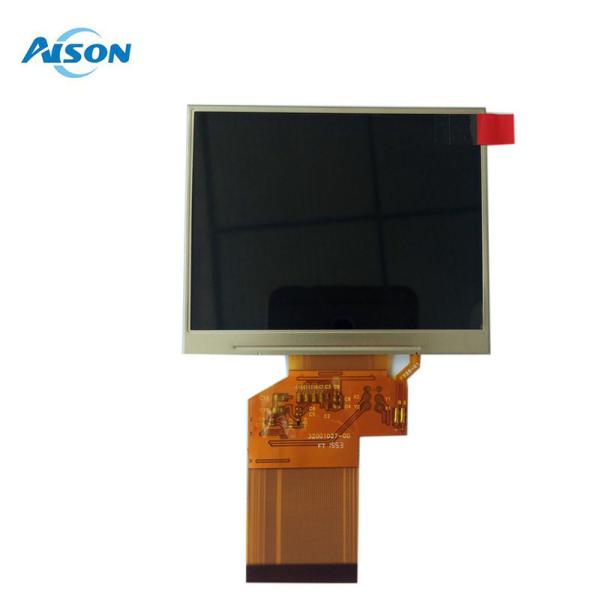

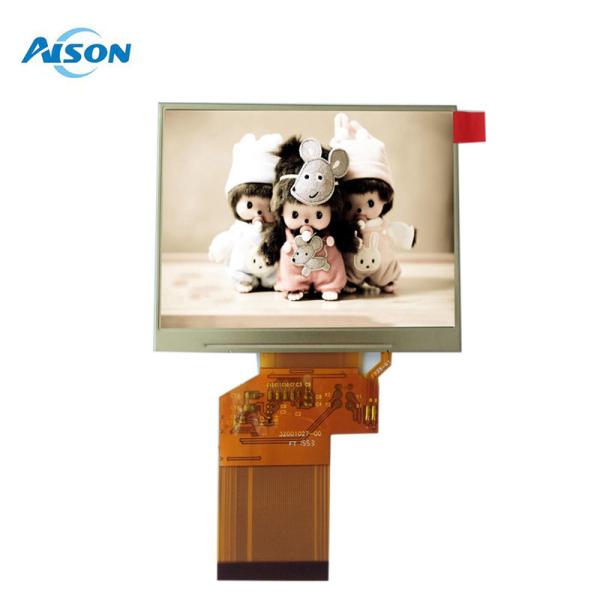

3.5 inch High Brightness RGB TFT LCD Display Module 640x480 Resolution

Display General Description
Z035VG06 is 640x480 pixels 3.5 inch IPS tft lcd display with driver NV3052C,RGB interface.It's optional capacitive touch panel with controller, resistive touch panel,FPC connector,superior display quality,full view angle.Easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM.
It provides excellent visibility in outdoor sunlight or challenging industrial environments.
The IPS panel has the advantage of wide viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical). Z035VG06 can operate at temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃. .

General Data

Model Name 3.5 inch 340x480 TFT LCD
Resolution 640x480
Model Size (W*H*T) 76.90*63.9*3.26mm
Display Area (W*H) 70.08 x 52.56mm
Interface RGB
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 1000 cd/m2
Pin number 54 pin
Driver IC NV3052C
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃


Drawing

1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch

Product Details

1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch

TFT Applications

Recommended Applications: Outdoor Measurement Instruments & Industrial Equipment: High brightness and stable display performance make this module ideal for use in bright sunlight or complex environments, ensuring long-lasting readability.


Portable Testing Equipment: Compact and lightweight, this module is perfect for portable testing needs, offering reliable display performance for fieldwork and routine operations.

1000 Cd/M2 High Brightness LCD Module 640x480 TFT Display 3.5 Inch
