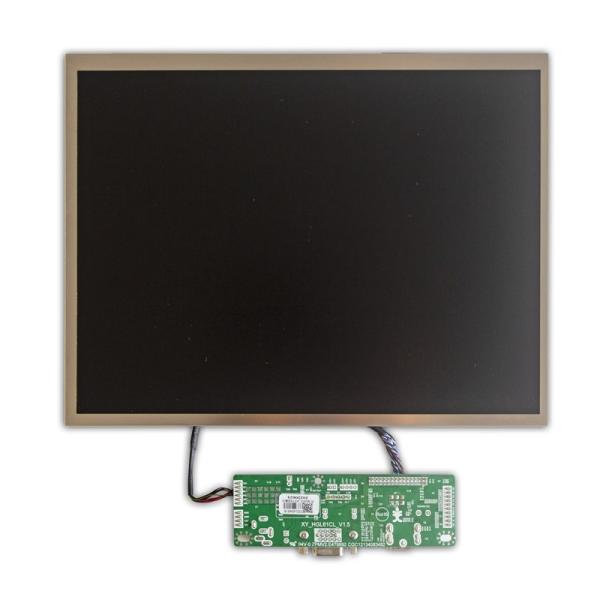

12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface
12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface
12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface
12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface
12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface
12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface
Specifications
Brand Name :
AISON
Model Number :
Z121WX01J
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
12.1 Inch Display
Product :
12.1 inch TFT LCD Display
Resolution :
1024x768
Outline dimension :
160.5*204*8.6mm
Active area :
245.76x 184.32mm
Interface :
LVDS
Display Mode :
Normally Black, Transmissive
Brightness :
650 cd/m2
Contrast Ratio :
900:1
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

12.1 inch 1024x768 TFT Display Module LVDS Interface for Industral Application

Display General Description

  • High-Resolution Display: The 12.1 inch TFT LCD Display features a high-resolution 1024x768 display, providing clear and crisp visuals for a variety of applications, including industrial, medical, and smart home use.
  • LVDS Interface : The display offers LVDS interface , providing flexibility for easy integration with various systems and devices, including industrial and medical equipment.
  • This 12.1 inch LCD Module is operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.This 12.1 inch IPS lcd module is built to withstand diverse environmental conditions.
  • This 12.1 inch tft display is adopted IPS panel which is having the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 900:1 (typical value), brightness 650 nits (minimum value), anti-glare surface panel, aspect ratio 4:3.
  • Long-Lasting Performance: Backed by a 12-month warranty, this touch screen module is built to last, with a brightness of 650cd/m2, ensuring reliable performance over an extended period.


General Data

Product Name 12.1 inch TFT Display
Resolution 1024x768
Model Size (W*H*T)
160.5*204*8.6 mm
Display Area (W*H)
245.76x 184.32 mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing IPS/ALL
Brightness 650 cd/m2
Pin number 20
Viewing Angle 85/85/85/85
BACKLIGHT TYPE 44 WHITE LED
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree



Drawing

12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface

Product Details
12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface

TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.


12.1 Inch Display 900:1 1024x768 Display 650 Cd/M2 LVDS Interface
