REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts
Specifications
Place of Origin :
CHINA
MOQ :
100 PCS
Certification :
CE
Customization :
Available for specific current, cable size, and branding
Application Fields :
Electric forklift, Industrial battery packs
Current Rating :
80A, 160A, 320A
Price :
Depends on length & MOQ, welcome your inquiry
Voltage Rating :
12V–48V / 80V DC
Supply Ability :
30000 PCS / Month
Wire Gauge :
80A: 6AWG–4AWG 160A: 4AWG–2AWG 320A: 1/0AWG–2/0AWG
Model Number :
REMA-DIN-80A-320A
Payment Terms :
T/T
Brand Name :
RITIAN
Product Type :
Electric Forklift Battery Connector
Delivery Time :
5-8 days for the samples, 15-25 days for bulk
Packaging Details :
Neutral Carton or Customized Package
Material :
Copper, Nickel-plated
Polarity :
Single pole (power) + auxiliary options
Connector Gender :

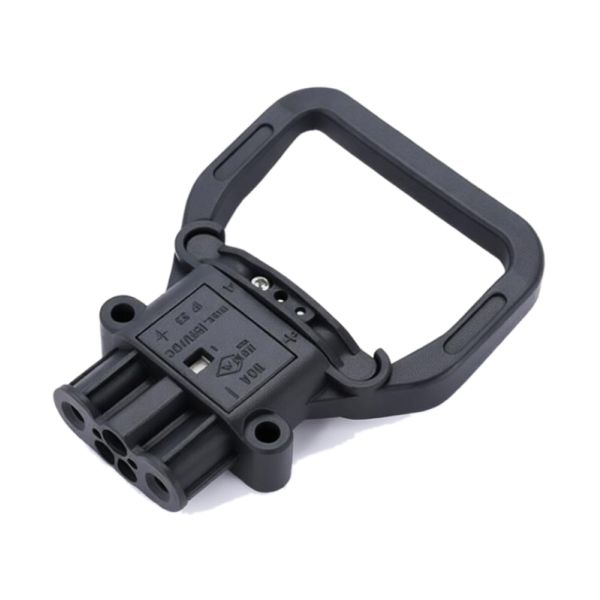

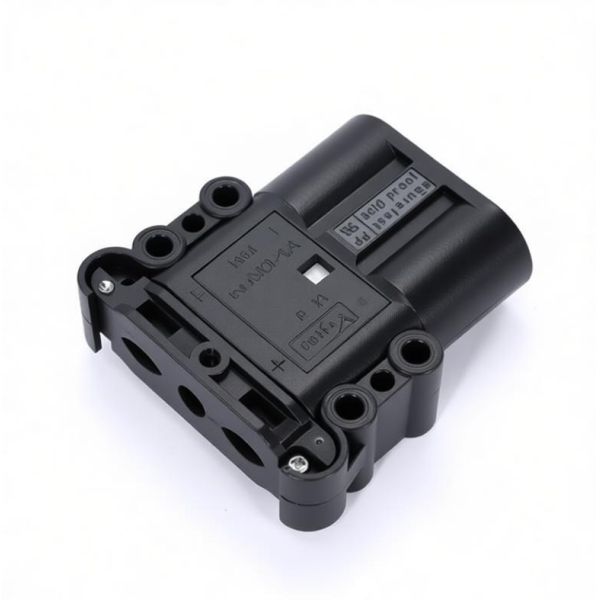

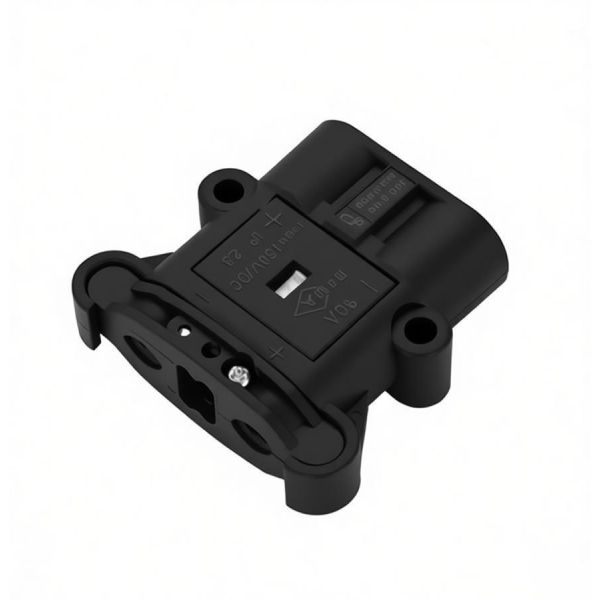

Male (Plug) / Female (Receptacle)
Mounting Type :
DIN rail / Bolt-on

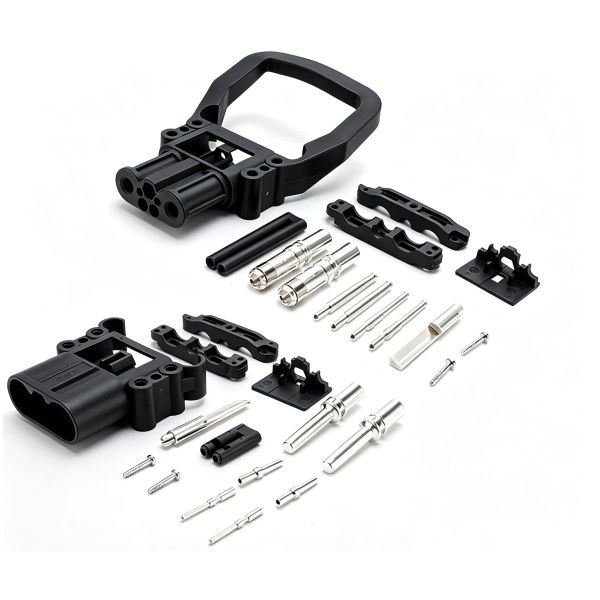

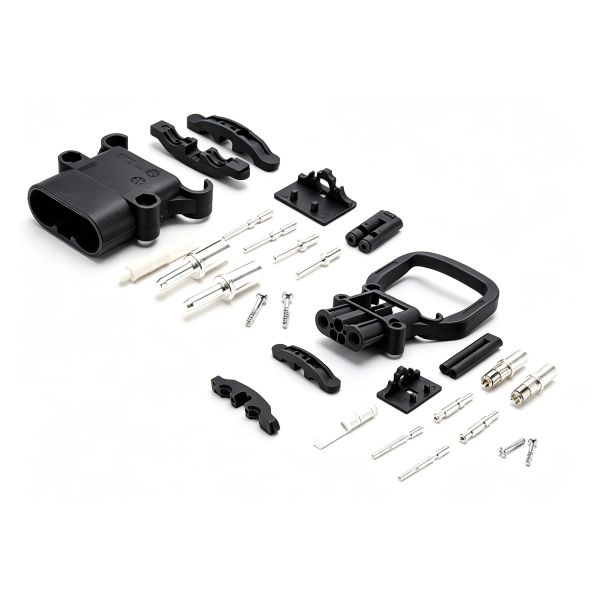

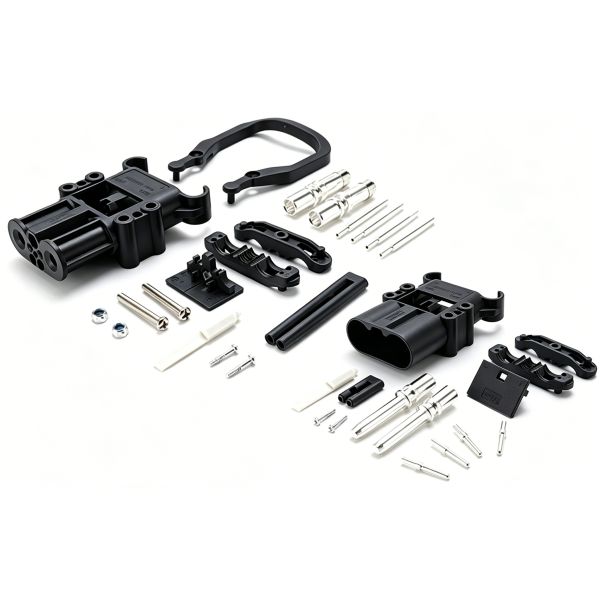

Kit Contents :

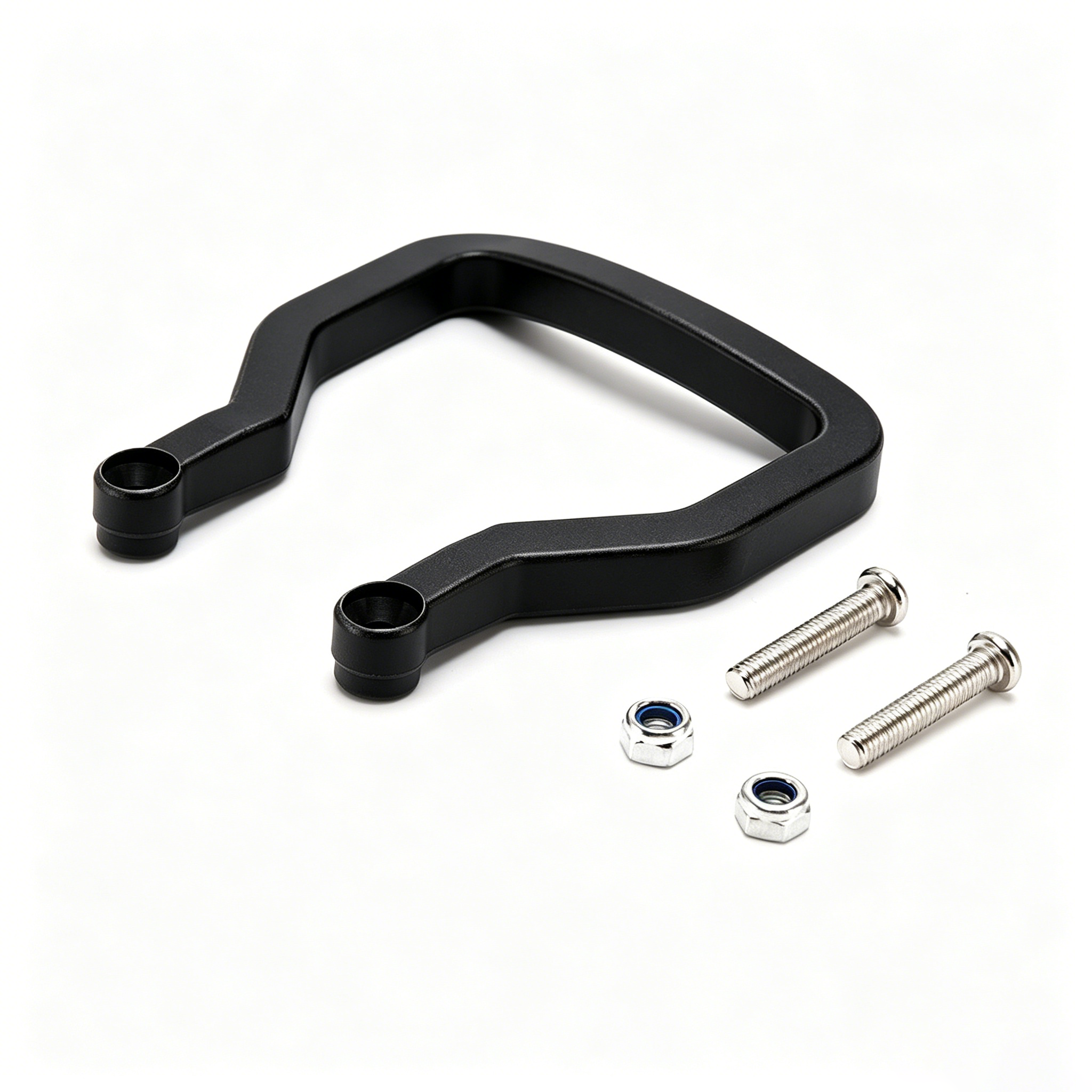

Male housing, Female housing with handle, Silver terminals, Auxiliary contacts, Mounting plates, Screws & accessories
Description

Product Definition

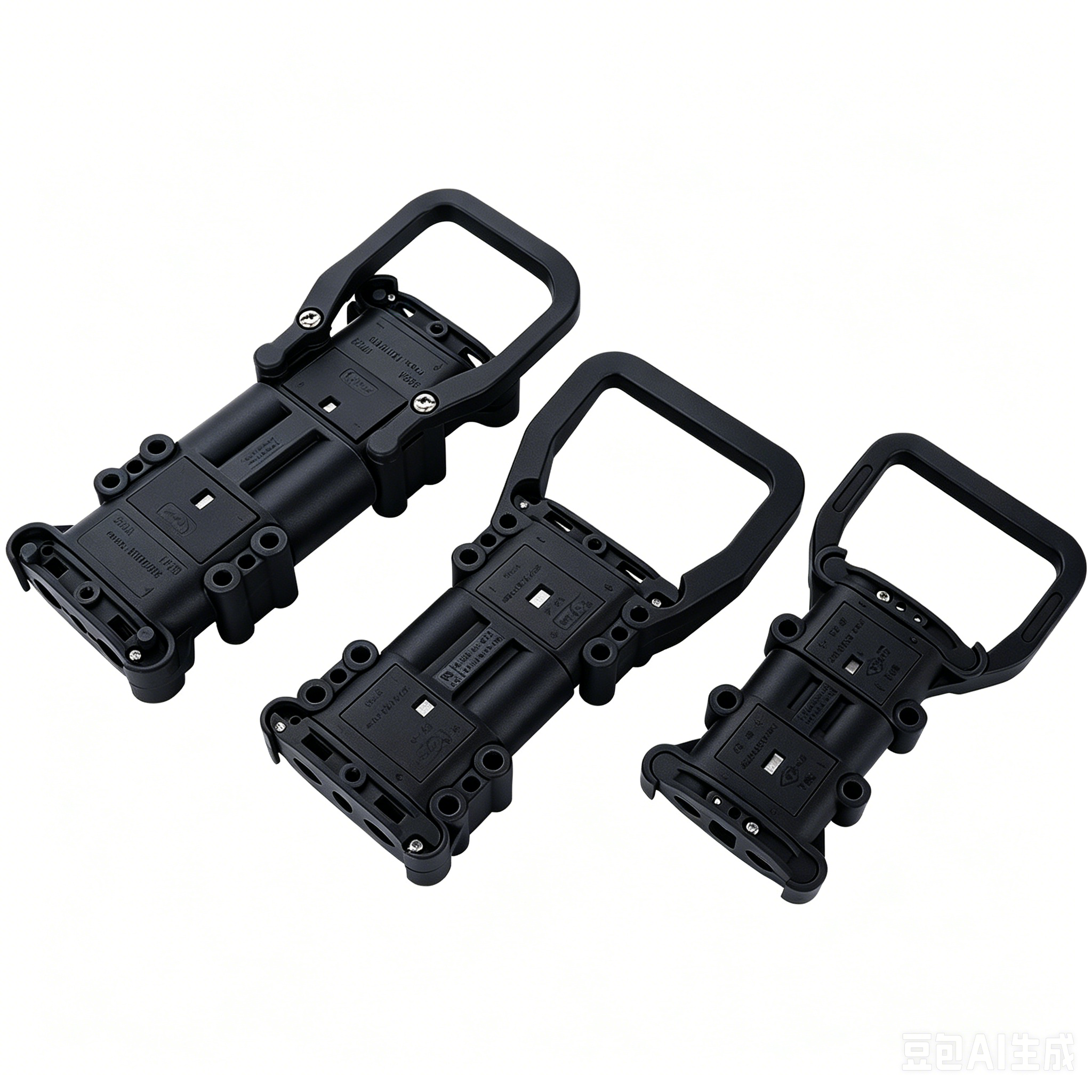

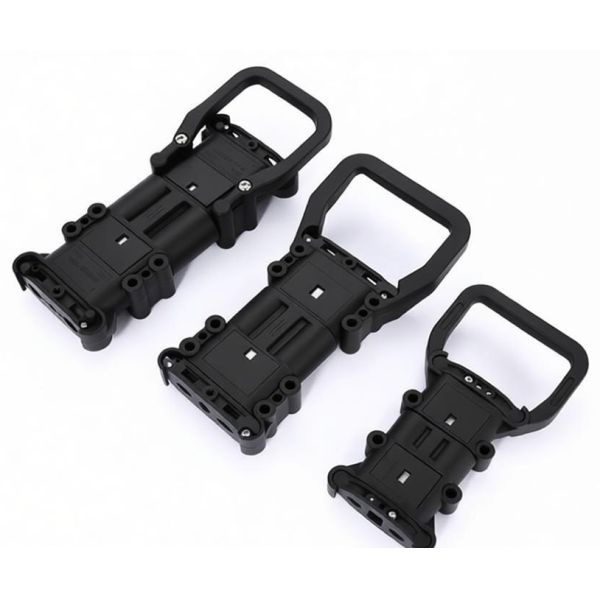

The REMA DIN Series Heavy Duty Battery Connector Kit is designed for industrial applications, providing reliable, high-current connections for electric forklifts and other battery-powered vehicles. Rated for 80A to 320A, this connector ensures safety, durability, and consistent performance under heavy load conditions.

REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts

Key Features & Benefits

High current capacity: 80A–320A suitable for multiple industrial battery configurations
Heavy duty construction with nickel-plated copper contacts for corrosion resistance
DIN mounting design for secure and standardized installation
Easy plug-and-play installation, reducing maintenance downtime
Compact and robust design for long-lasting reliability in harsh industrial environments

REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts

Technical Parameters

Parameter Specification
Series REMA (DIN Type)
Voltage Rating 12V–48V / 80V DC
Wire Range 80A: 6AWG–4AWG 160A: 4AWG–2AWG 320A: 1/0AWG–2/0AWG
Contact Material Nickel-plated Copper
Housing Material High-strength Engineering Plastic
Insulation Material High-grade plastic, UL94 V-0
Mounting DIN rail / Bolt-on
Operating Temperature -40°C to 85°C
IP Rating IP20 / IP40 (depending on assembly)
Standard DIN VDE 0623 / EN 1175
Applications Electric forklift, Industrial battery packs

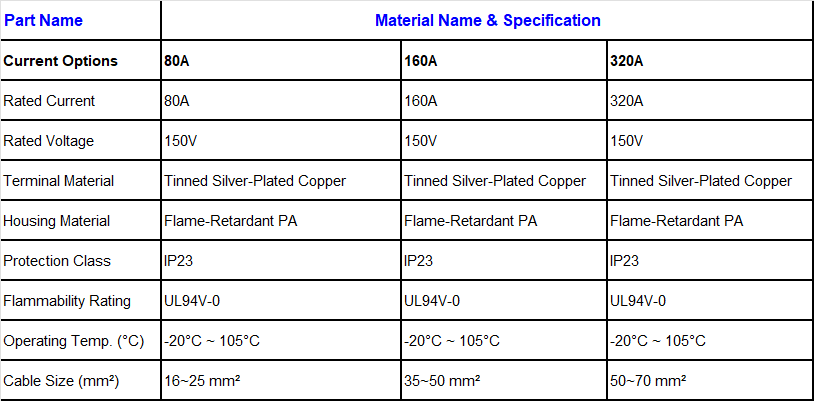

3 Type Current Comparisons

Object Values Comparisons
Current Options 80A 160A 320A
Rated Current 80A 160A 320A
Rated Voltage 150V 150V 150V
Terminal Material Tinned Silver-Plated Copper Tinned Silver-Plated Copper Tinned Silver-Plated Copper
Housing Material Flame-Retardant PA Flame-Retardant PA Flame-Retardant PA
Protection Class IP23 IP23 IP23
Flammability Rating UL94V-0 UL94V-0 UL94V-0
Operating Temp. (°C) -20°C ~ 105°C -20°C ~ 105°C -20°C ~ 105°C
Cable Size (mm²) 16~25 mm² 35~50 mm² 50~70 mm²

REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts

REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts

REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts

Application Scenoris

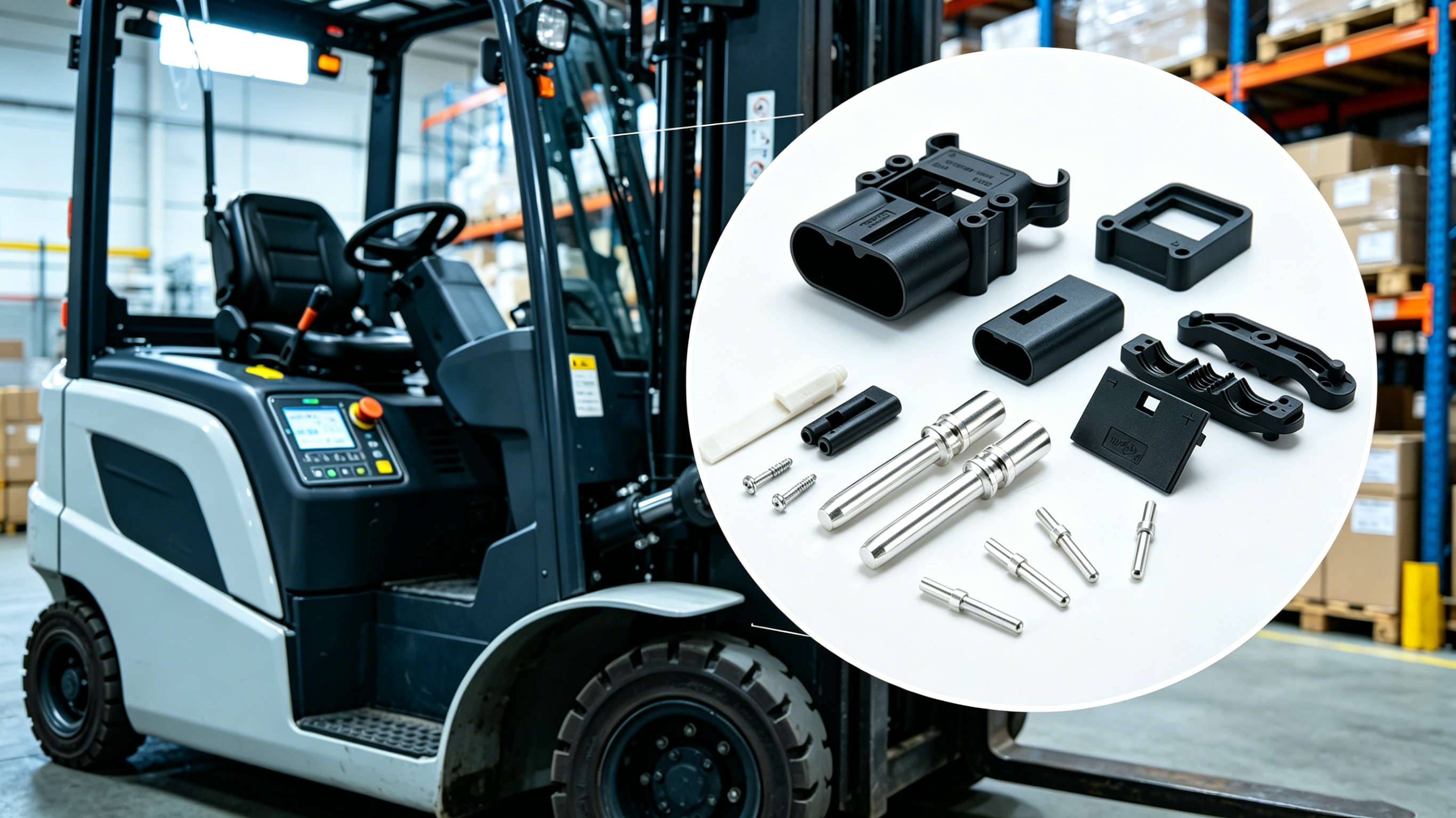

  • Electric forklifts and pallet trucks
  • Industrial battery packs and heavy-duty energy storage systems
  • Warehouse material handling equipment
  • Electric utility vehicles in logistics centers

REMA DIN Heavy Duty Battery Connector 80A-320A for Electric Forklifts

Frequently Asking Questions(FAQ)

Q1: What current ratings are available for this connector?
A1: 80A, 160A, and 320A.


Q2: Can this connector be used outdoors?
A2: It's suitable for indoor industrial environments. For outdoor use, additional IP-rated housing is recommended.


Q3: Is it compatible with standard REMA plugs?
A3: Yes, fully compatible with DIN-type REMA battery connectors.


Q4: What is the recommended installation method?
A4: DIN rail or bolt-on installation ensures secure and stable connection.


Q5: How resistant is it to corrosion?
A5: Nickel-plated copper contacts provide excellent corrosion resistance in industrial settings.
